Wireless Control Module (WCM) - With Diagnostics - Lancer Evolution
>>
Receiver Antenna Assembly
>>
Removal And Installation
Removal And Installation

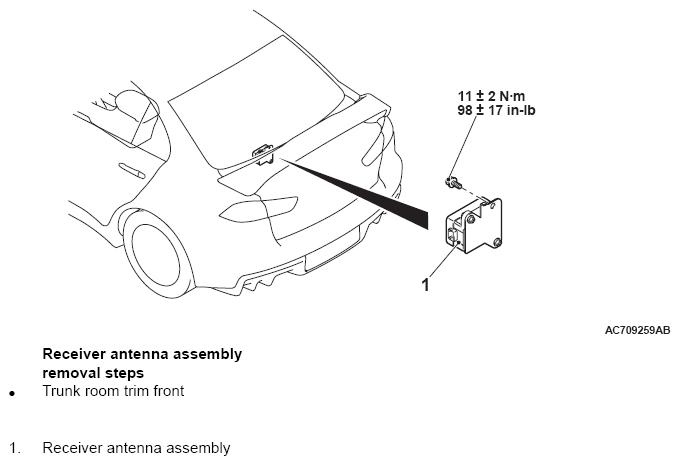

Fig 1: Removing/Installing Receiver Antenna Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
