Disassembly And Assembly: Notes

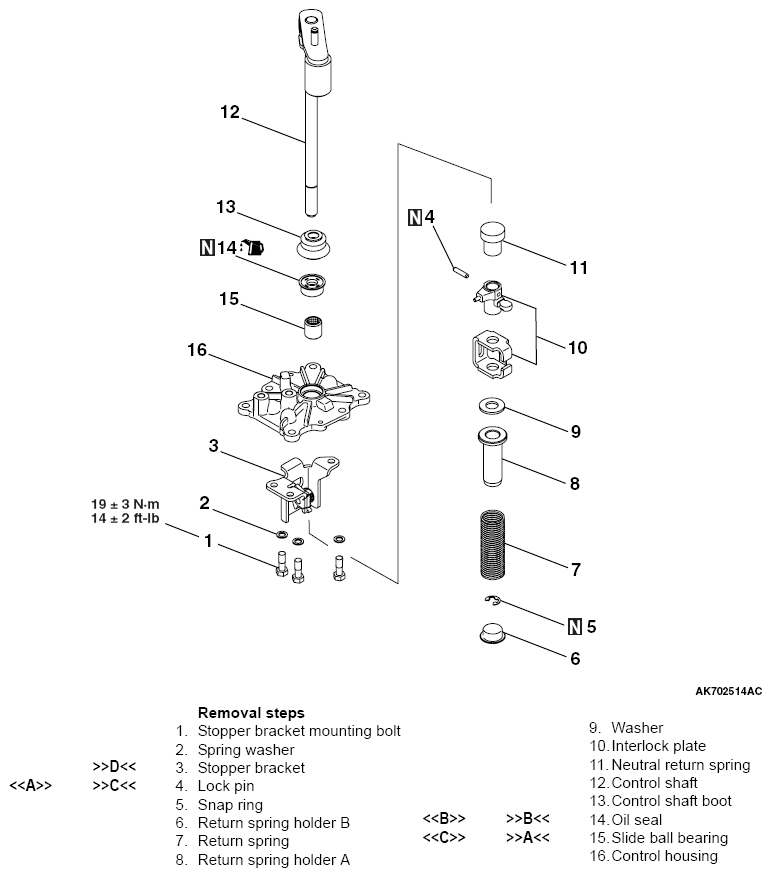

Fig 1: Disassembling/Assembling Control Housing With Torque Specification
G09641302Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
