>> C << Lock Pin Installation

Drive the lock pin all the way into place to the end face from the illustrated direction.

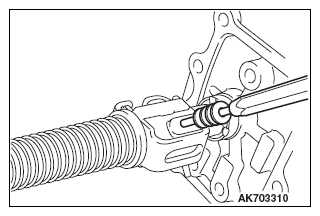

Fig 1: Driving Lock Pin

G09641308

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
