DTC B10C0, B10C1: Interior Temperature Sensor System: Notes

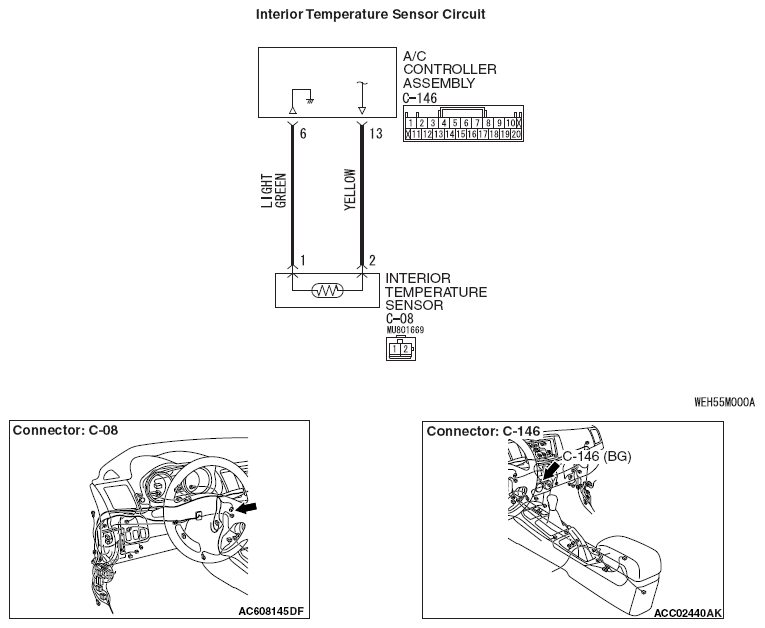

Fig 1: Interior Temperature Sensor Circuit Diagram

G09631240

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
