Disassembly And Assembly: Notes

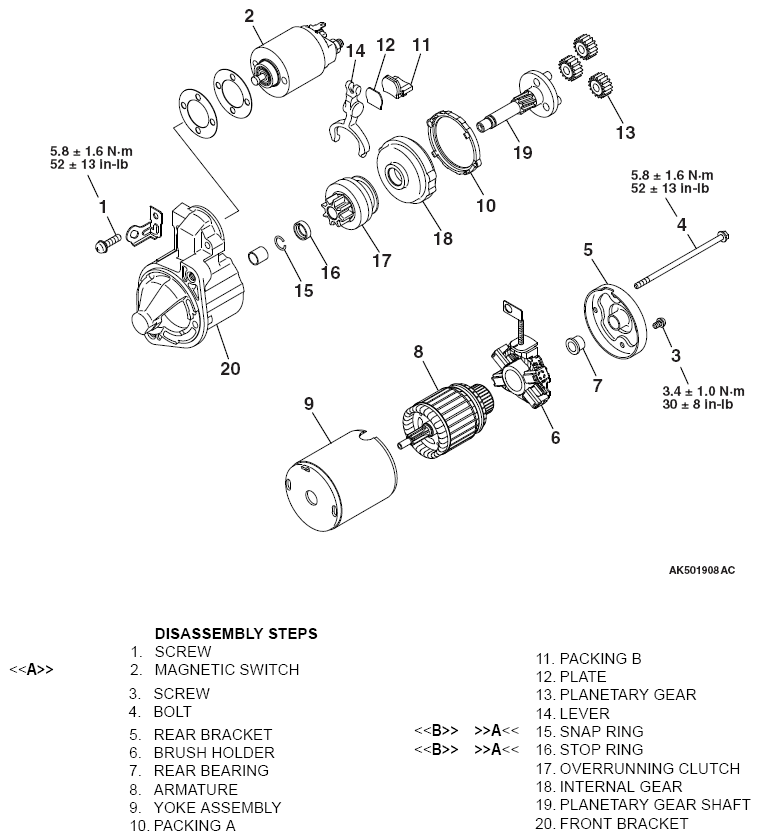

Fig 1: Disassembling/Assembling Starter Motor Assembly Components With Torque Specifications

G09625401

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
