Removal And Installation: Notes

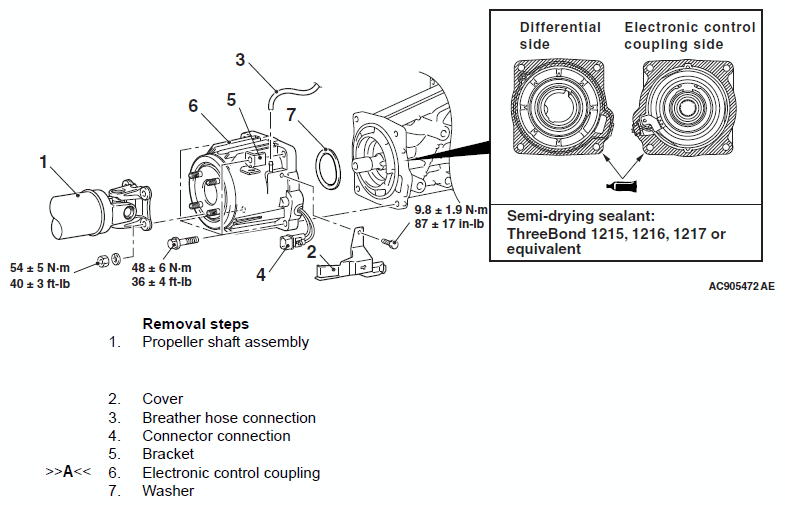

Fig 1: Electronic Control Coupling Components With Torque Specification
G09626801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
