DTC U1515: No-Bus activity error (LIN): Notes

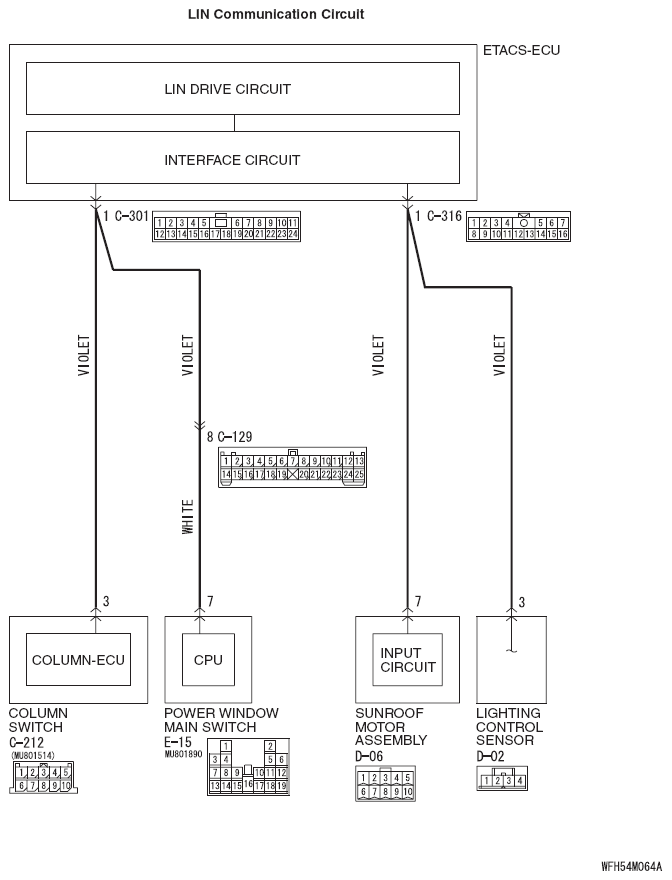

Fig 1: LIN Communication Circuit Diagram
G09653100Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

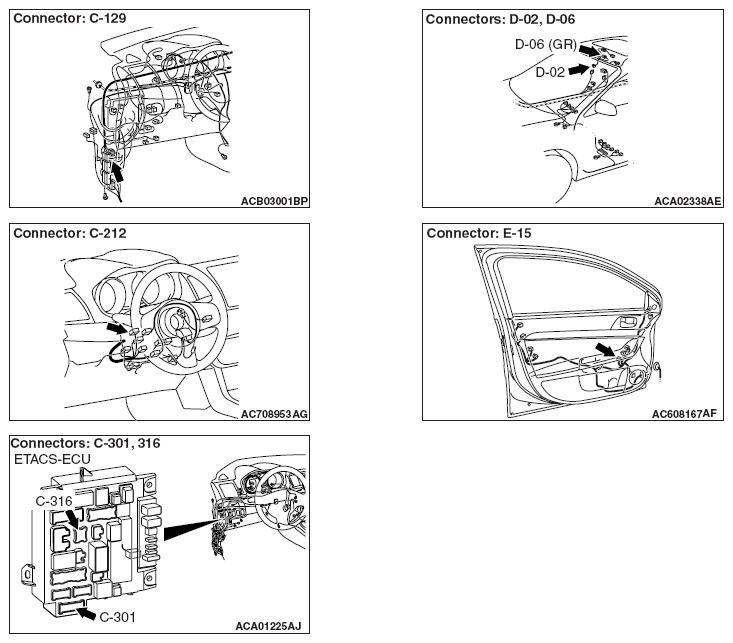

Fig 2: Locating LIN Communication Connector
G09653101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
