Removal And Installation: Notes

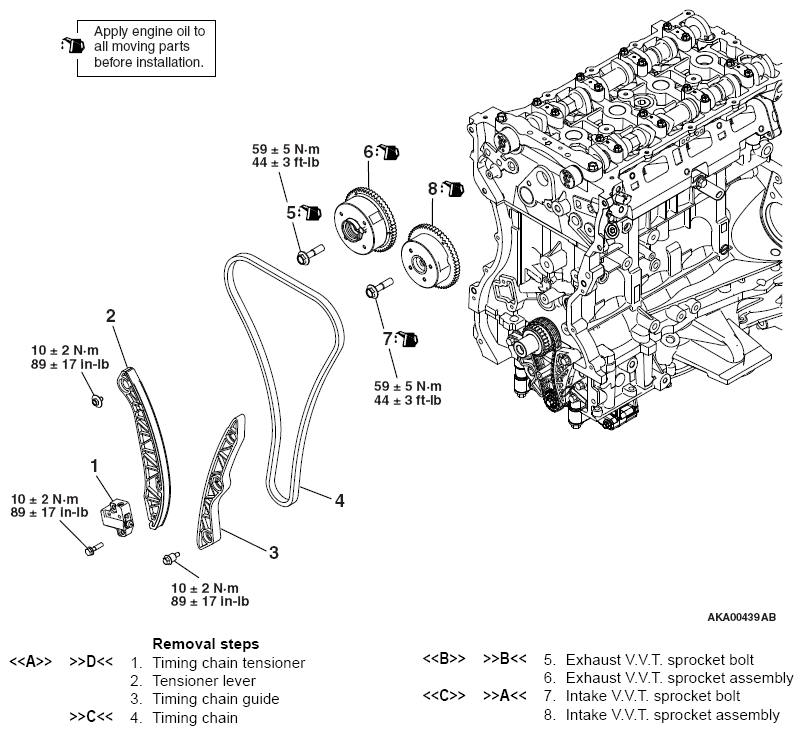

Fig 1: Timing Chain Components With Torque Specifications
G09619128Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
