Home >> Mitsubishi >> 2015 >> Lancer ES, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul (2.0L Engine Non-Turbo) - Lancer >> Intake Manifold And Fuel System >> Removal And Installation >> Notes

Removal And Installation: Notes

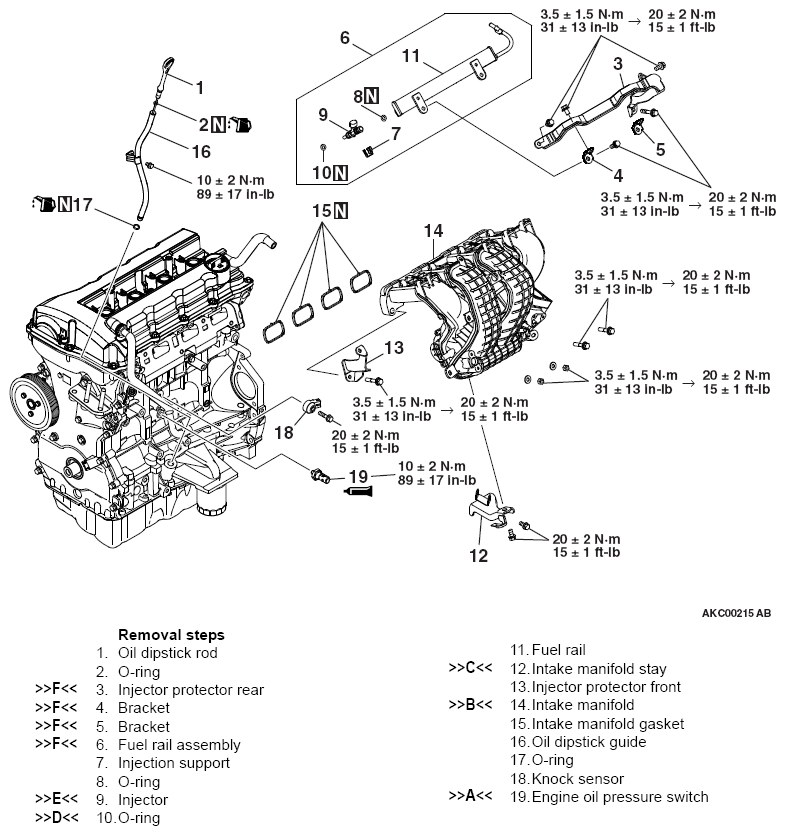

Fig 1: Intake Manifold And Fuel System Components With Torque Specifications
G09619101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
