Lancer ES, Standard Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations - Lancer
>>
Grounding Cable
Grounding Cable

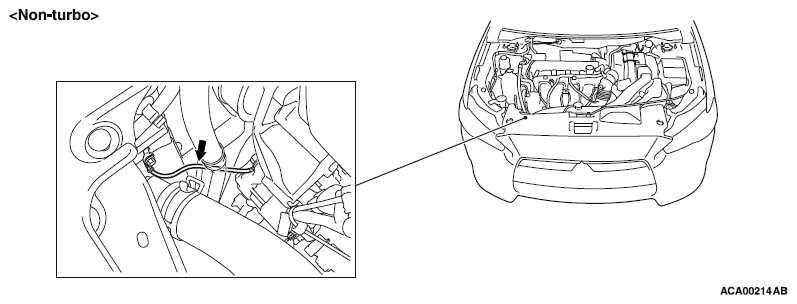

Fig 1: Locating Grounding Cable (Non-Turbo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

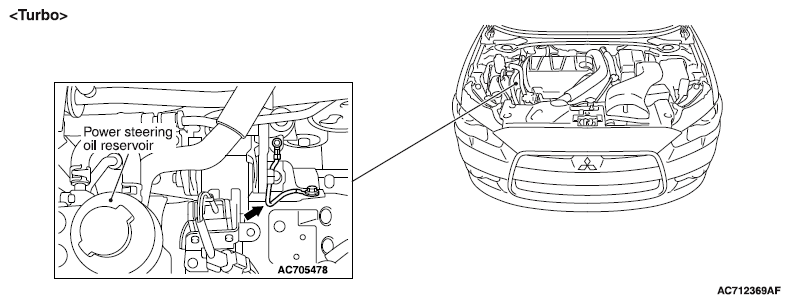

Fig 2: Locating Grounding Cable (Turbo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
