Garage Jack
CAUTION:
- Be sure to support the specified locations only. Otherwise, deformation of vehicle may occur.

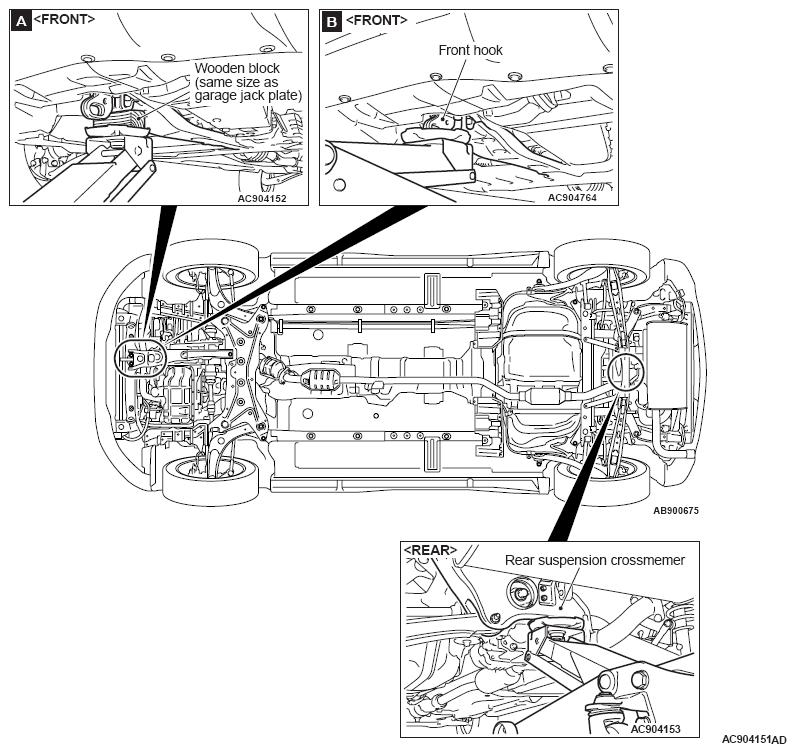

- When supporting the center member supporting points with the garage jack, raise the vehicle with inserting a wooden block (same size as garage jack plate) between the center member and the garage jack to prevent the towing hook interference. (Refer to figure A in the illustration). See Fig 1.
- When supporting the front hook with the garage jack, raise the vehicle so that the whole hook can put on the concave tray of garage jack. (Refer to figure B in illustration ). See Fig 1.
- Be careful not to damage the rear differential carrier assembly.
