Splice Locations: Index
This index shows the Figures where the splice locations are.
Splice location NO.
Reference
S001
Figure
S002
Figure
S003
Figure
S004
Figure
S005
Figure
S007
Figure
S008
Figure
S009
Figure
S010
Figure
S011
Figure
S012
Figure
S013
Figure
S014
Figure

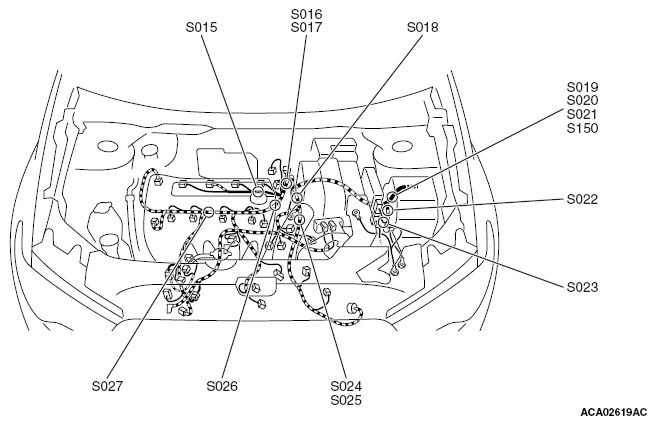

S015
Figure
S016
Figure
S017
Figure
S018
Figure
S019
Figure
S020
Figure
S021
Figure
S022
Figure
S023
Figure
S024
Figure
S025
Figure
S026
Figure
S027
Figure

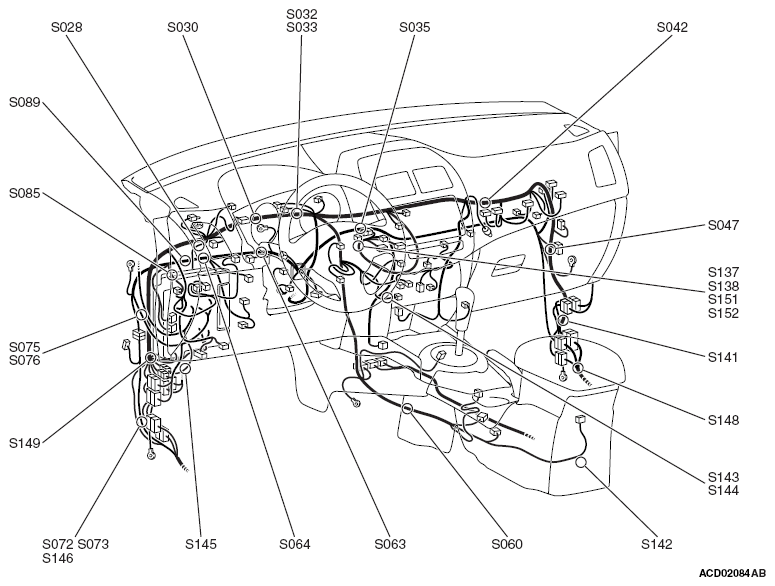

S028
Figure
S029
Figure
S030
Figure
S031
Figure
S032
Figure
S033
Figure
S034
Figure
S035
Figure
S037
Figure
S039
Figure
S040
Figure
S041
Figure
S042
Figure
S043
Figure
S044
Figure
S045
Figure
S047
Figure
S051
Figure
S052
Figure
S053
Figure
S054
Figure
S055
Figure
S056
Figure
S057
Figure
S058
Figure
S059
Figure
S060
Figure
S062
Figure
S063
Figure
S064
Figure
S065
Figure
S066
Figure
S068
Figure
S069
Figure
S070
Figure
S072
Figure
S073
Figure
S074
Figure
S075
Figure
S076
Figure
S077
Figure
S078
Figure
S079
Figure
S081
Figure
S083
Figure
S084
Figure
S085
Figure
S086
Figure
S087
Figure
S088
Figure
S089
Figure
S090
Figure
S091
Figure
S092
Figure
S093
Figure

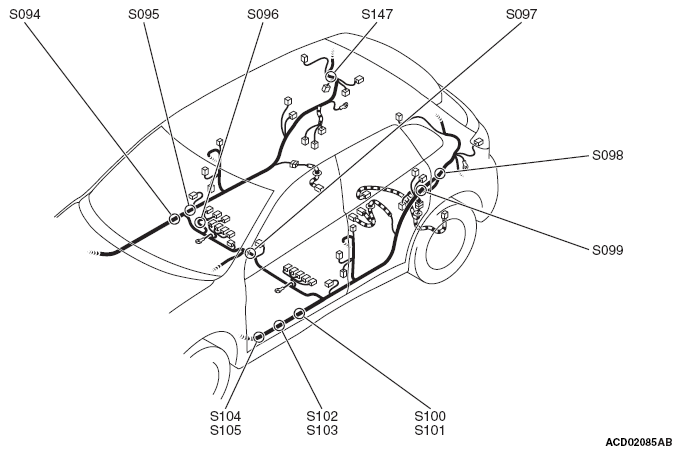

S094
Figure
S095
Figure
S096
Figure
S097
Figure
S098
Figure
S099
Figure
S100
Figure
S101
Figure
S102
Figure
S103
Figure
S104
Figure
S105
Figure
S106
Figure
(1)
Figure
(2)
S107
Figure
(1)
Figure
(2)
S108
Figure
(1)
Figure
(2)
S109
Figure
(1)
Figure
(2)
S110
Figure
(1)
Figure
(2)
S111
Figure
(1)
Figure
(2)
S112
Figure
(1)
Figure
(2)
S113
Figure
(1)
Figure
(2)
S114
Figure
S115
Figure

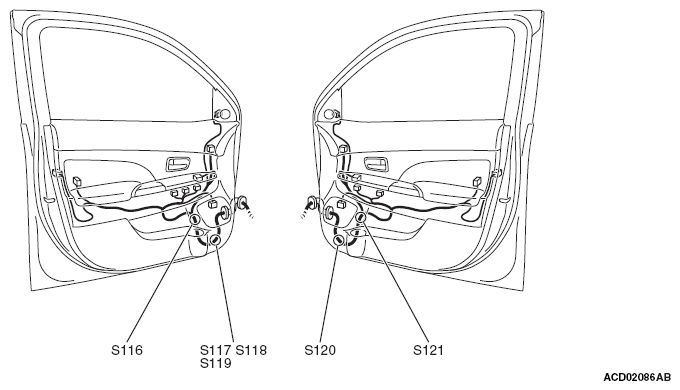

S116
Figure
S117
Figure
S118
Figure
S119
Figure
S120
Figure
S121
Figure

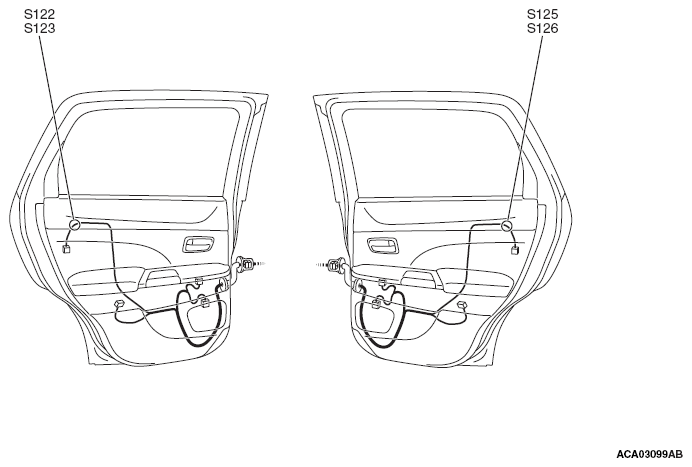

S122
Figure
S123
Figure
S125
Figure
S126
Figure

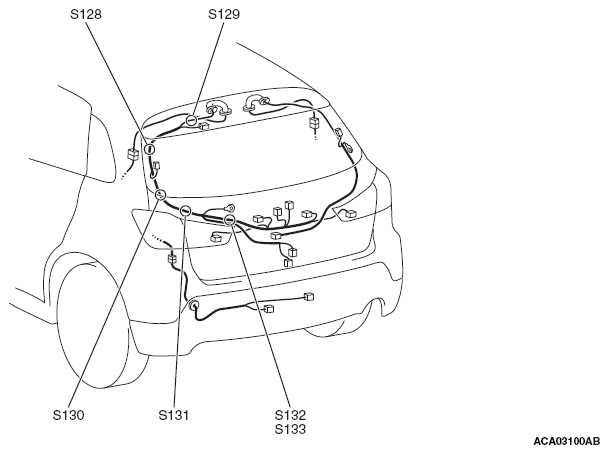

S128
Figure
S129
Figure
S130
Figure
S131
Figure
S132
Figure
S133
Figure
S134
Figure
S135
Figure
S136
Figure
S137
Figure
S138
Figure
S141
Figure
S142
Figure
S143
Figure
S144
Figure
S145
Figure
S146
Figure
S147
Figure
S148
Figure
S149
Figure
S150
Figure
S151
Figure
S152
Figure
(1)

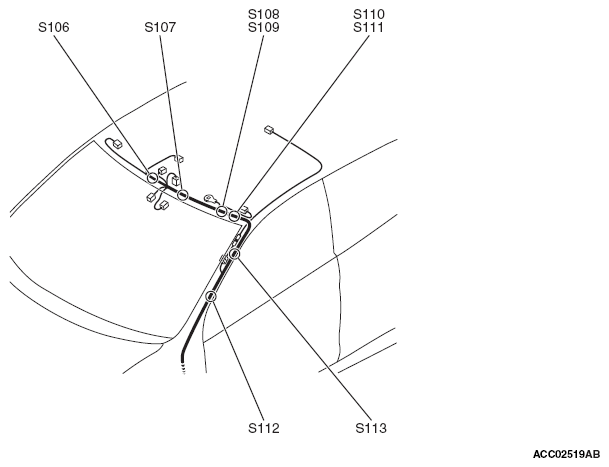

Vehicles without panorama roof
(2)

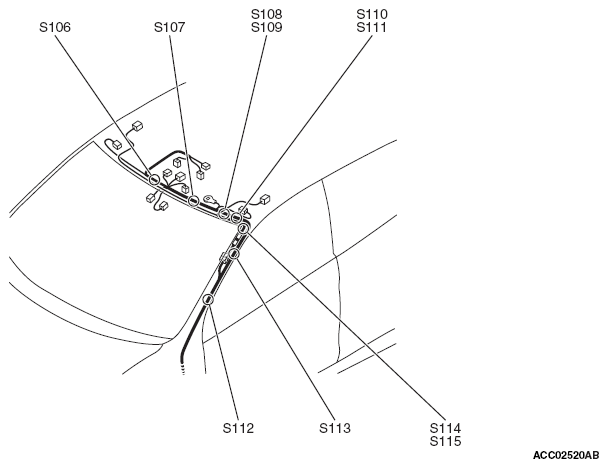

Vehicles with panorama roof
