Disassembly And Assembly: Notes

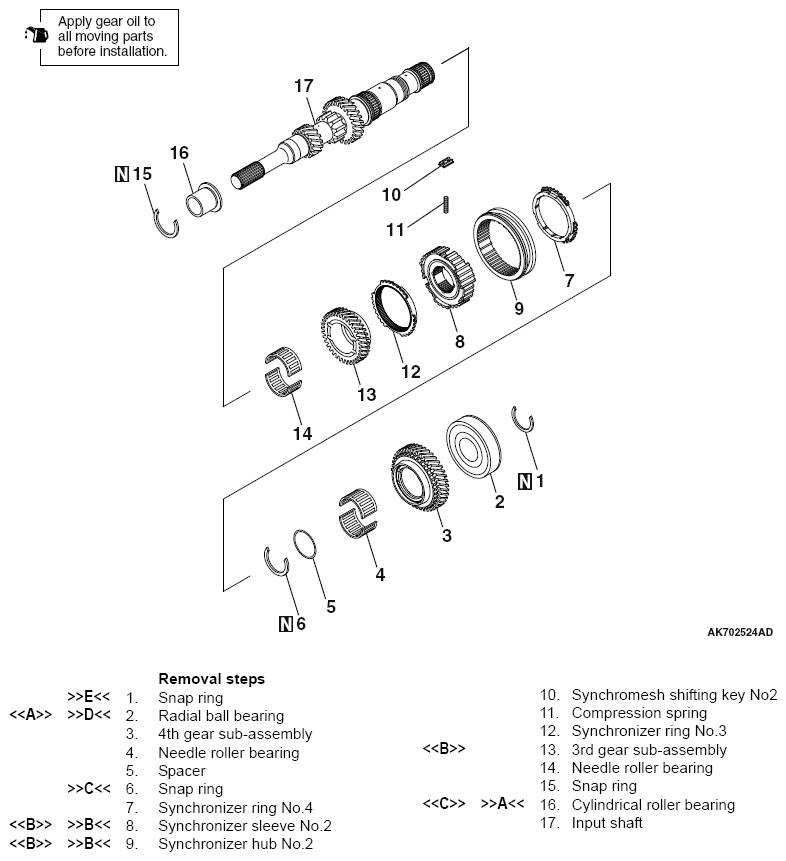

Fig 1: Exploded View Of Input Shaft

G09669562

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MD998917: Bearing remover
MB990560: Rear axle shaft bearing remover
MD998812: Installer cap
MD998813: Installer-100
MD998818: Installer adapter
MD998820: Installer adapter
