Removal And Installation: Notes

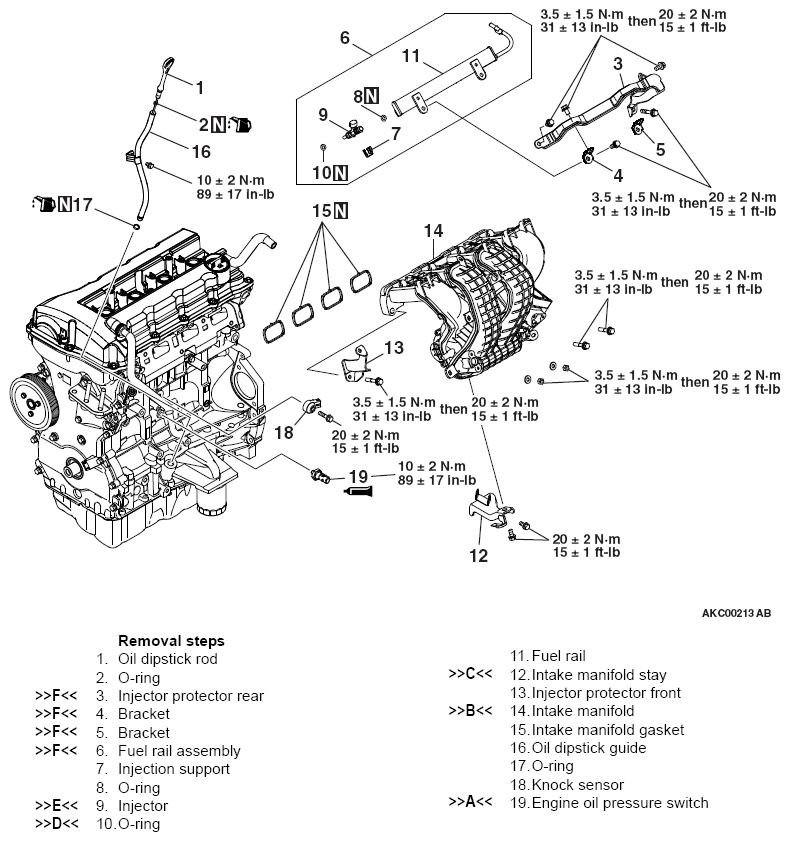

Fig 1: Removing/Installing Intake Manifold And Fuel System Components With Torque Specification
G09668180Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
