Tire Pressure Monitoring System (TPMS)

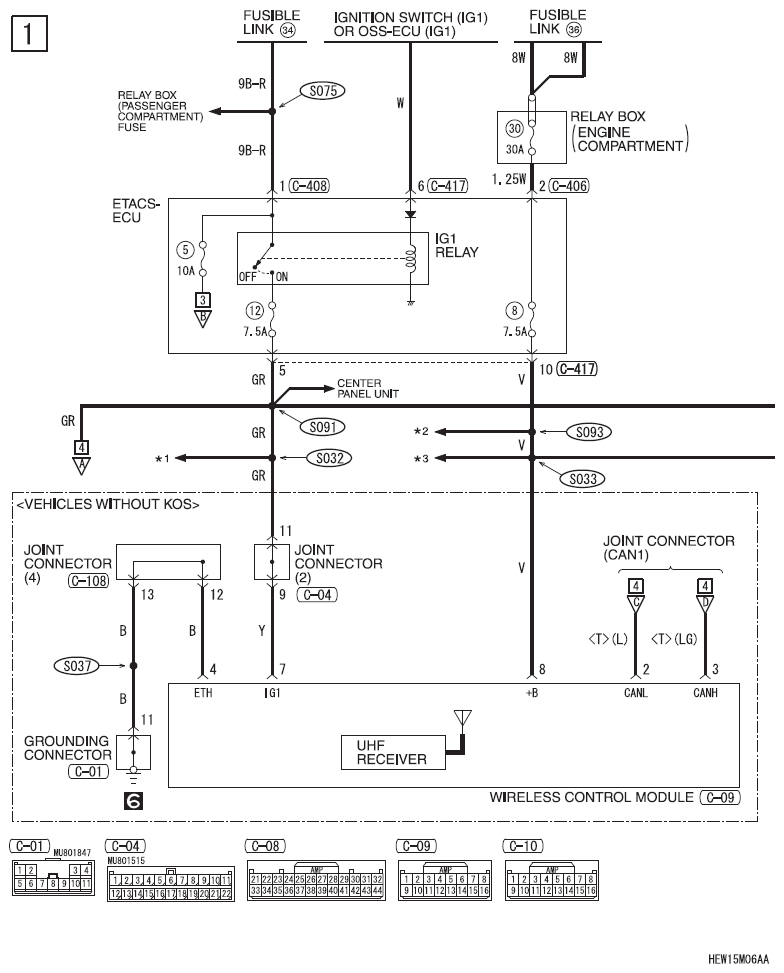

Fig 1: Tire Pressure Monitoring System (TPMS) - Circuit Diagram (1 Of 4)
G09622238

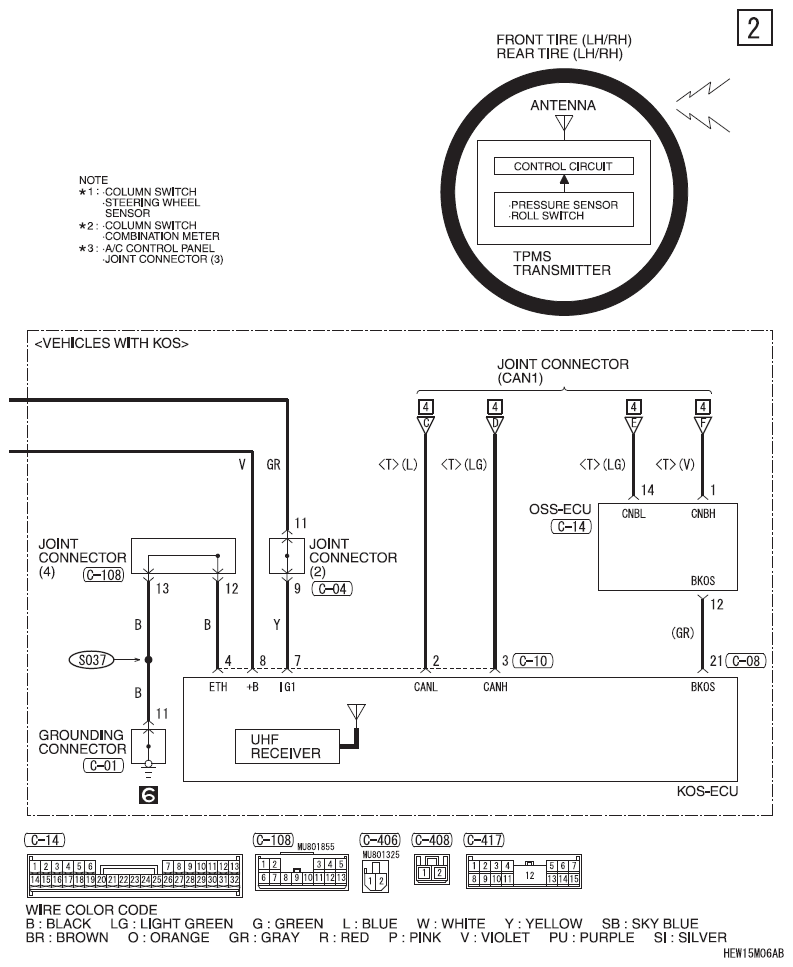

Fig 2: Tire Pressure Monitoring System (TPMS) - Circuit Diagram (2 Of 4)
G09622239

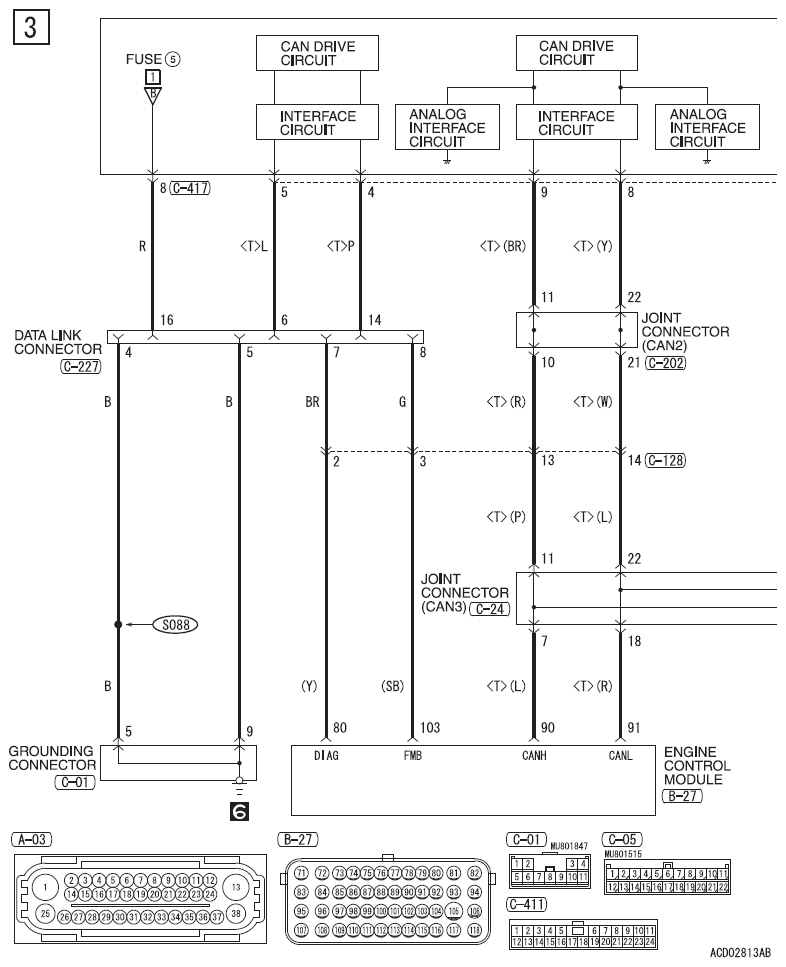

Fig 3: Tire Pressure Monitoring System (TPMS) - Circuit Diagram (3 Of 4)
G09622240

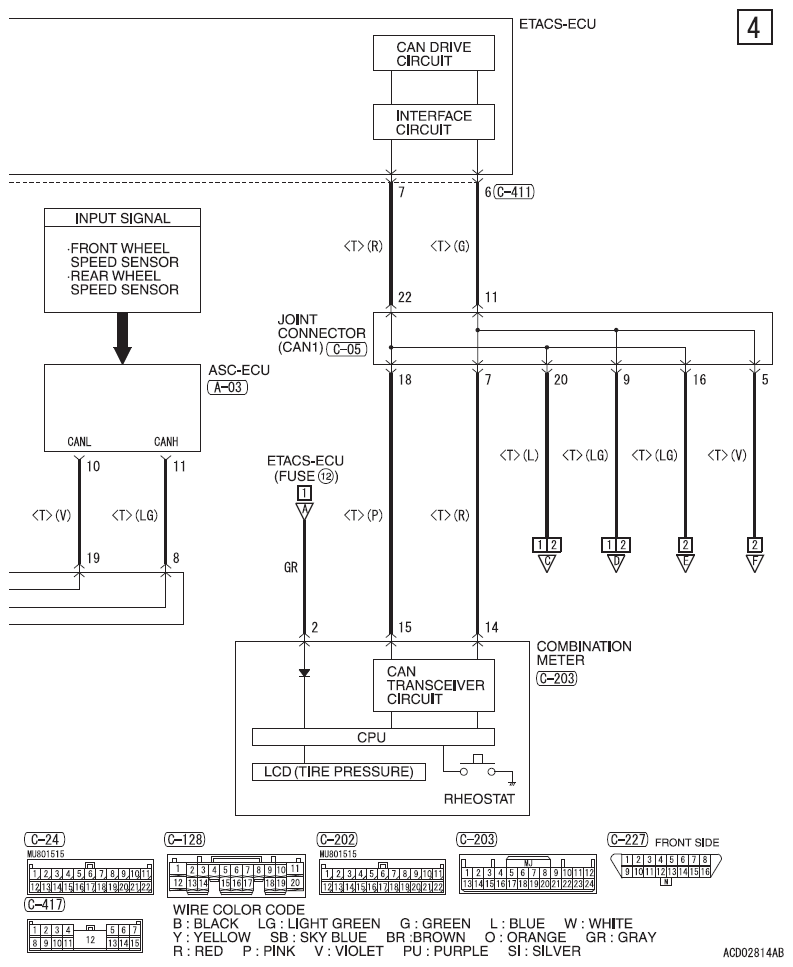

Fig 4: Tire Pressure Monitoring System (TPMS) - Circuit Diagram (4 Of 4)
G09622241
