Theft-Alarm System

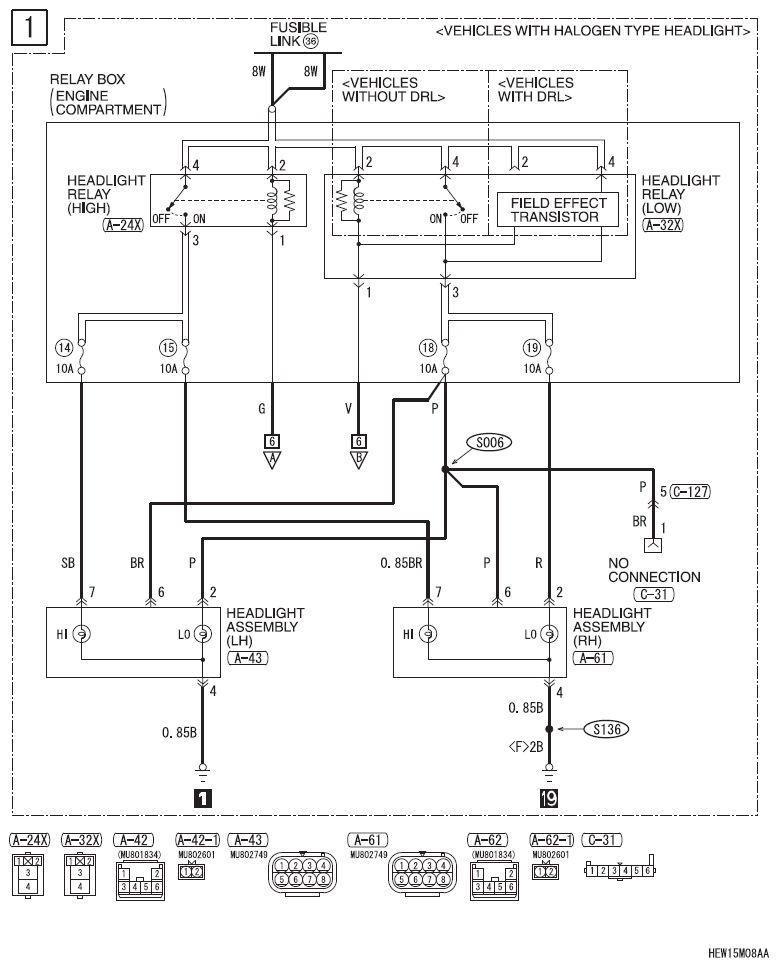

Fig 1: Theft-Alarm System - Circuit Diagram (1 Of 8)

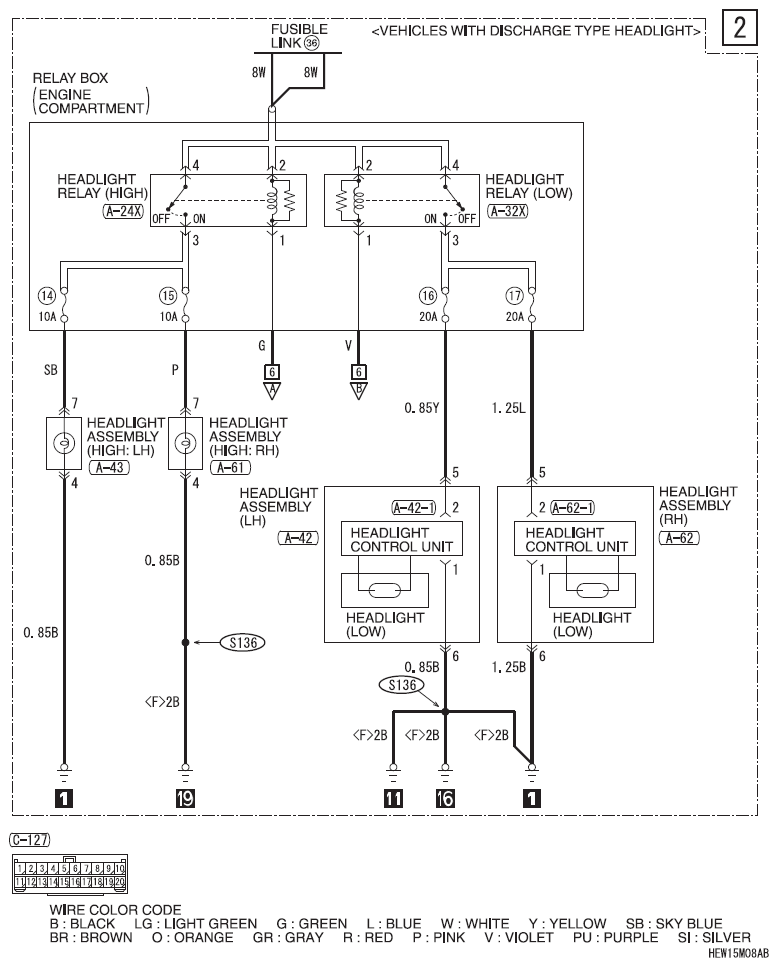

Fig 2: Theft-Alarm System - Circuit Diagram (2 Of 8)

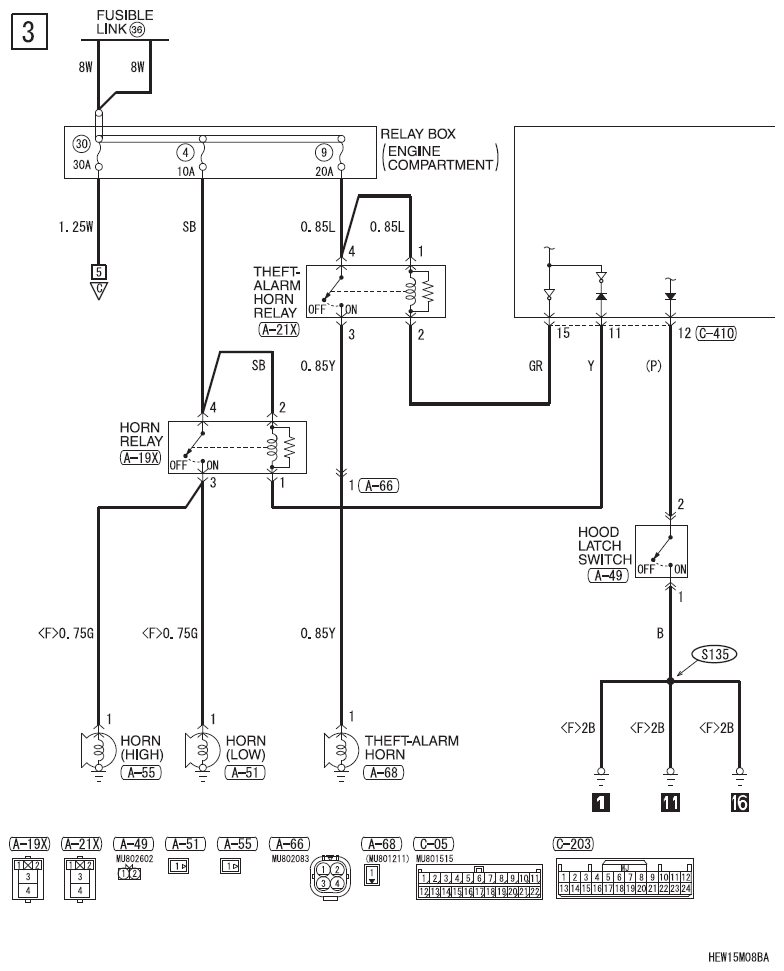

Fig 3: Theft-Alarm System - Circuit Diagram (3 Of 8)

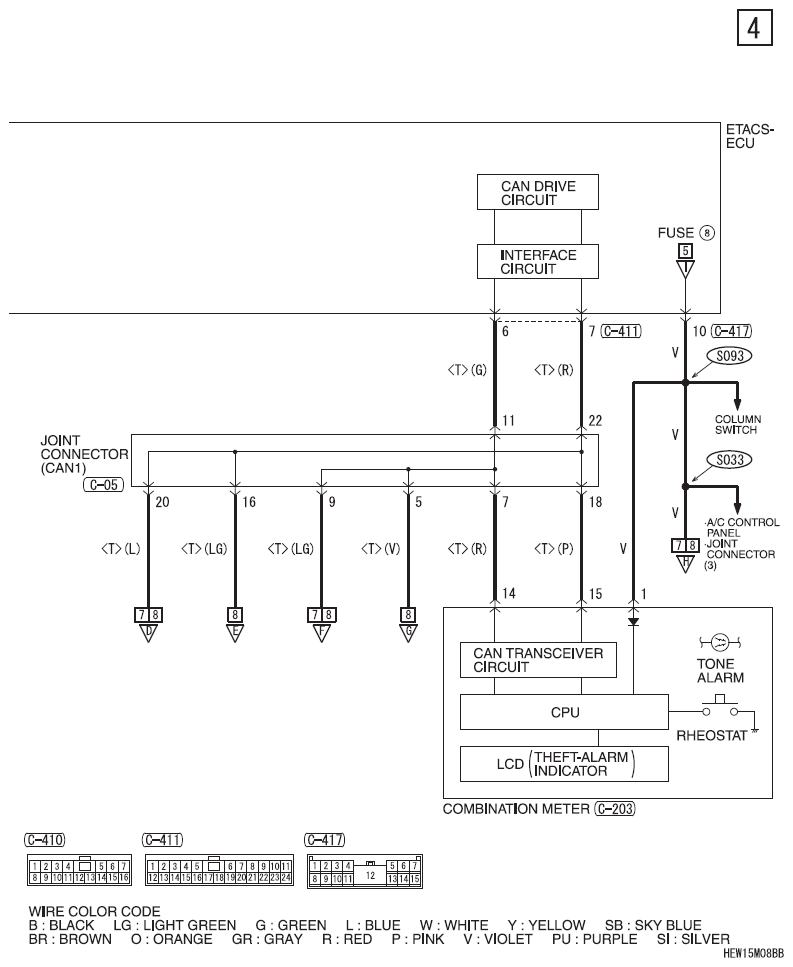

Fig 4: Theft-Alarm System - Circuit Diagram (4 Of 8)

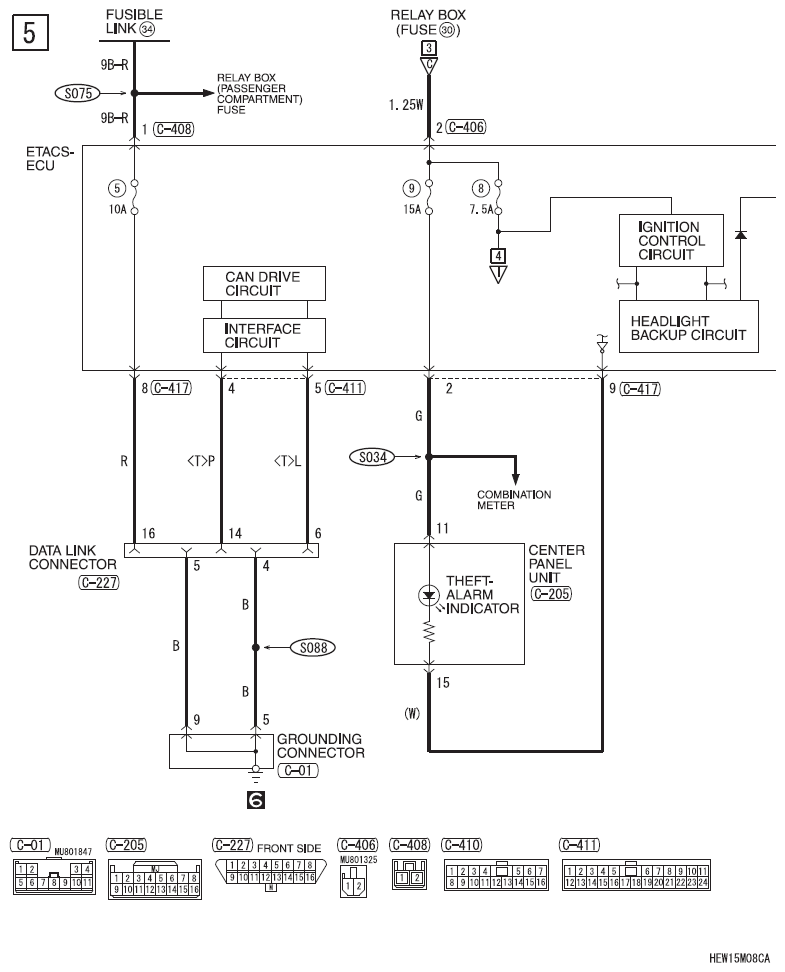

Fig 5: Theft-Alarm System - Circuit Diagram (5 Of 8)

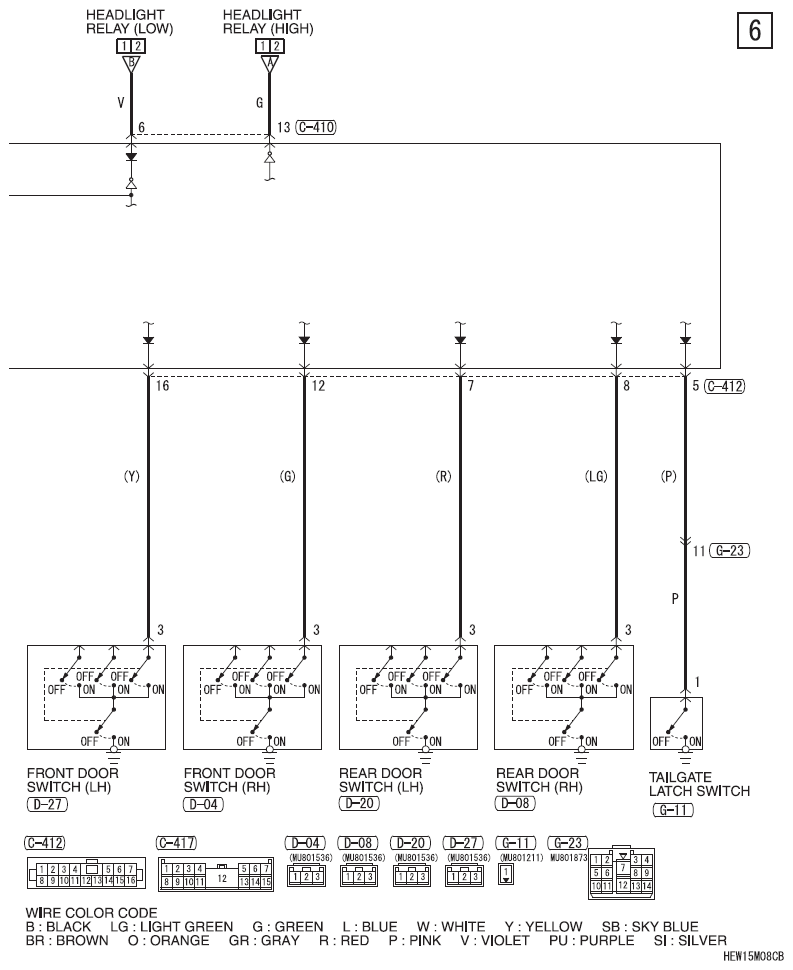

Fig 6: Theft-Alarm System - Circuit Diagram (6 Of 8)

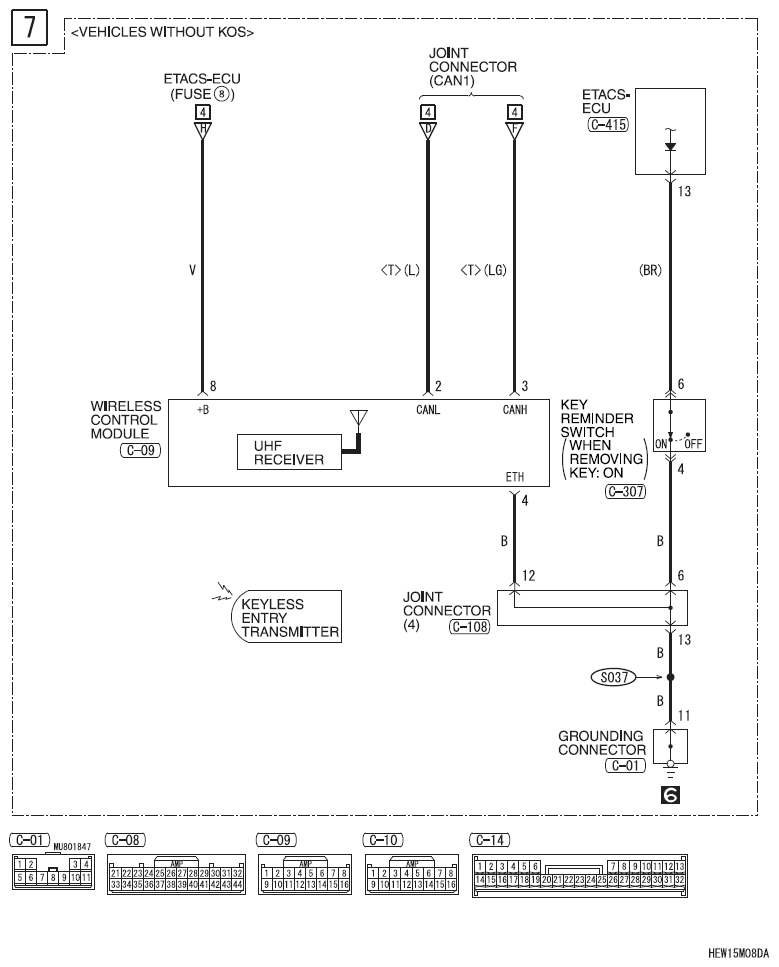

Fig 7: Theft-Alarm System - Circuit Diagram (7 Of 8)

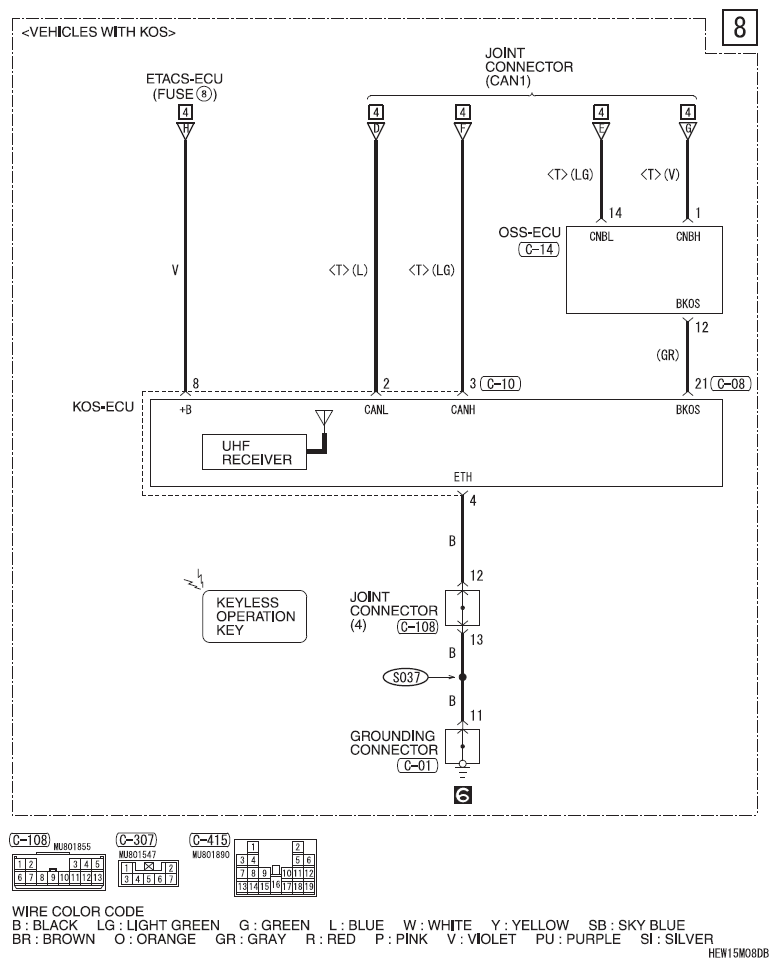

Fig 8: Theft-Alarm System - Circuit Diagram (8 Of 8)
