Circuit Diagrams: Stoplight

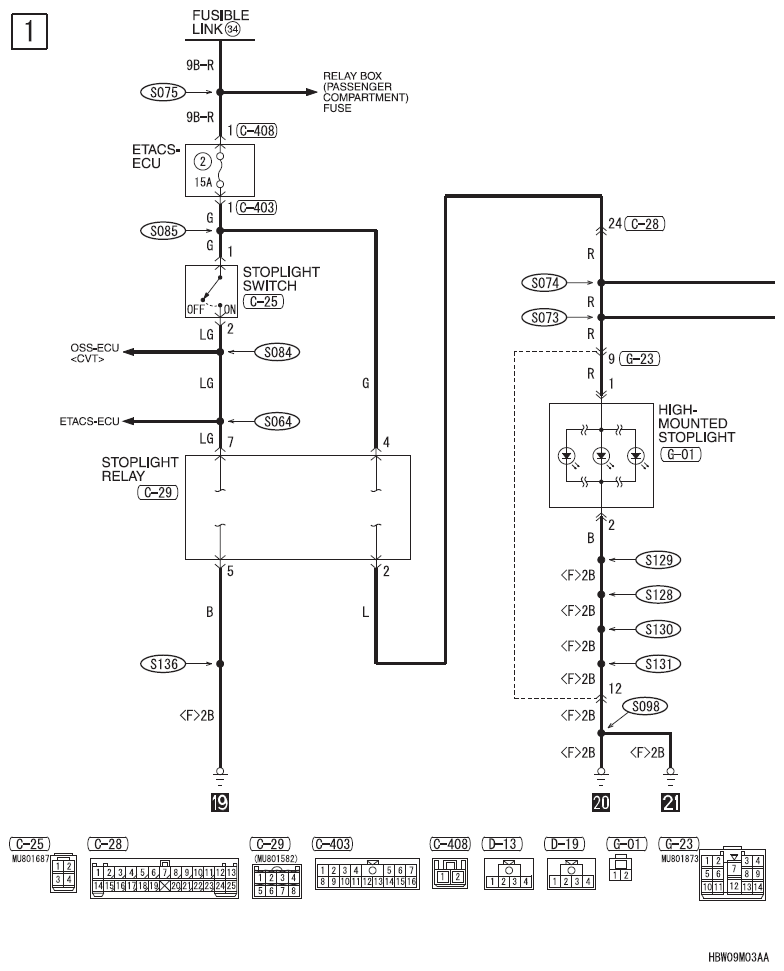

Fig 1: Stoplight - Circuit Diagram (1 Of 2)

G09622077

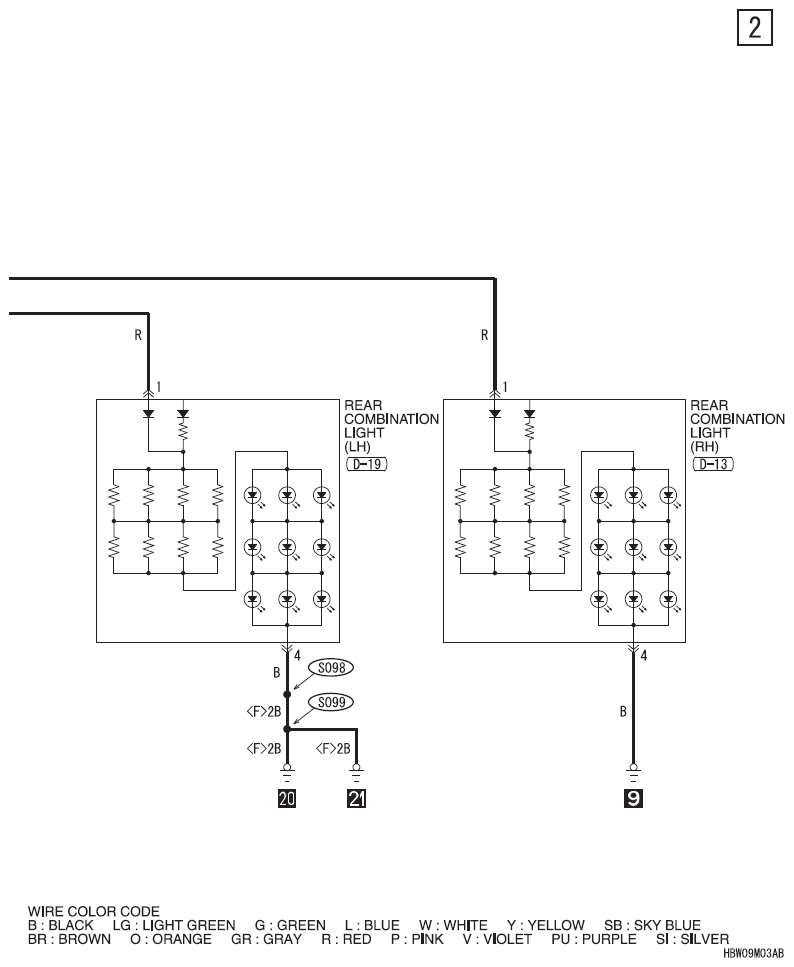

Fig 2: Stoplight - Circuit Diagram (2 Of 2)

G09622078
