Mitsubishi
>>
2014
>>
RVR ES
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Circuit Diagrams
>>
Spare Connector (For Navigation System)
Spare Connector (For Navigation System)

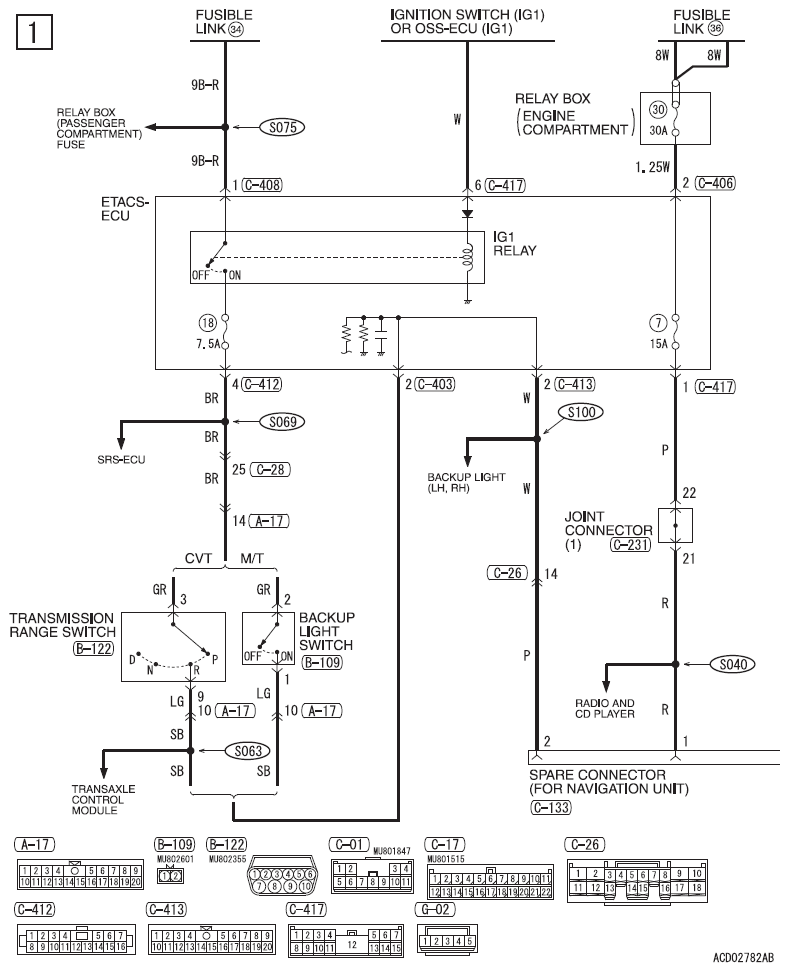

Fig 1: Spare Connector (For Navigation System) - Circuit Diagram (1 Of 2)

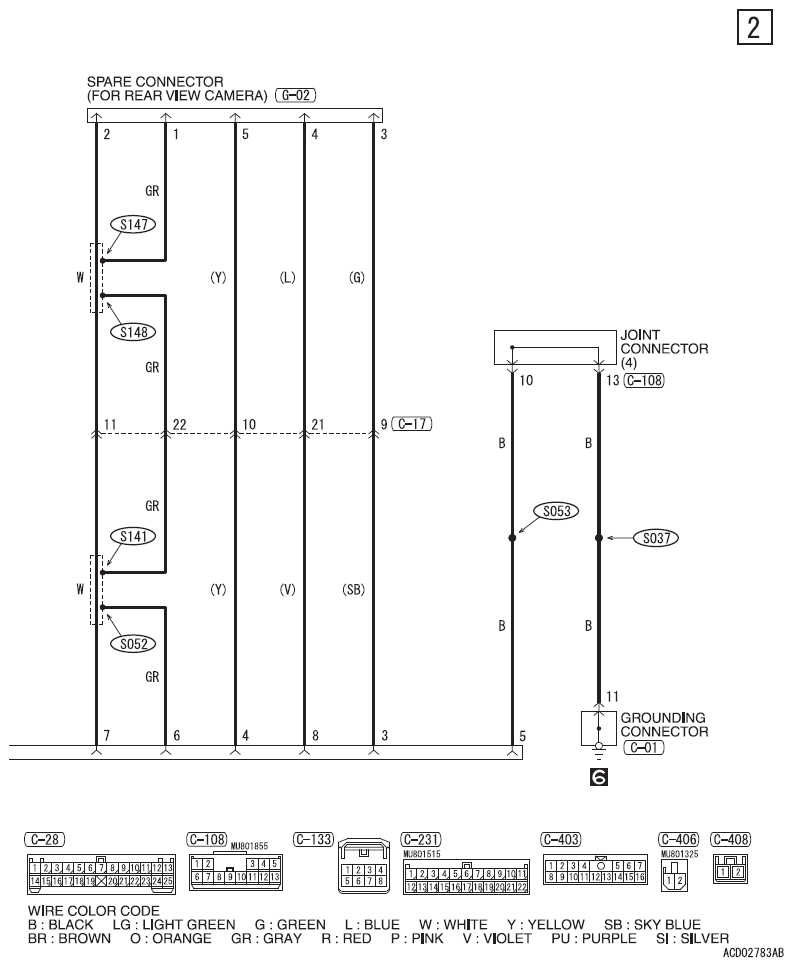

Fig 2: Spare Connector (For Navigation System) - Circuit Diagram (2 Of 2)
