Rear Window Defogger

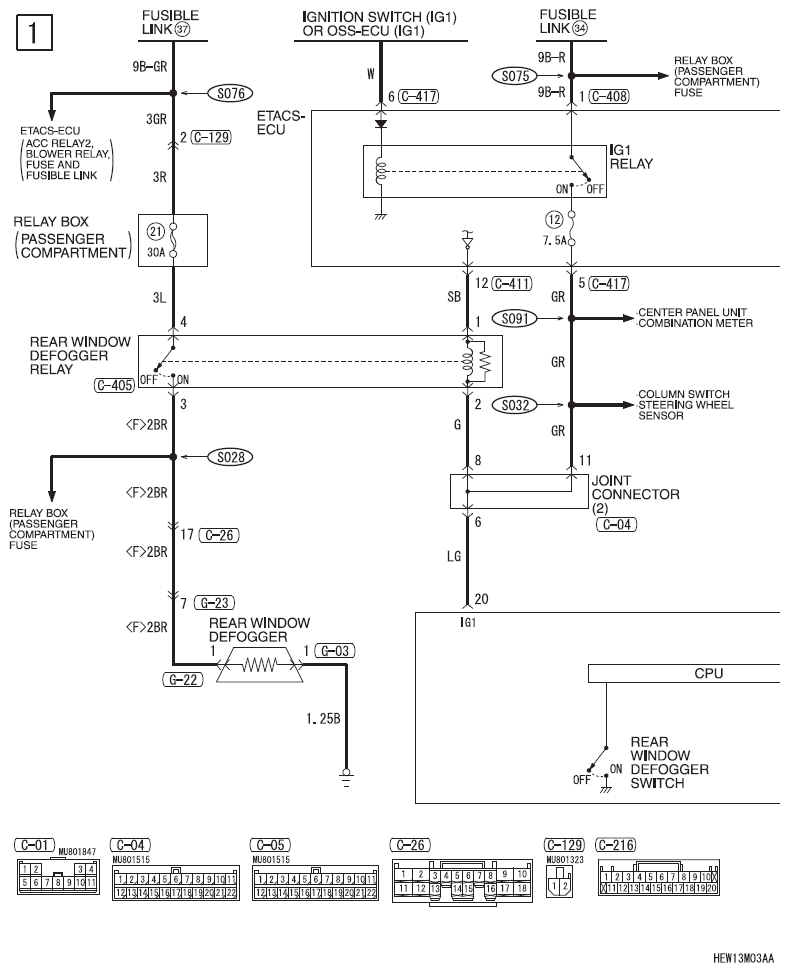

Fig 1: Rear Window Defogger - Circuit Diagram (1 Of 2)

G09622135

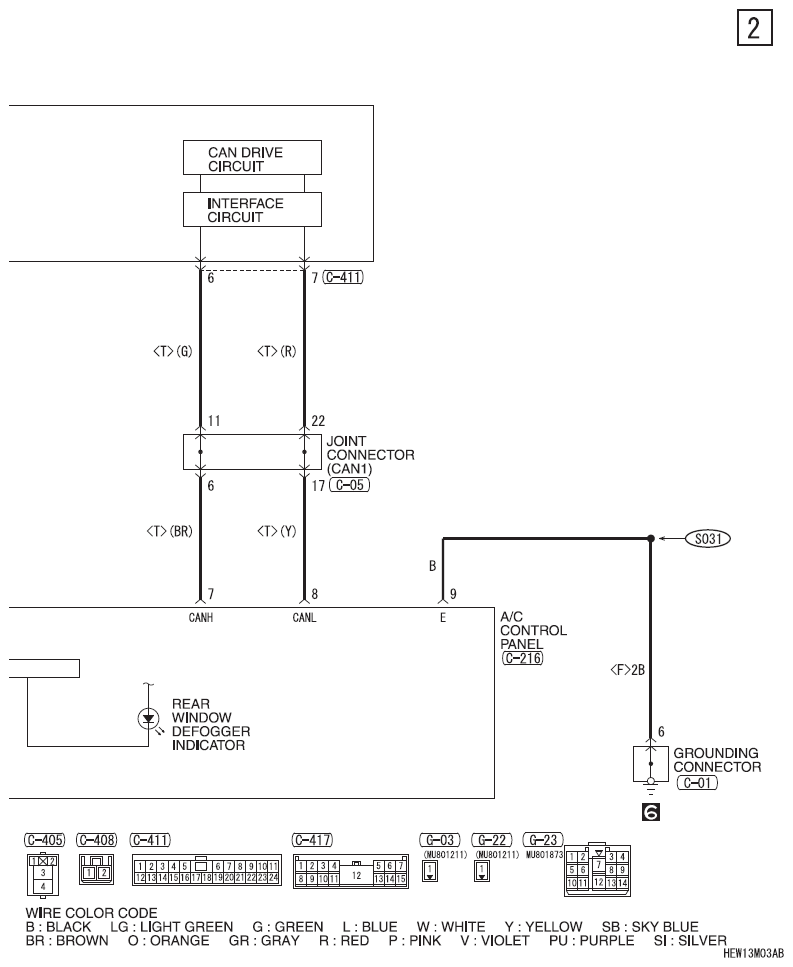

Fig 2: Rear Window Defogger - Circuit Diagram (2 Of 2)

G09622136
