Rear View Camera

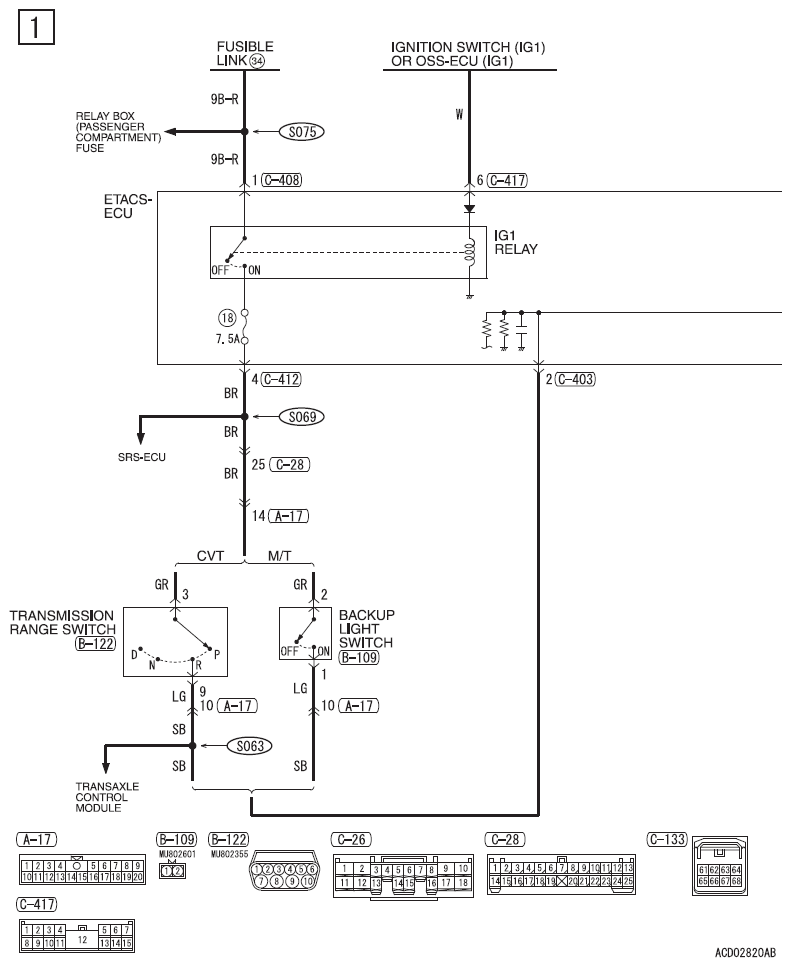

Fig 1: Rear View Camera - Circuit Diagram (1 Of 4)
G09622272

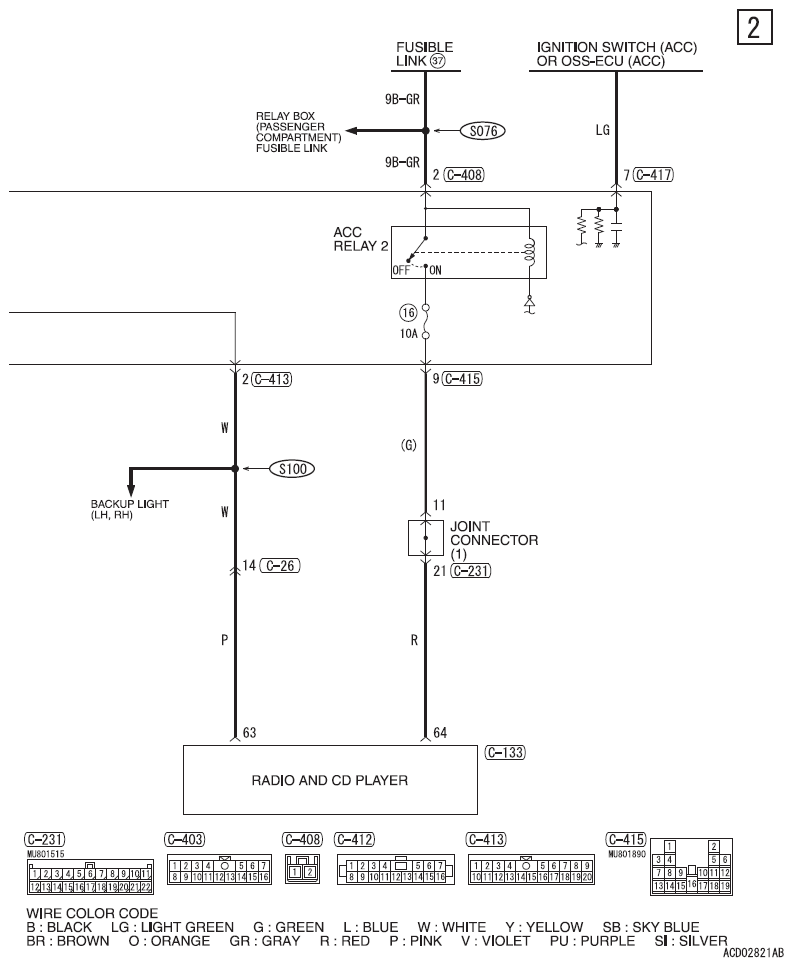

Fig 2: Rear View Camera - Circuit Diagram (2 Of 4)
G09622273

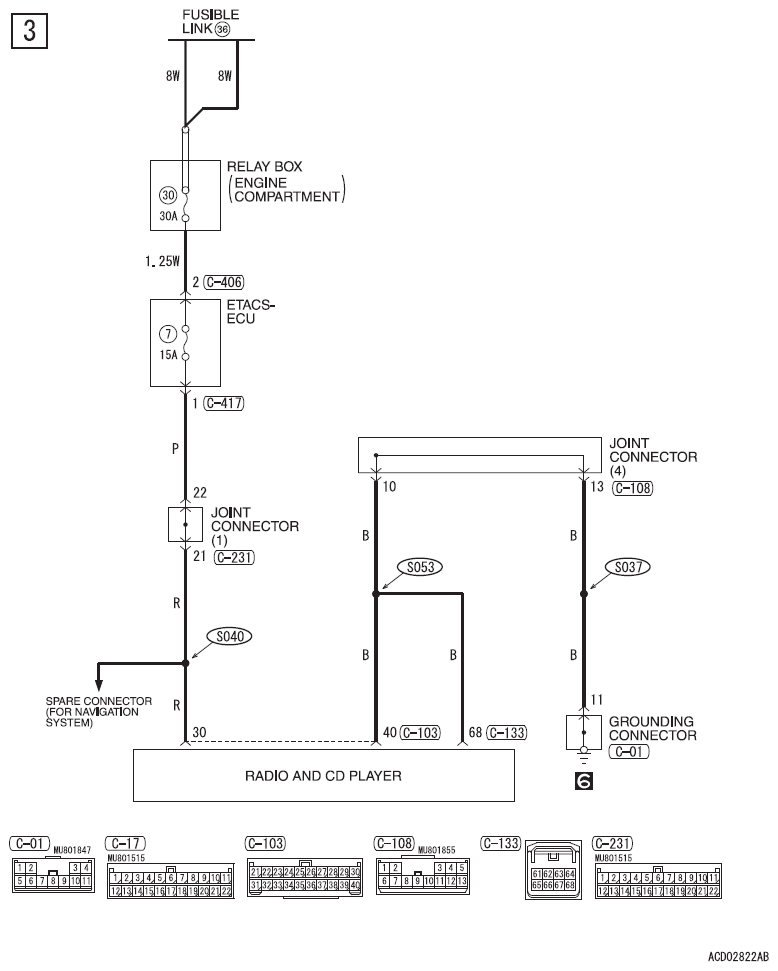

Fig 3: Rear View Camera - Circuit Diagram (3 Of 4)
G09622274

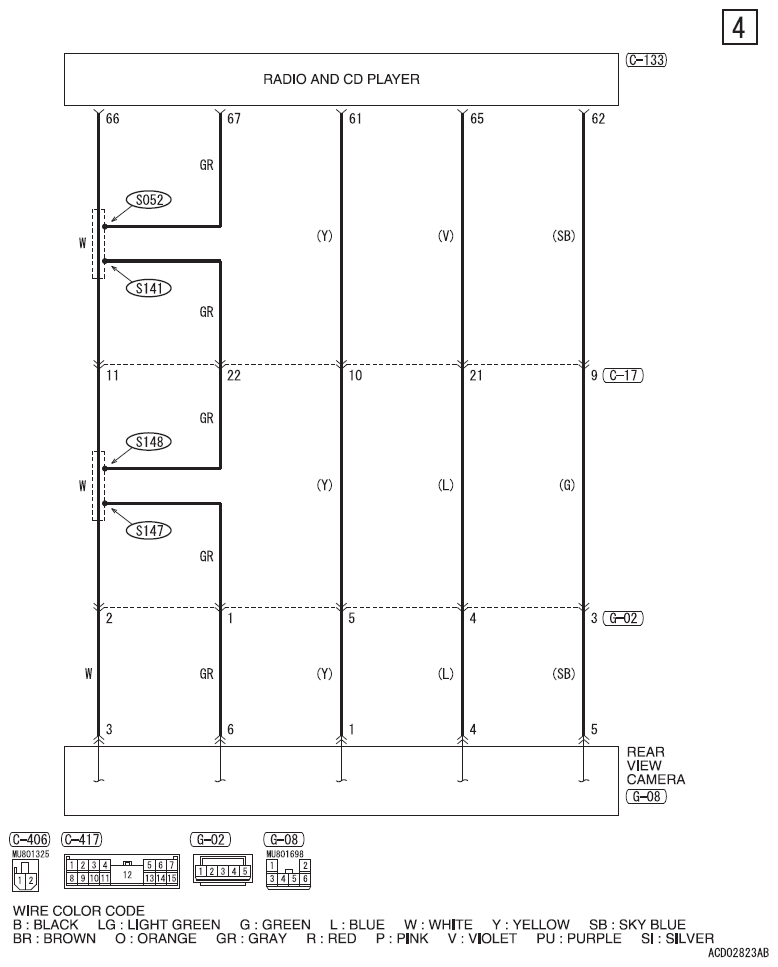

Fig 4: Rear View Camera - Circuit Diagram (4 Of 4)
G09622275
