Power Windows

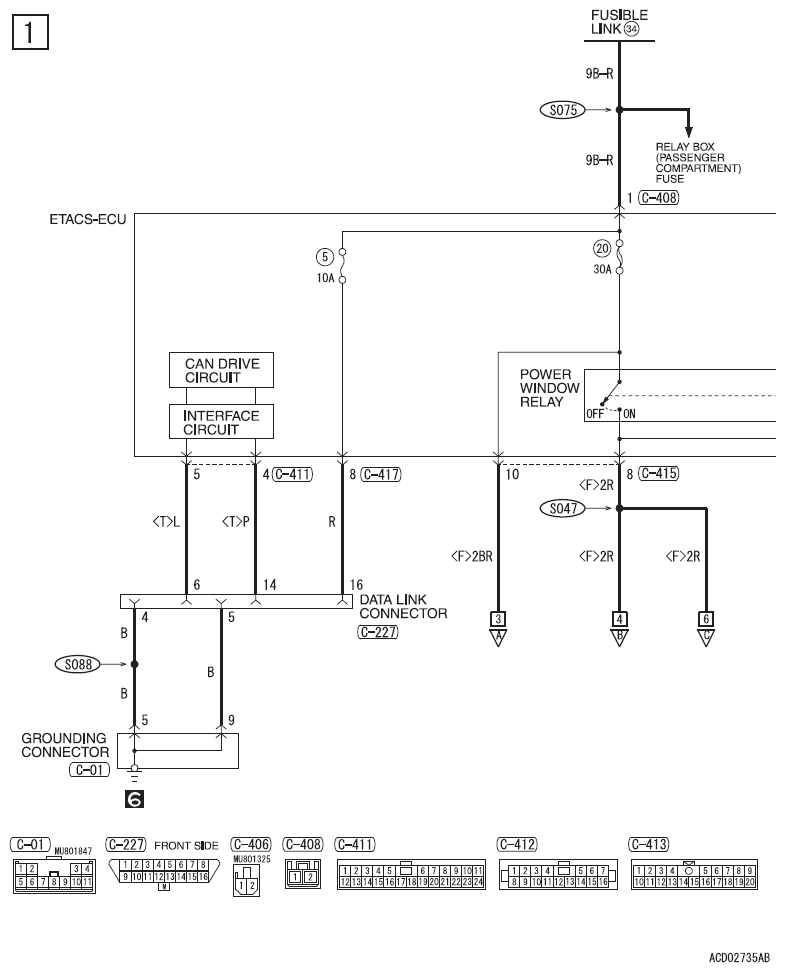

Fig 1: Power Windows - Circuit Diagram (1 Of 6)

G09622087

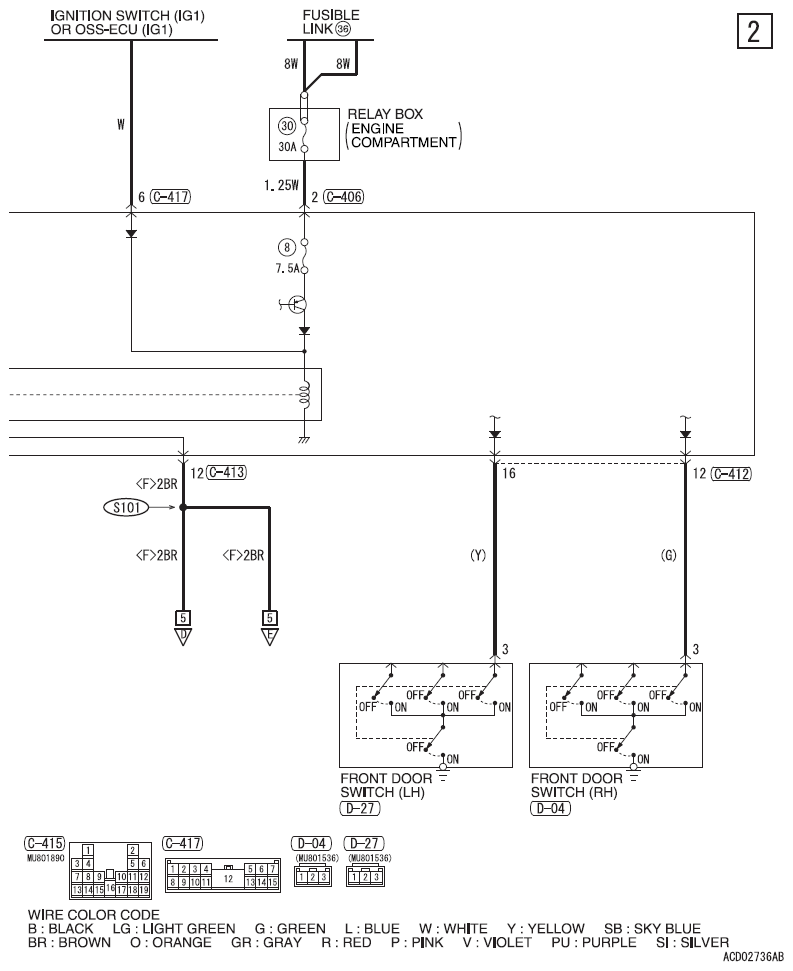

Fig 2: Power Windows - Circuit Diagram (2 Of 6)

G09622088

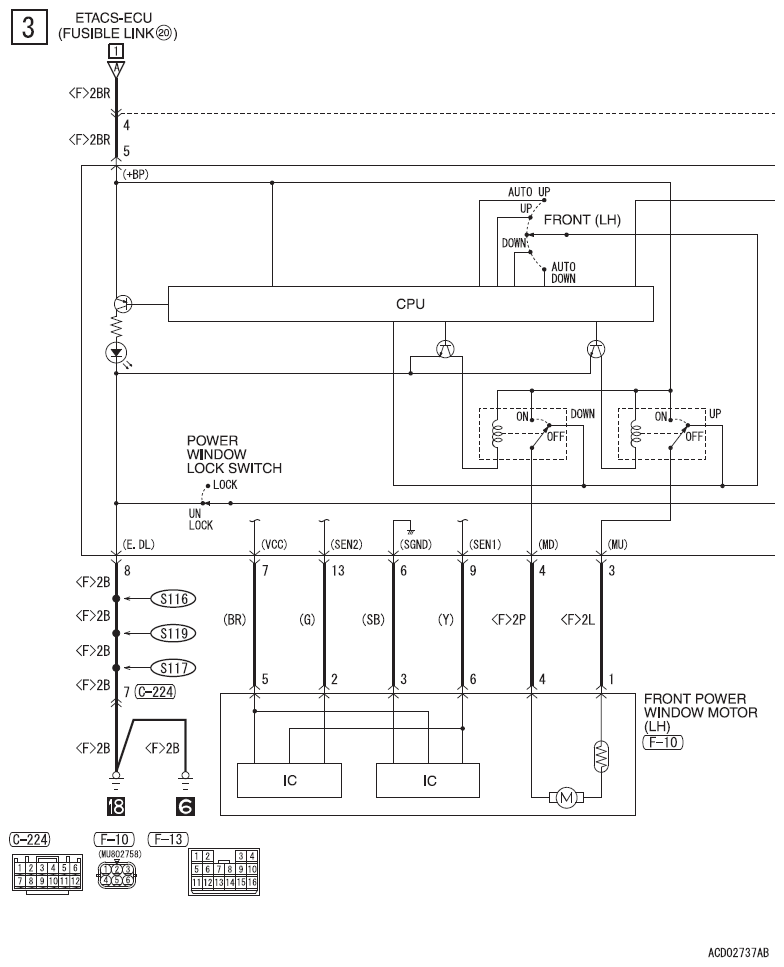

Fig 3: Power Windows - Circuit Diagram (3 Of 6)

G09622089

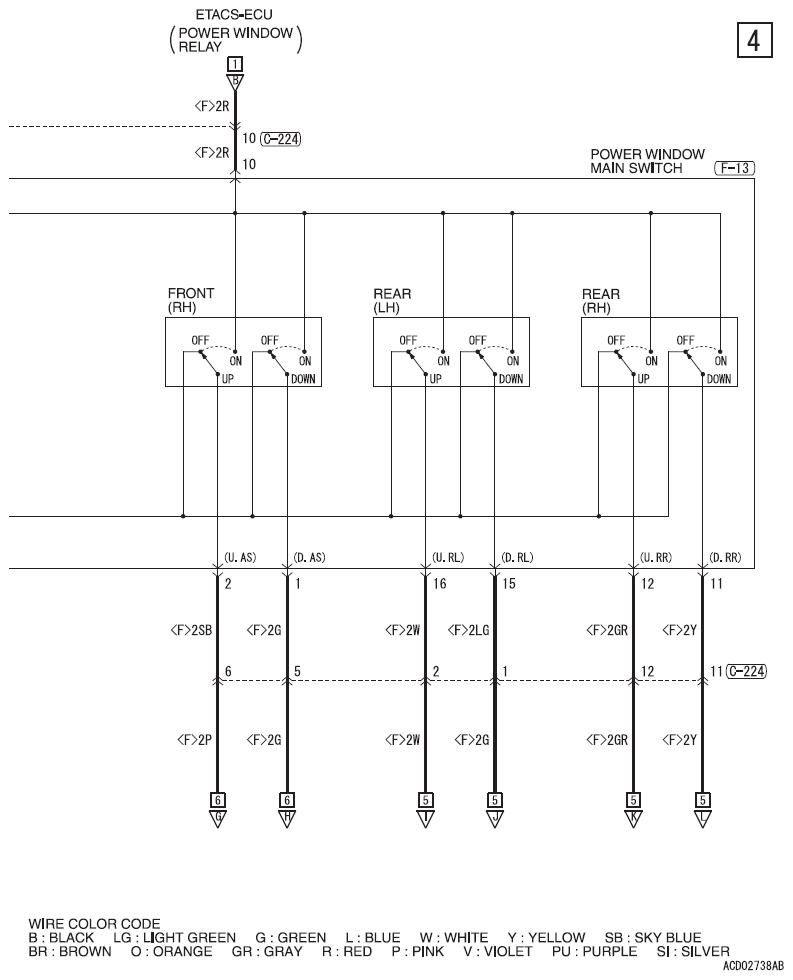

Fig 4: Power Windows - Circuit Diagram (4 Of 6)

G09622090

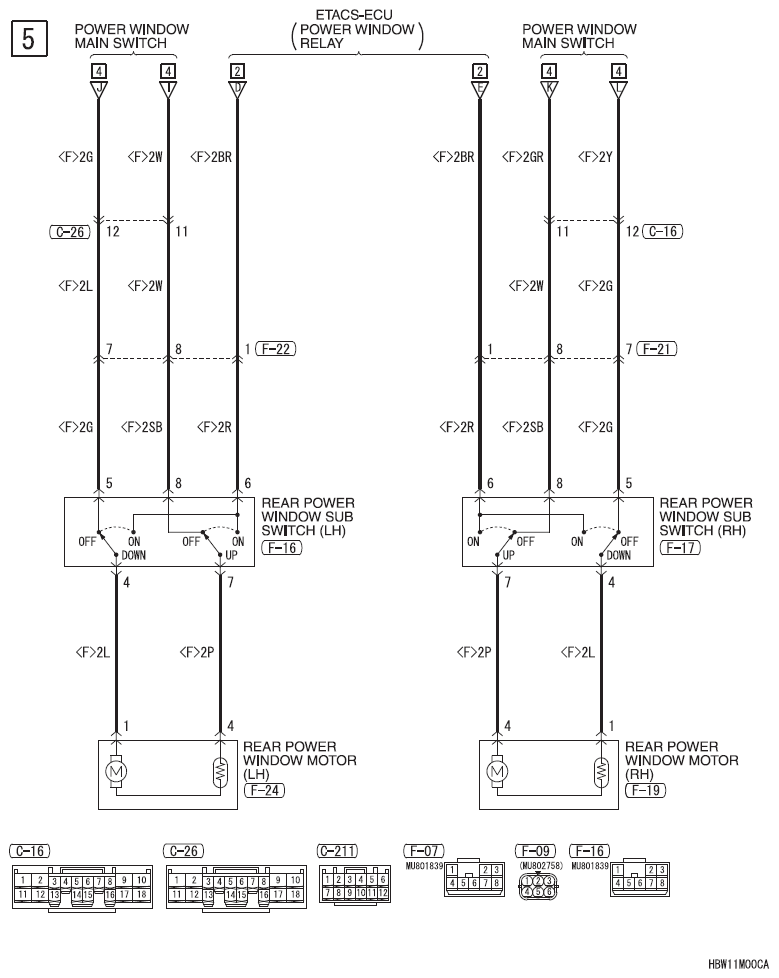

Fig 5: Power Windows - Circuit Diagram (5 Of 6)

G09622091

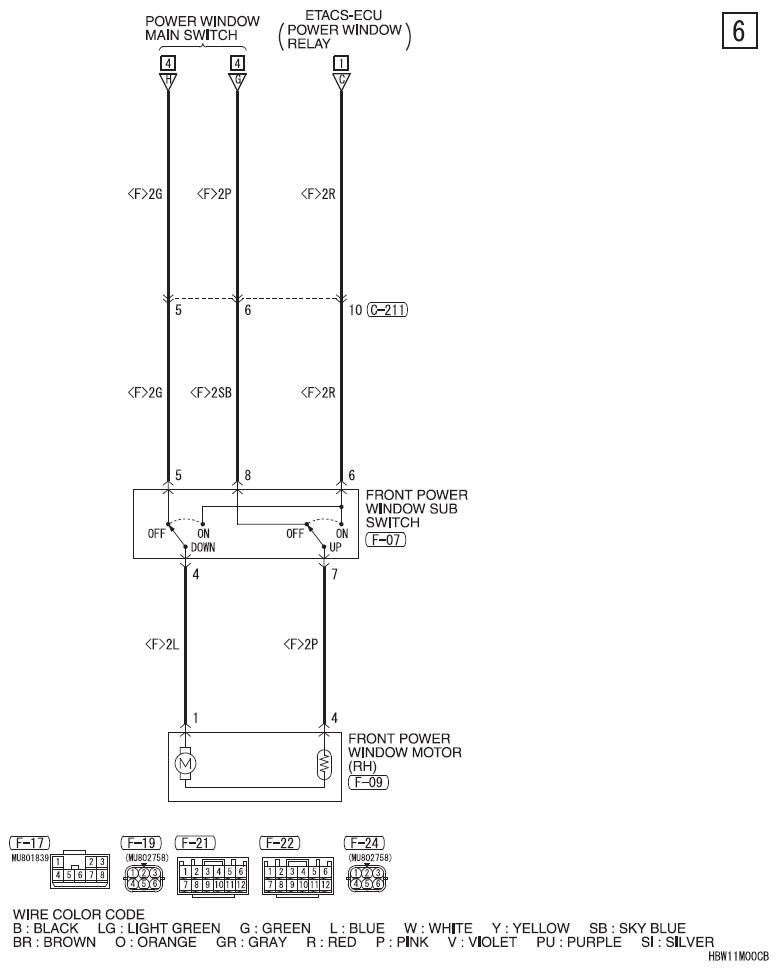

Fig 6: Power Windows - Circuit Diagram (6 Of 6)

G09622092
