Power Distribution System

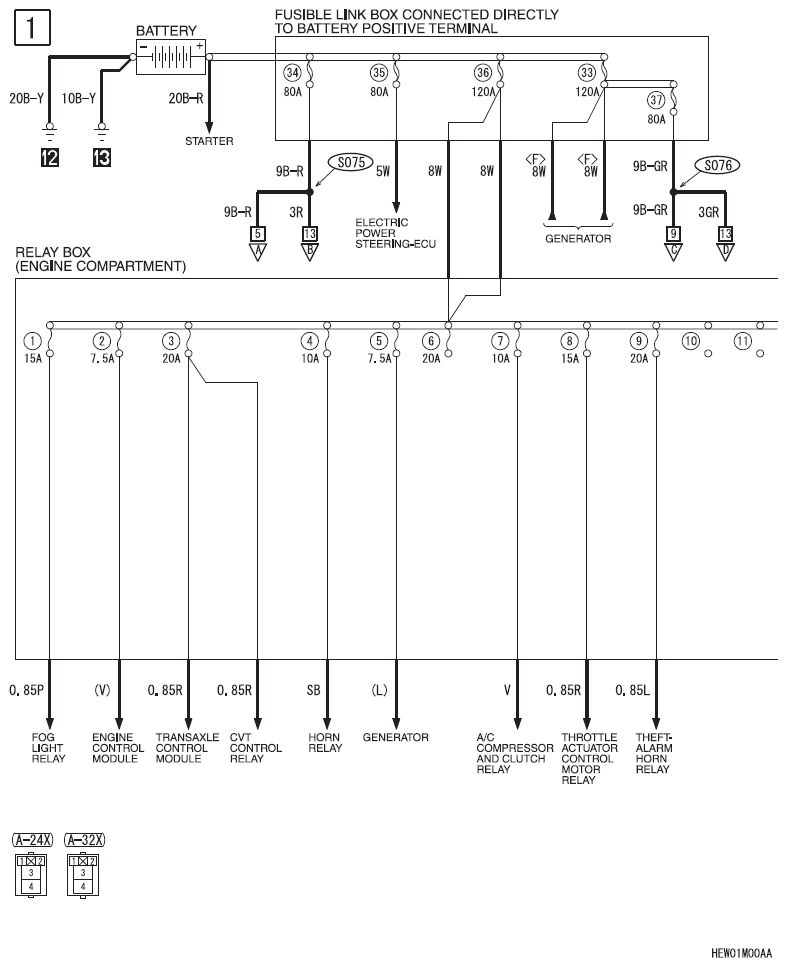

Fig 1: Power Distribution System - Circuit Diagram (1 Of 13)

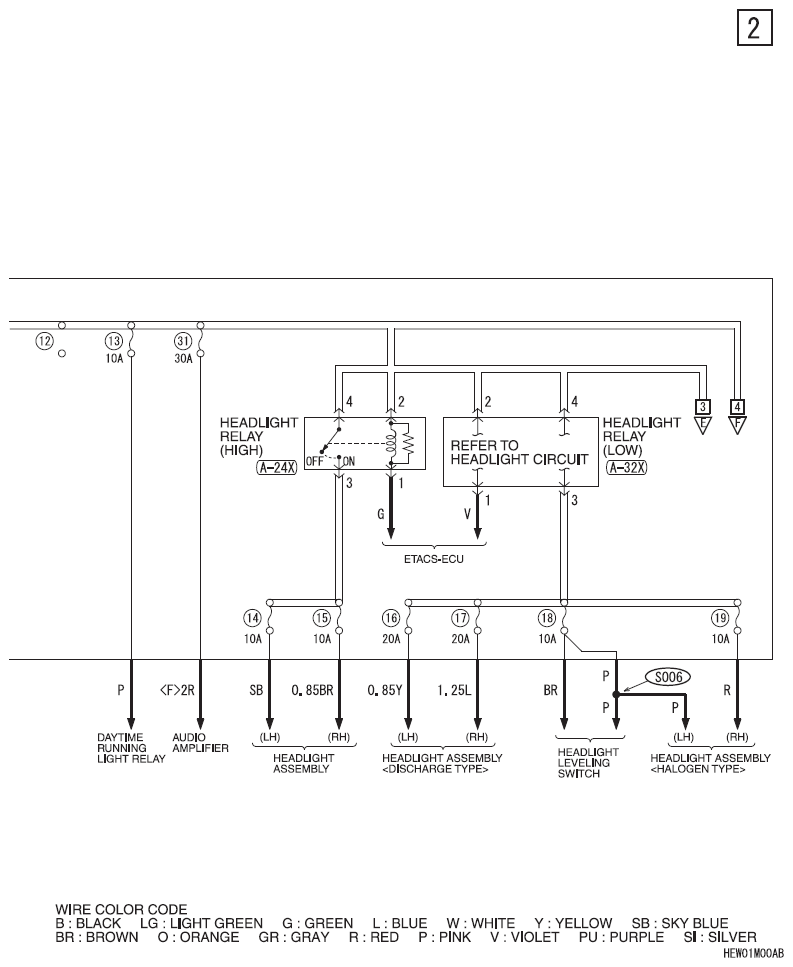

Fig 2: Power Distribution System - Circuit Diagram (2 Of 13)

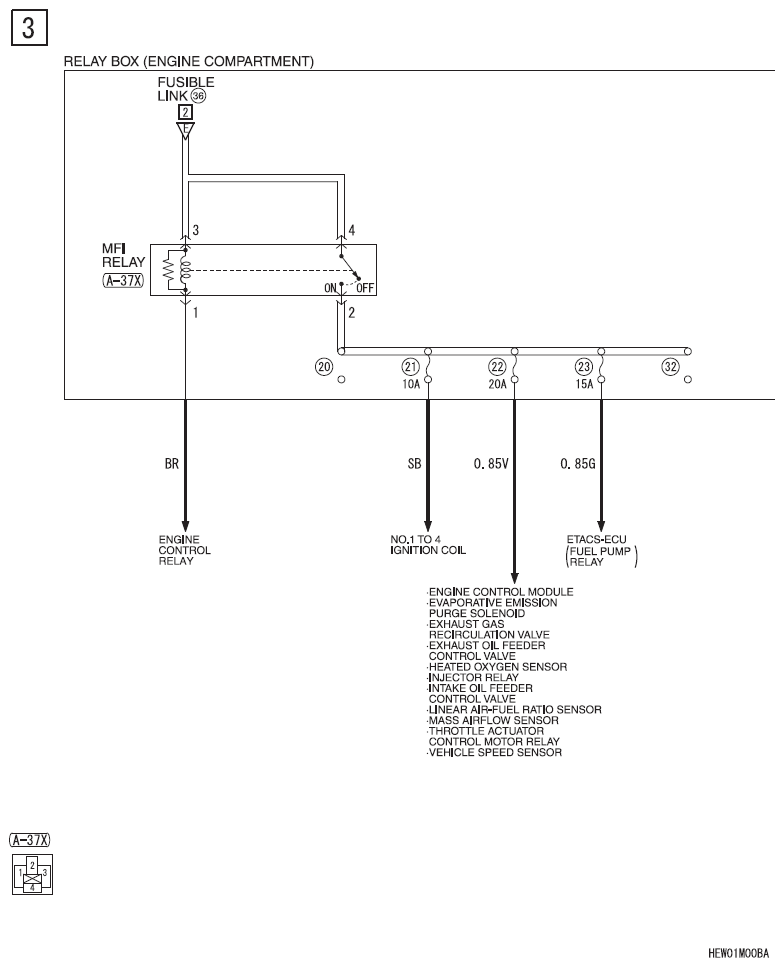

Fig 3: Power Distribution System - Circuit Diagram (3 Of 13)

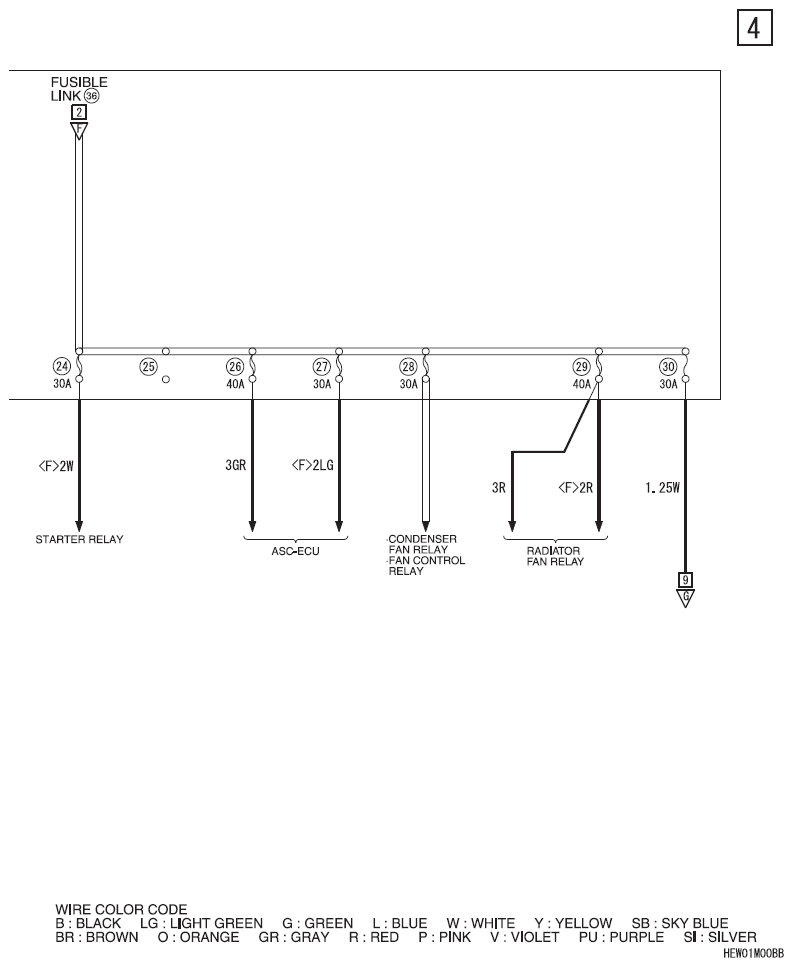

Fig 4: Power Distribution System - Circuit Diagram (4 Of 13)

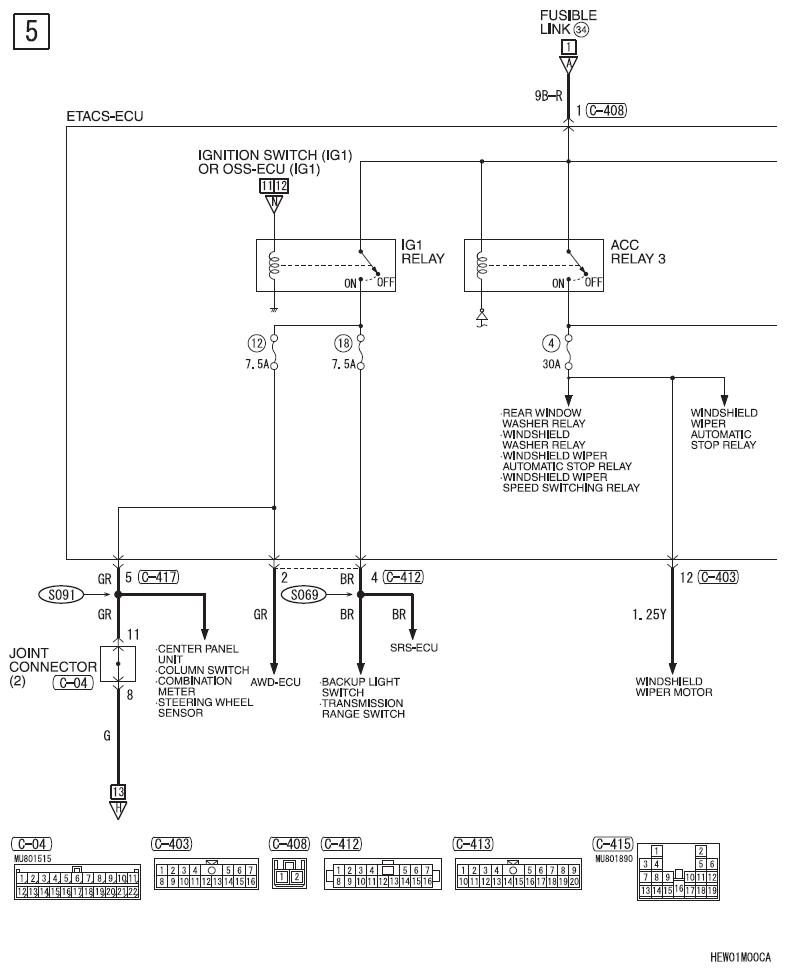

Fig 5: Power Distribution System - Circuit Diagram (5 Of 13)

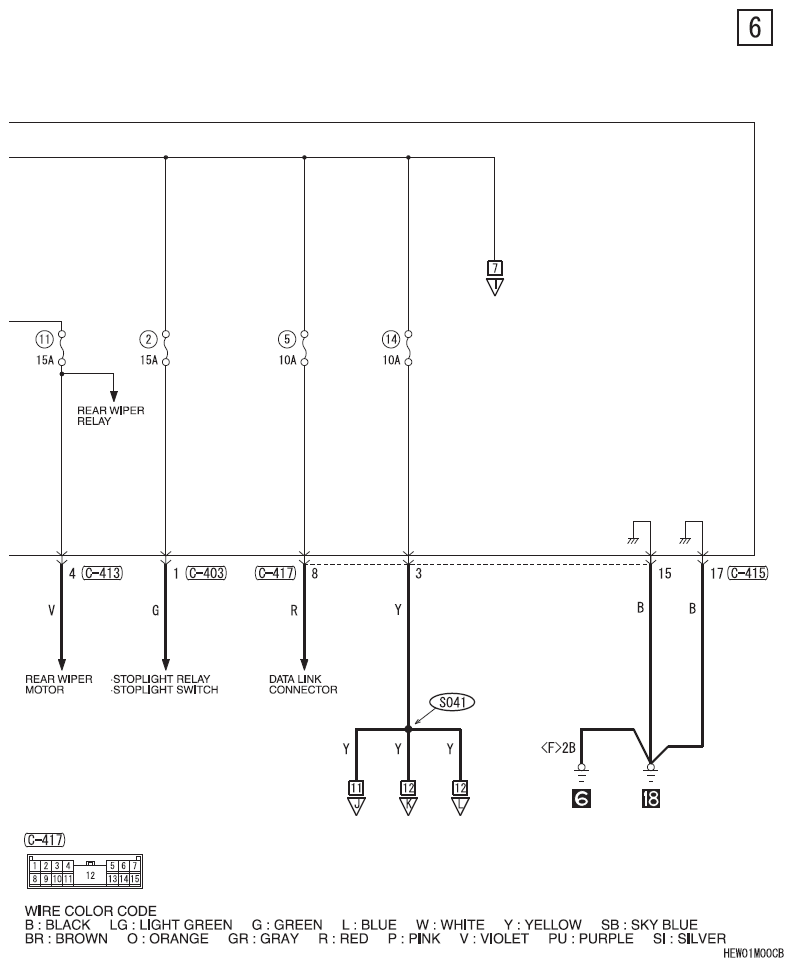

Fig 6: Power Distribution System - Circuit Diagram (6 Of 13)

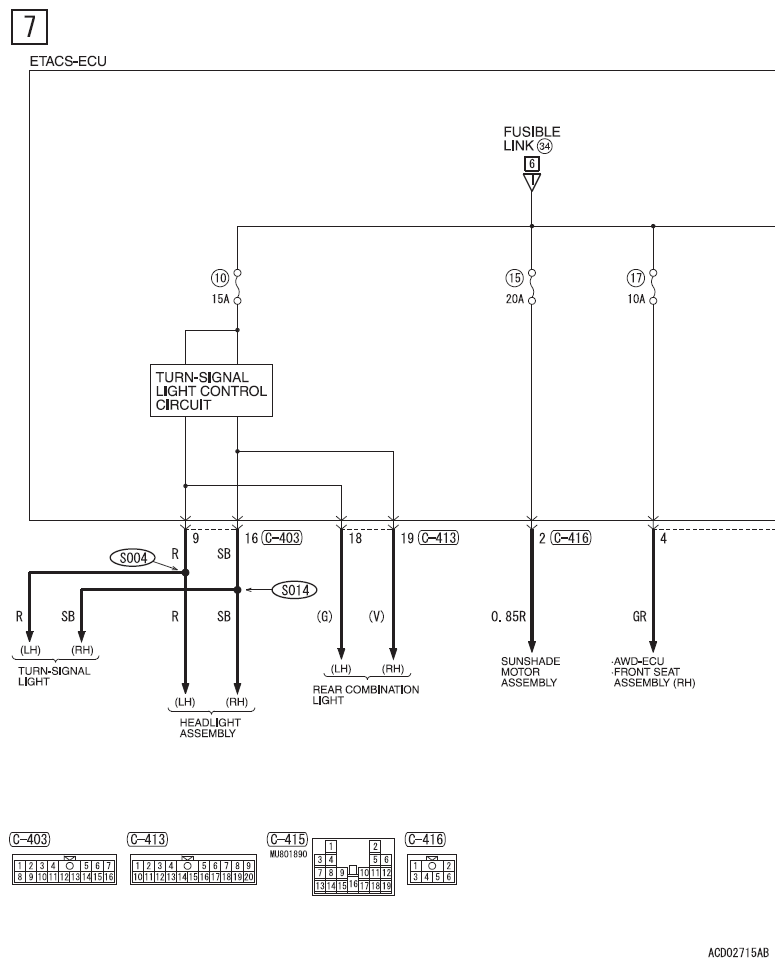

Fig 7: Power Distribution System - Circuit Diagram (7 Of 13)

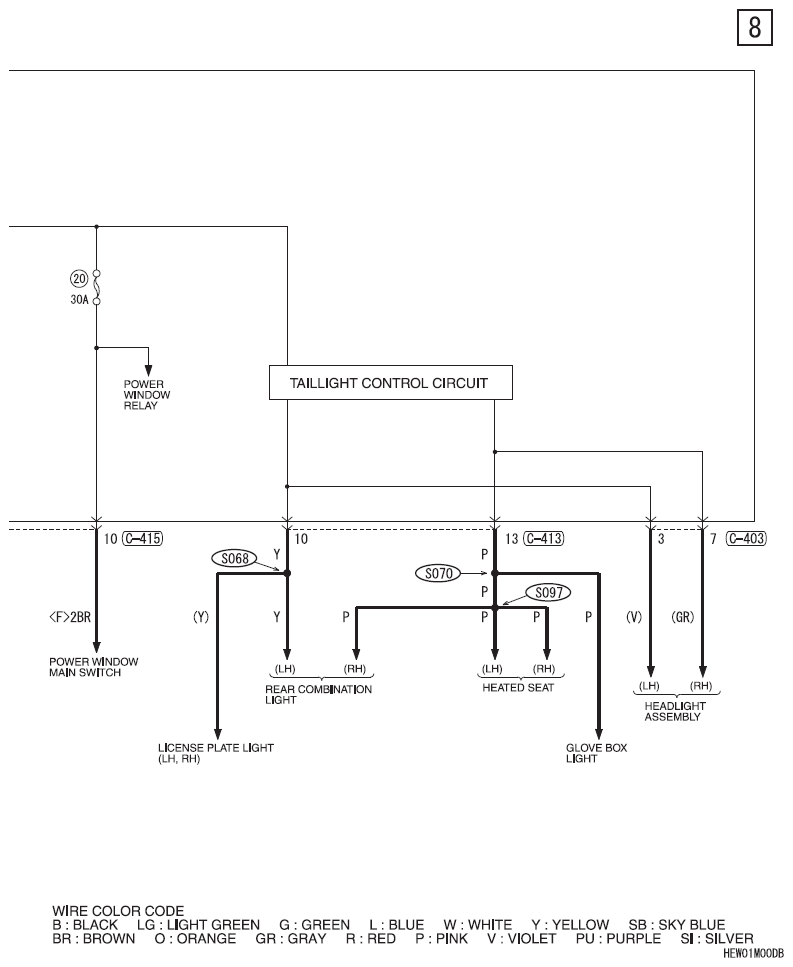

Fig 8: Power Distribution System - Circuit Diagram (8 Of 13)

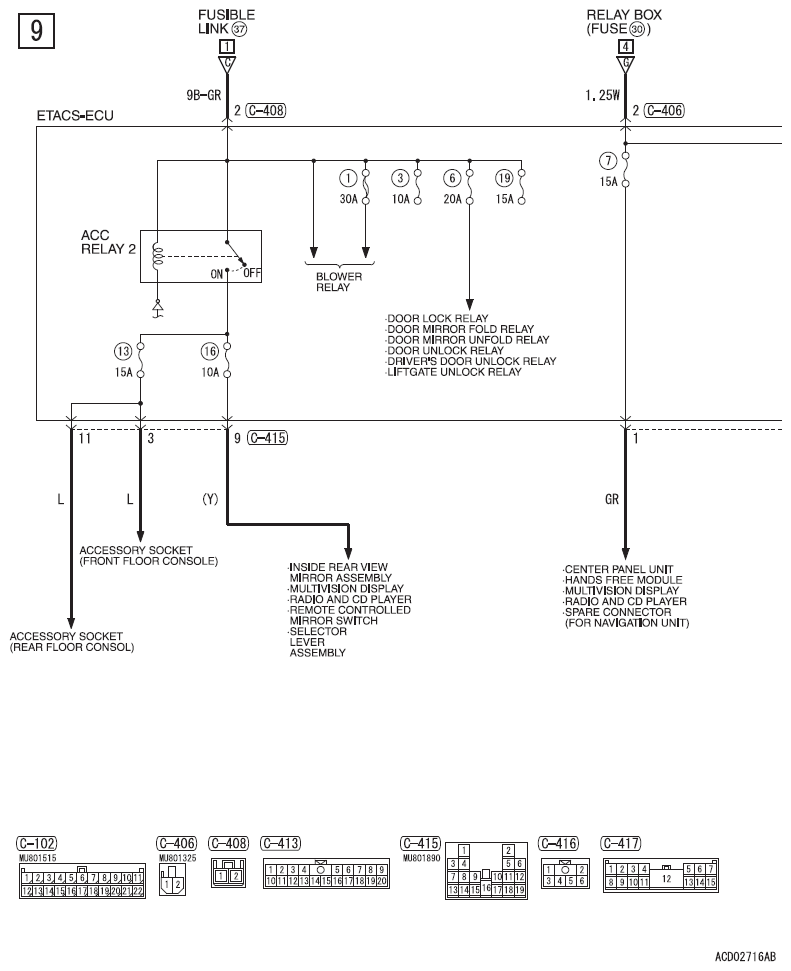

Fig 9: Power Distribution System - Circuit Diagram (9 Of 13)

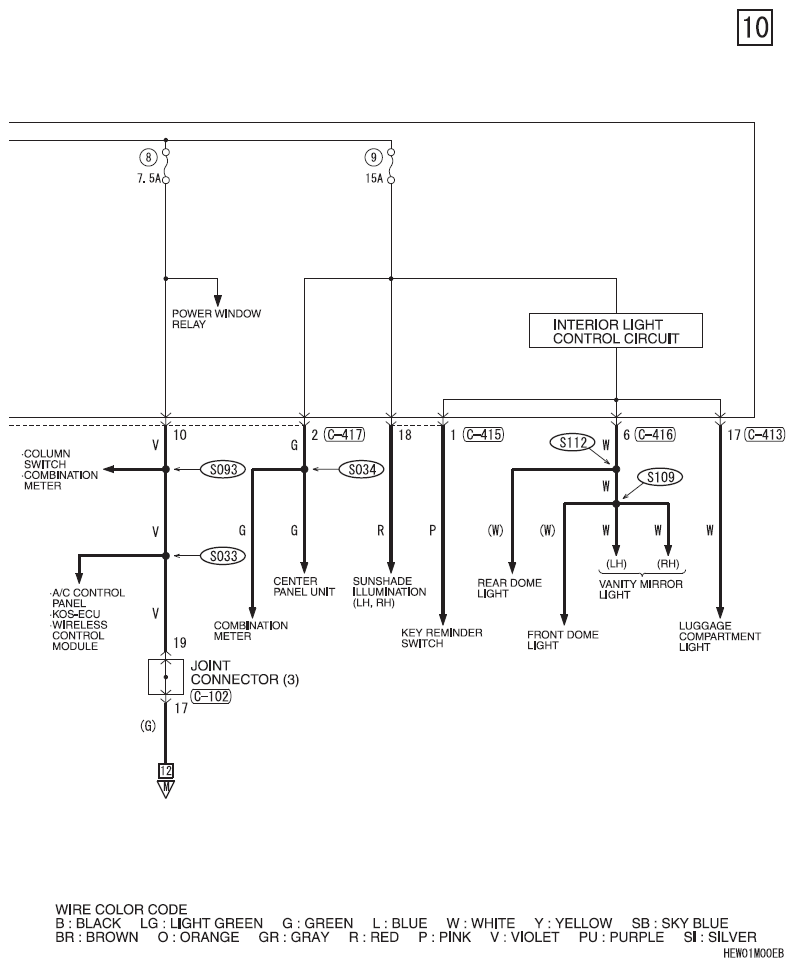

Fig 10: Power Distribution System - Circuit Diagram (10 Of 13)

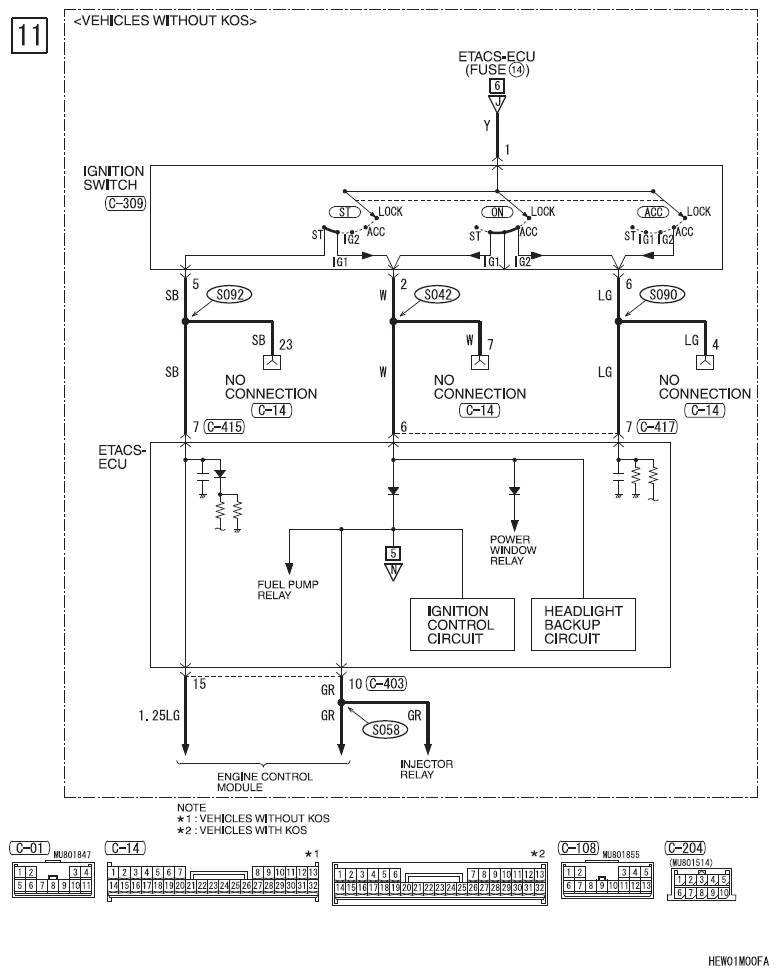

Fig 11: Power Distribution System - Circuit Diagram (11 Of 13)

Fig 12: Power Distribution System - Circuit Diagram (12 Of 13)

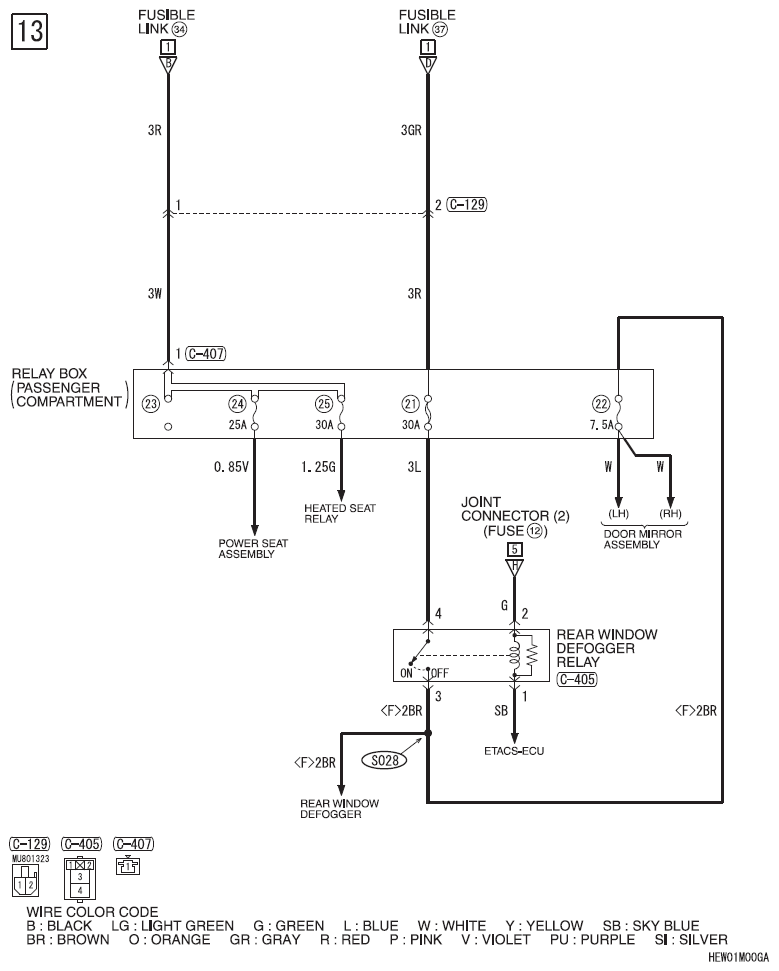

Fig 13: Power Distribution System - Circuit Diagram (13 Of 13)
