One Touch Start System

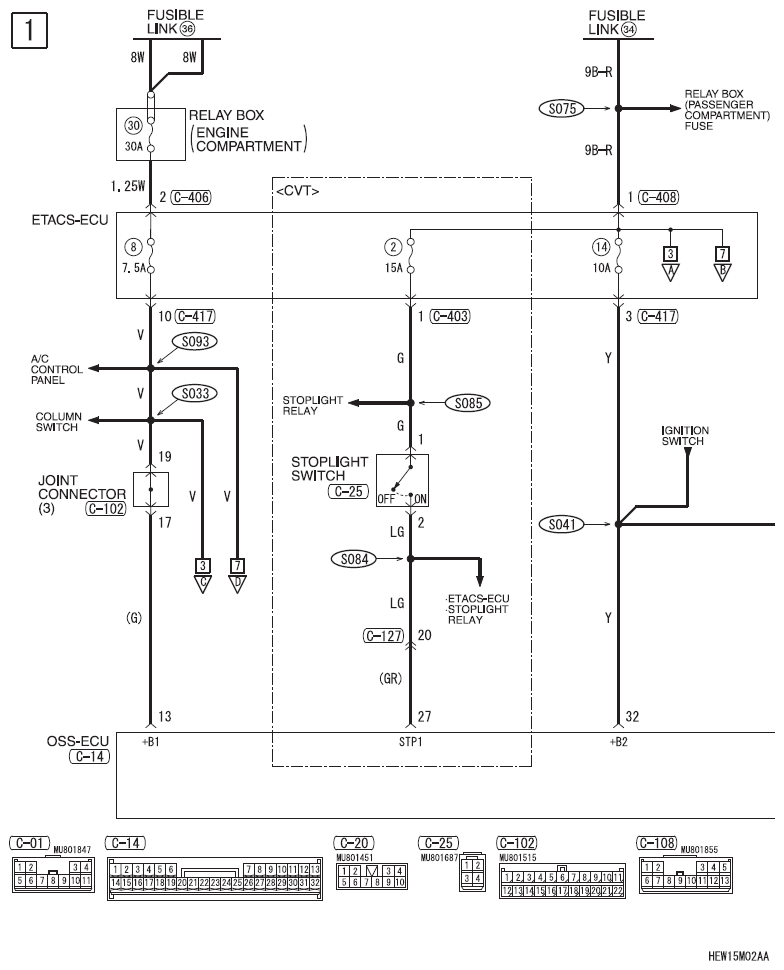

Fig 1: One Touch Start System - Circuit Diagram (1 Of 12)

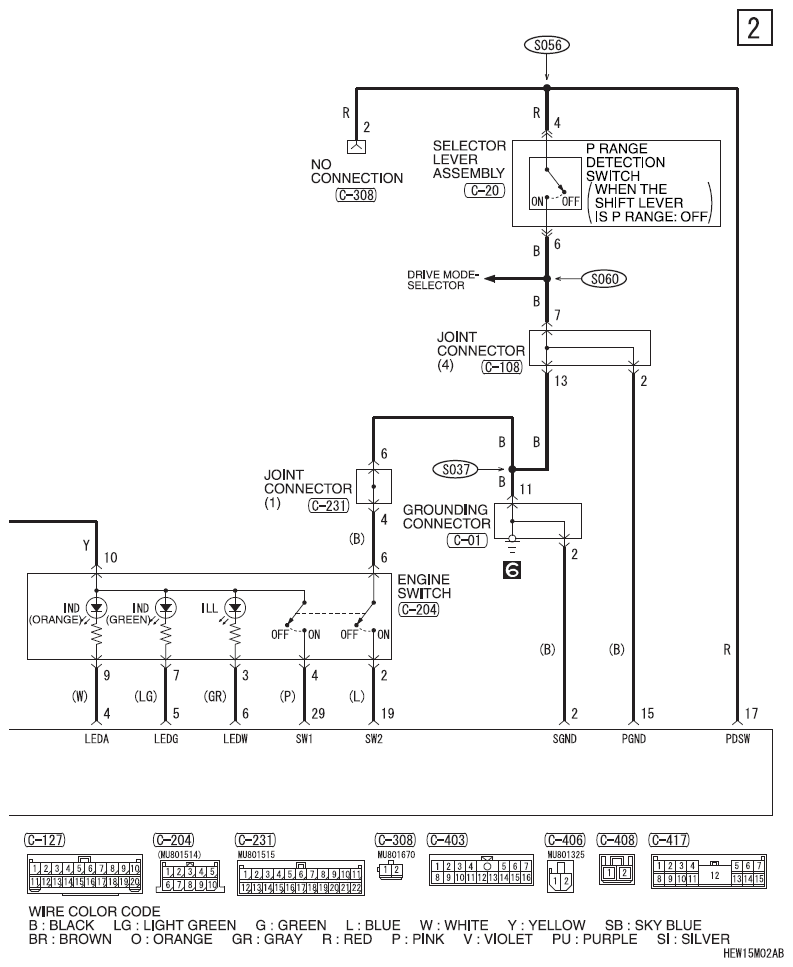

Fig 2: One Touch Start System - Circuit Diagram (2 Of 12)

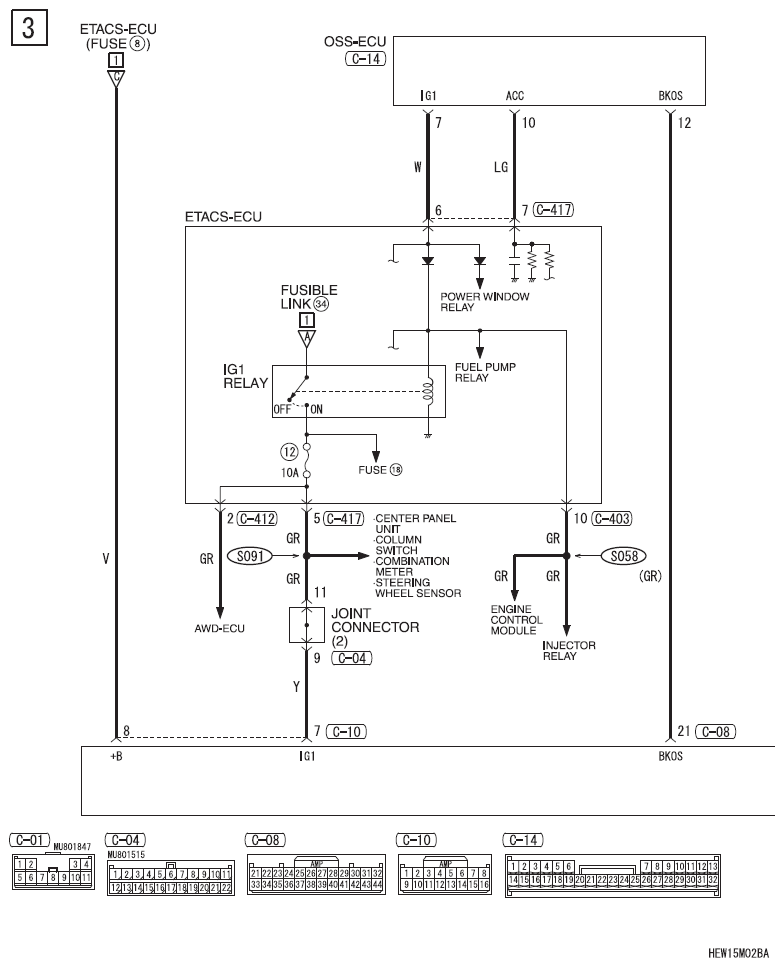

Fig 3: One Touch Start System - Circuit Diagram (3 Of 12)

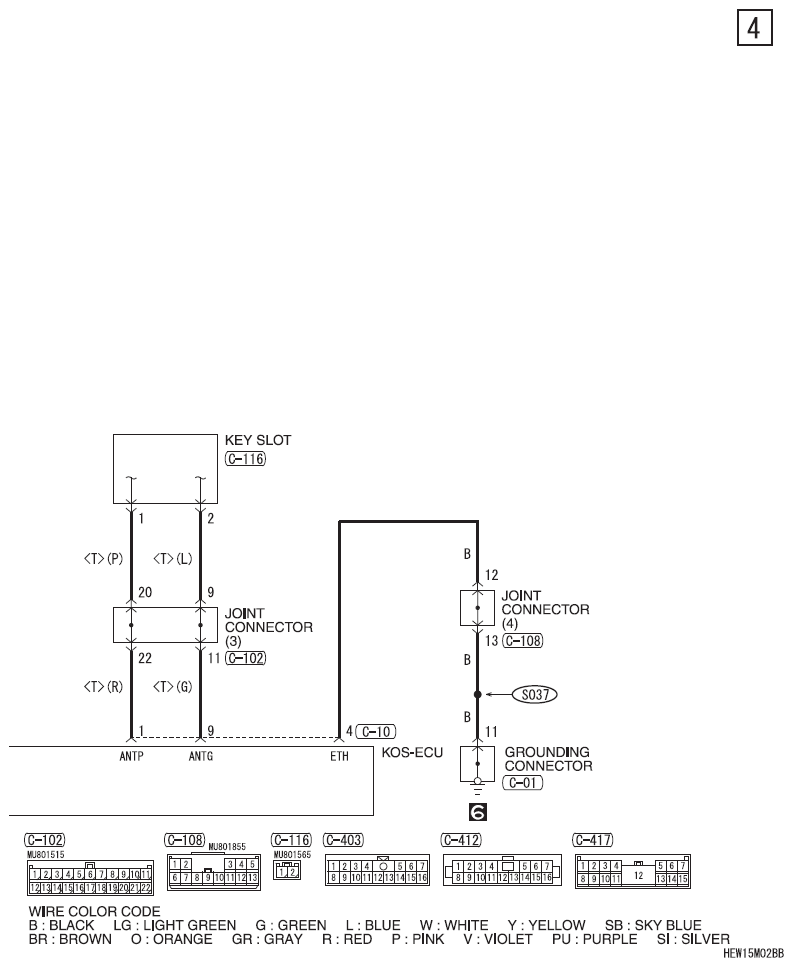

Fig 4: One Touch Start System - Circuit Diagram (4 Of 12)

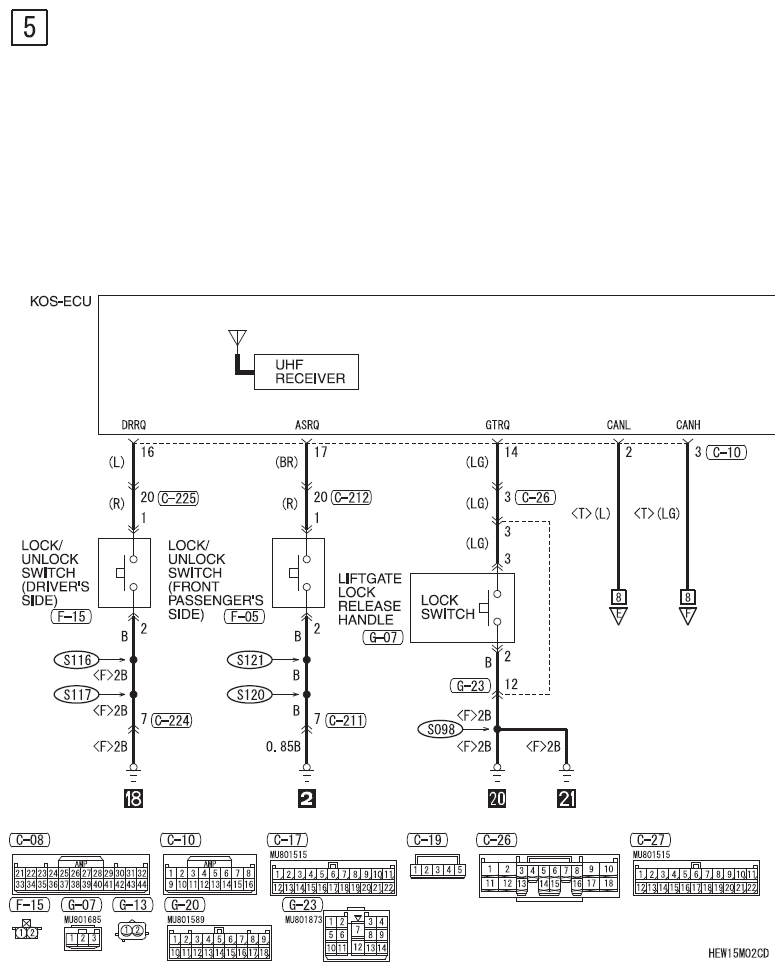

Fig 5: One Touch Start System - Circuit Diagram (5 Of 12)

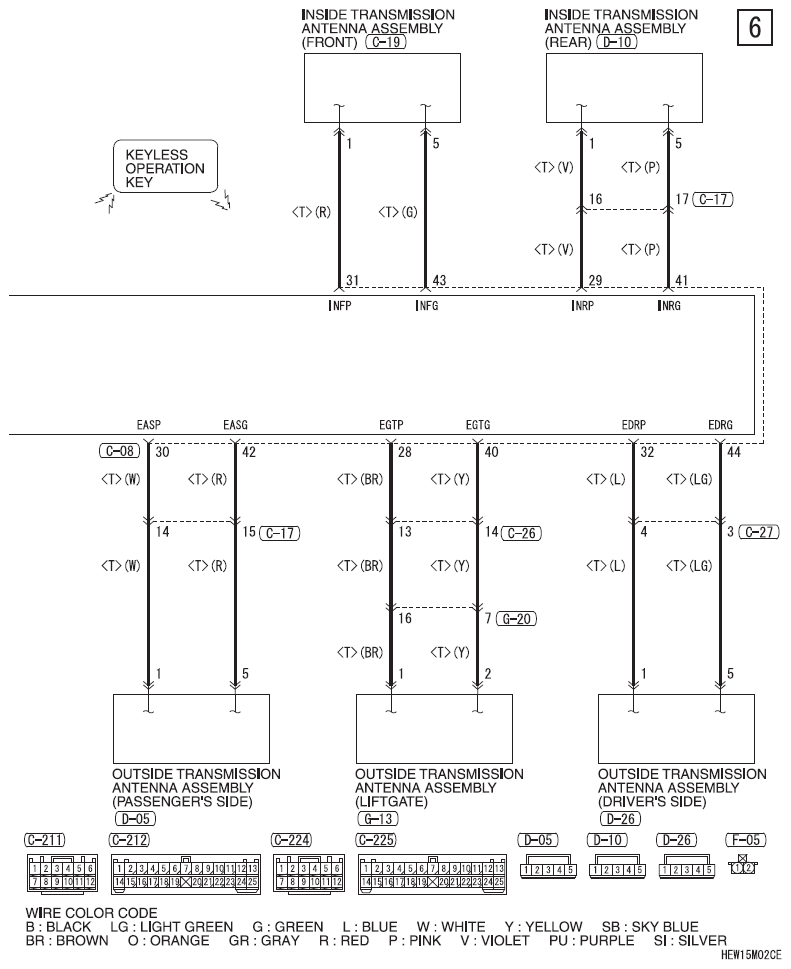

Fig 6: One Touch Start System - Circuit Diagram (6 Of 12)

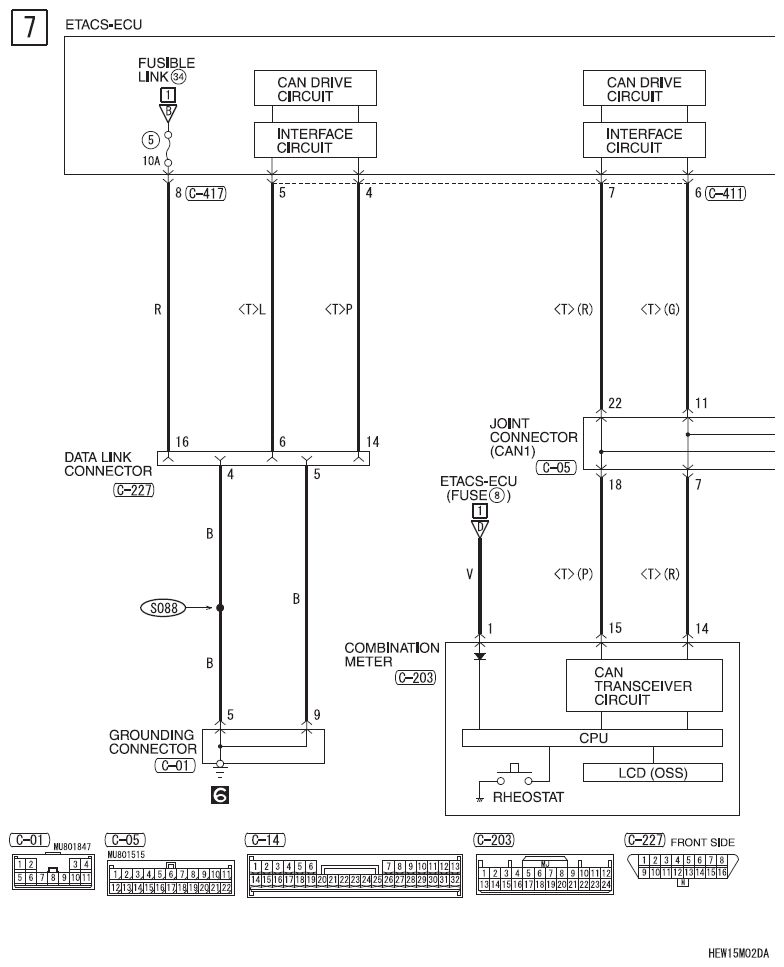

Fig 7: One Touch Start System - Circuit Diagram (7 Of 12)

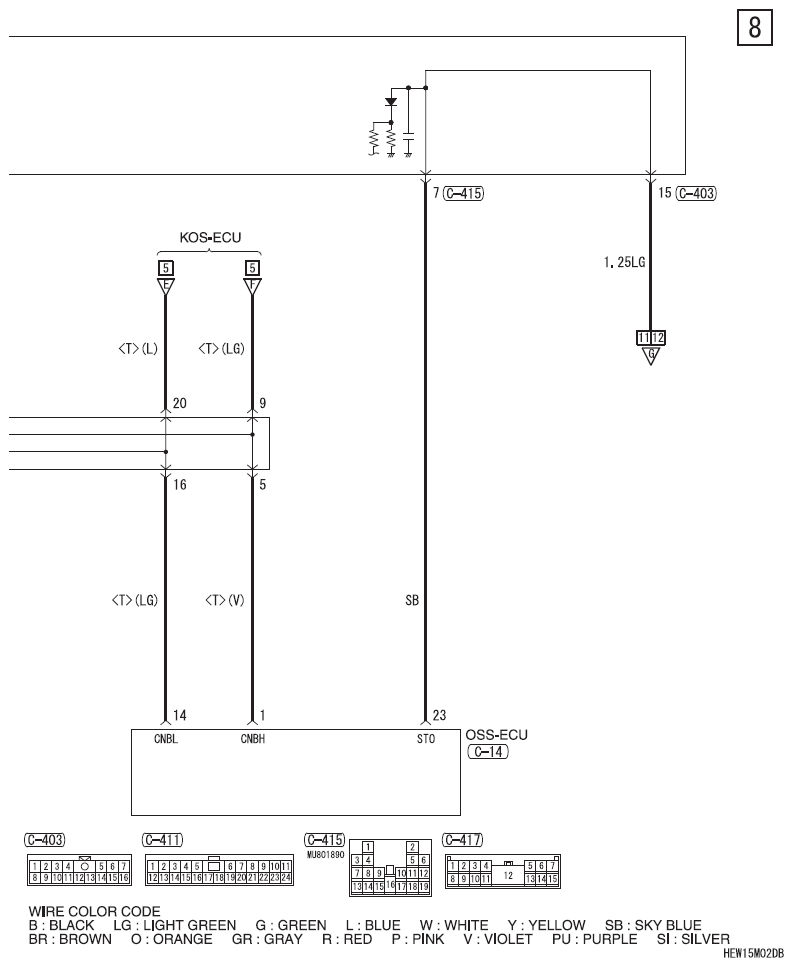

Fig 8: One Touch Start System - Circuit Diagram (8 Of 12)

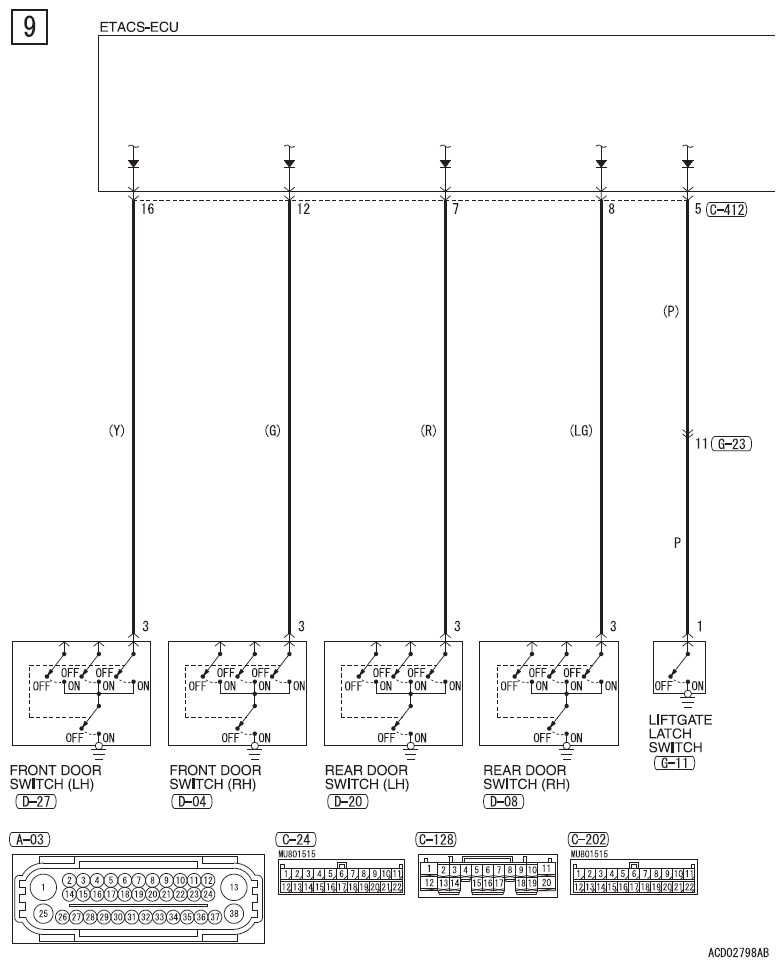

Fig 9: One Touch Start System - Circuit Diagram (9 Of 12)

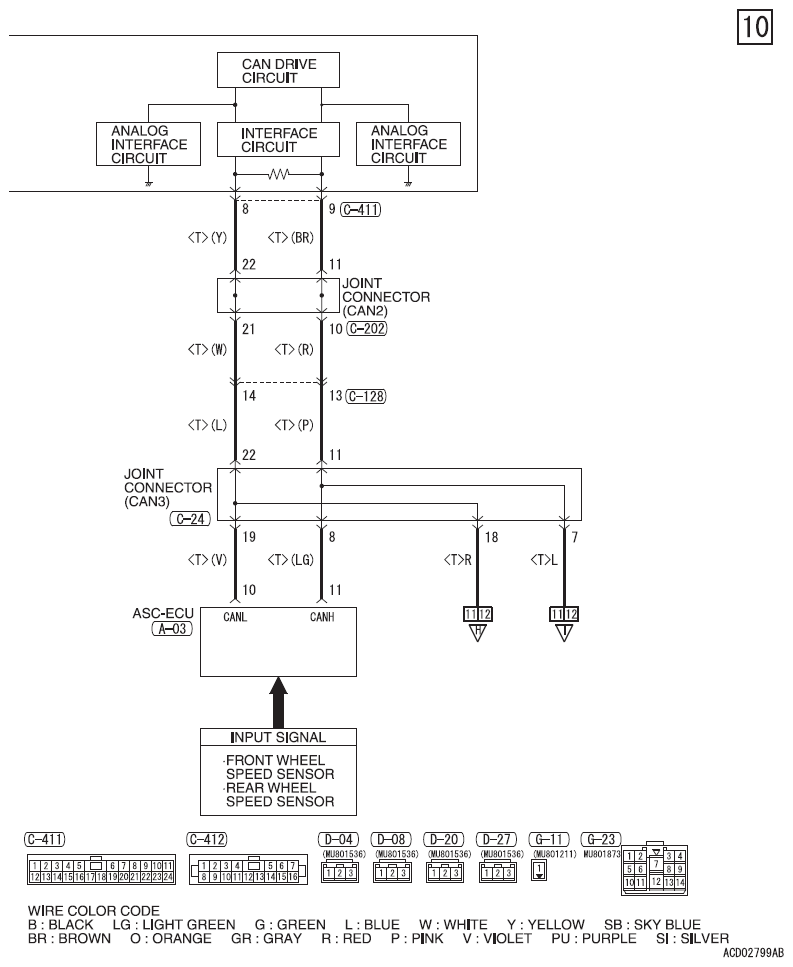

Fig 10: One Touch Start System - Circuit Diagram (10 Of 12)

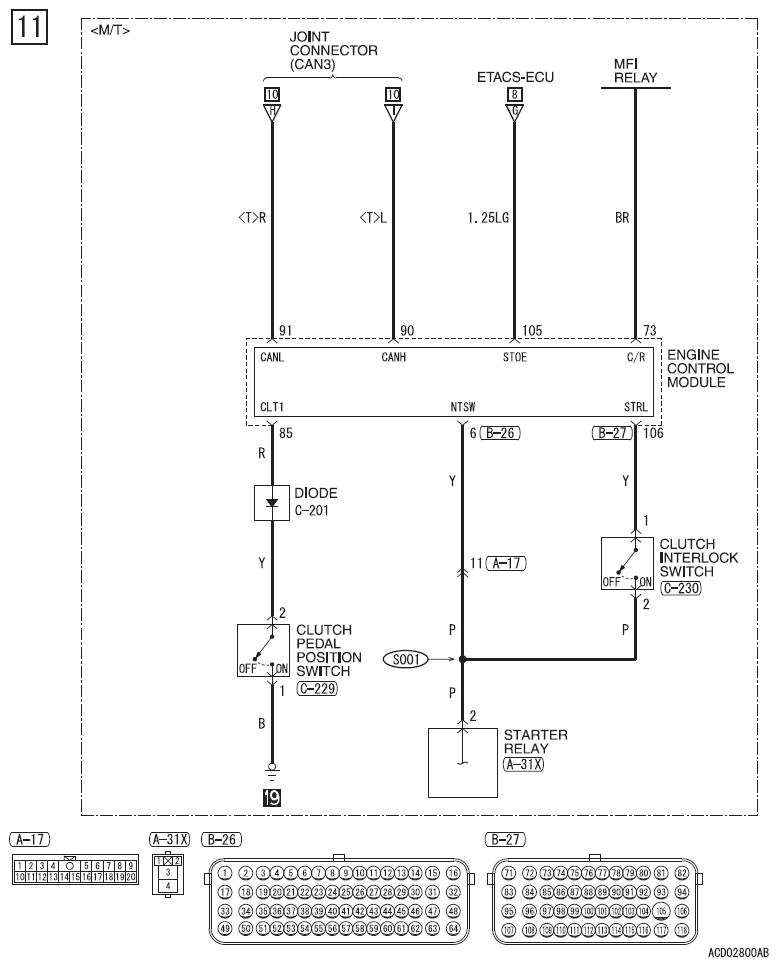

Fig 11: One Touch Start System - Circuit Diagram (11 Of 12)

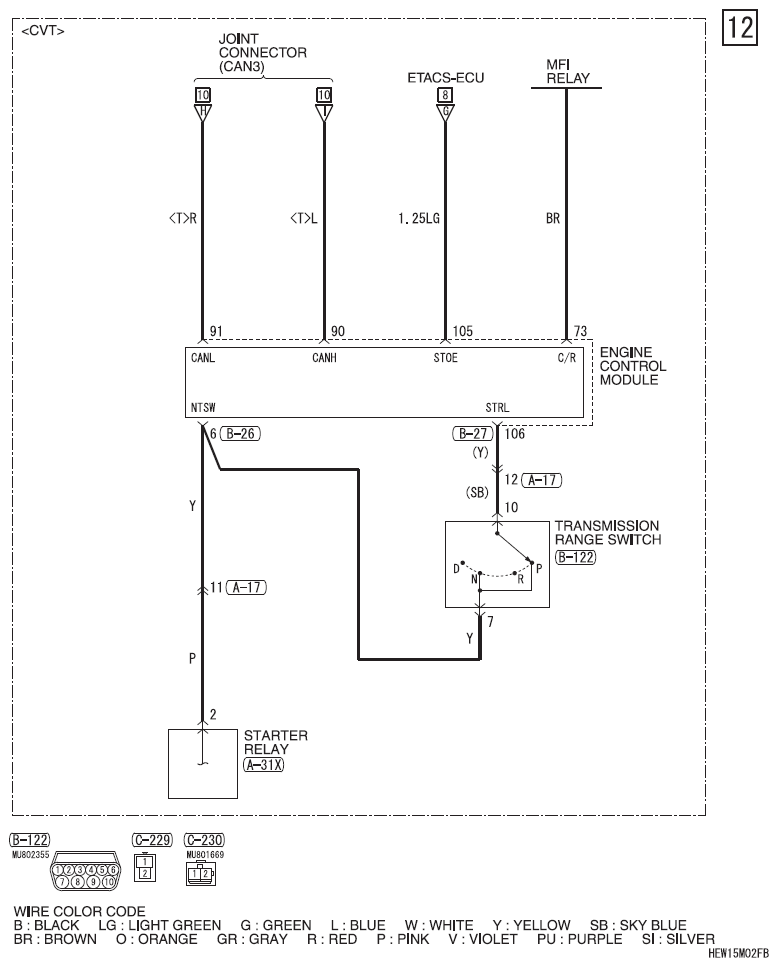

Fig 12: One Touch Start System - Circuit Diagram (12 Of 12)
