MITSUBISHI Multi-Communication System (MMCS)

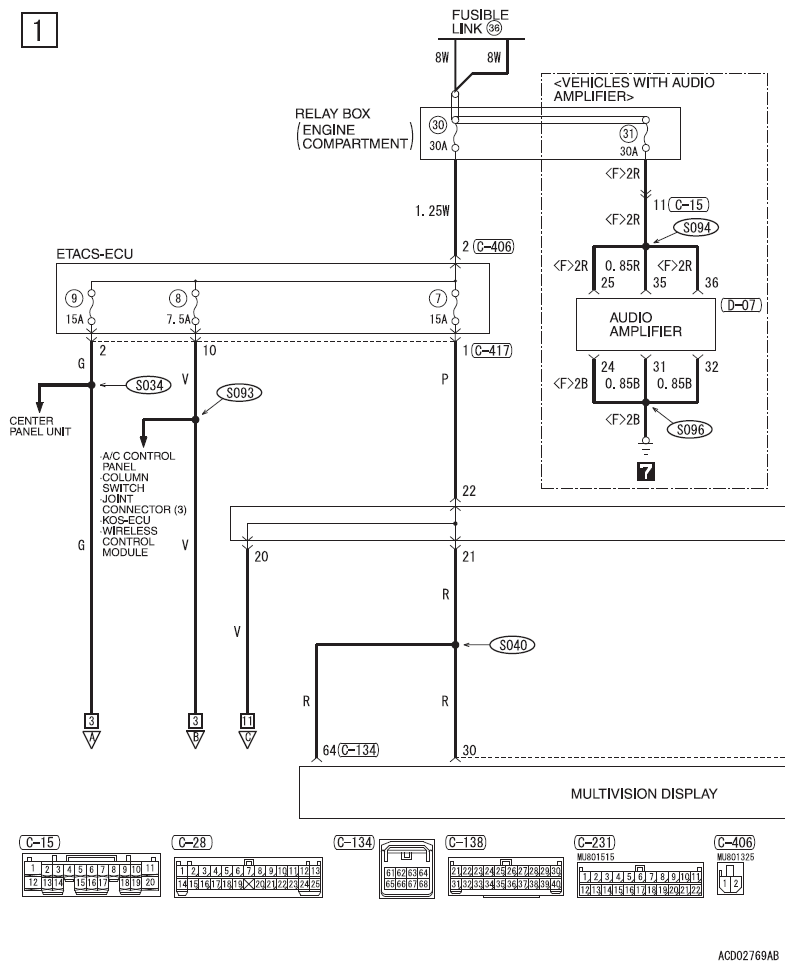

Fig 1: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (1 Of 13)

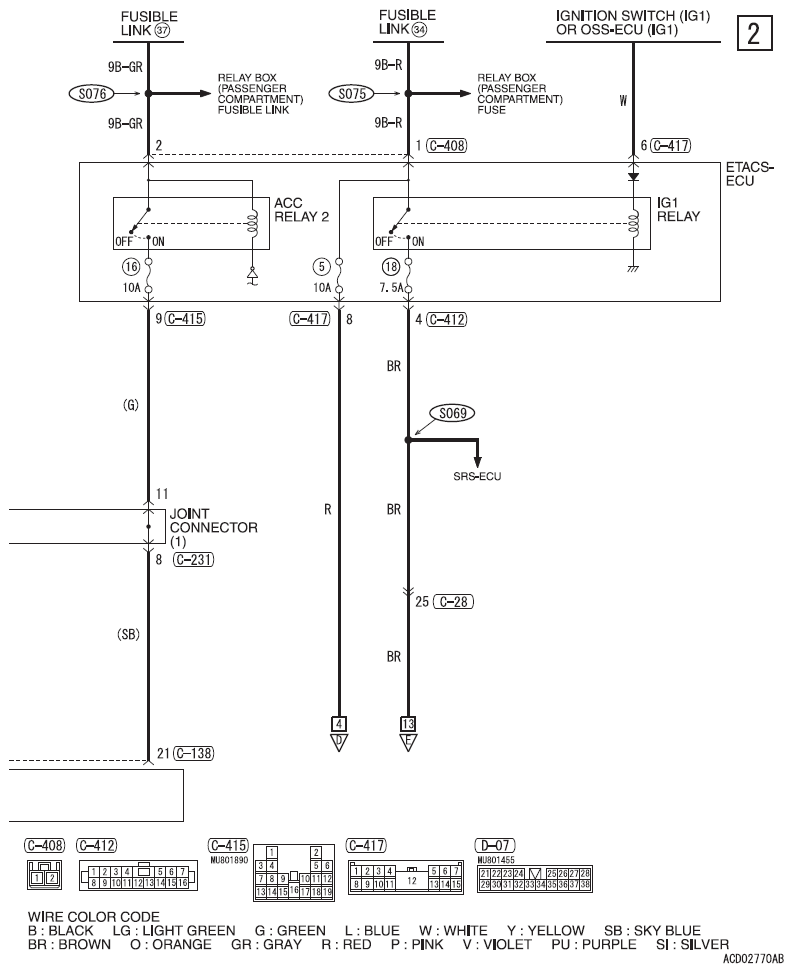

Fig 2: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (2 Of 13)

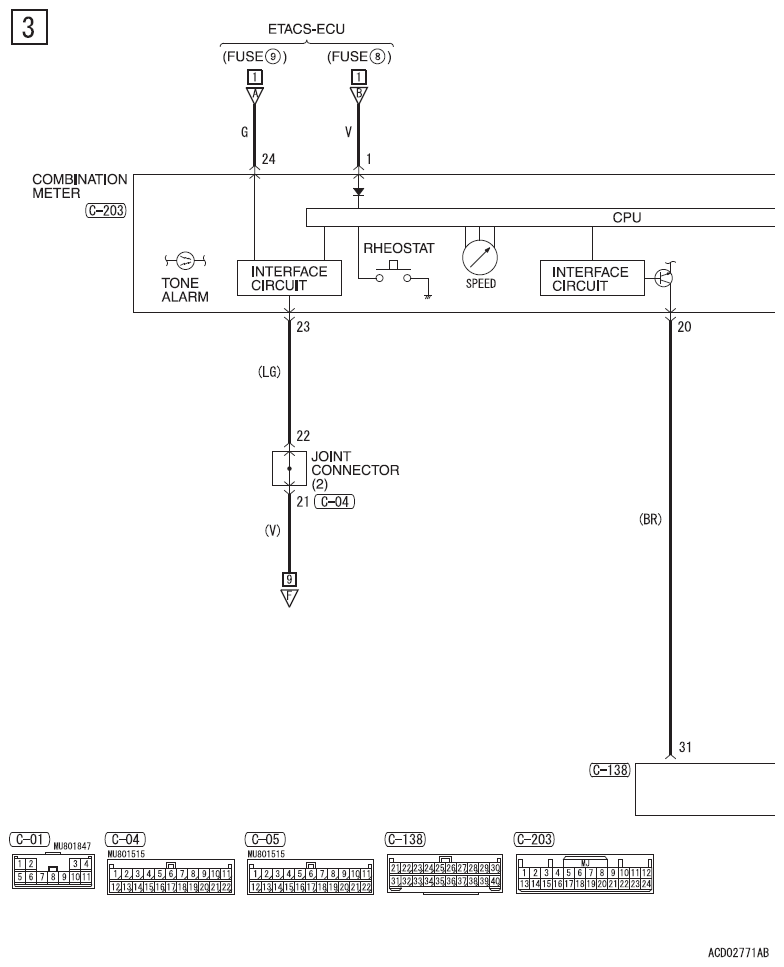

Fig 3: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (3 Of 13)

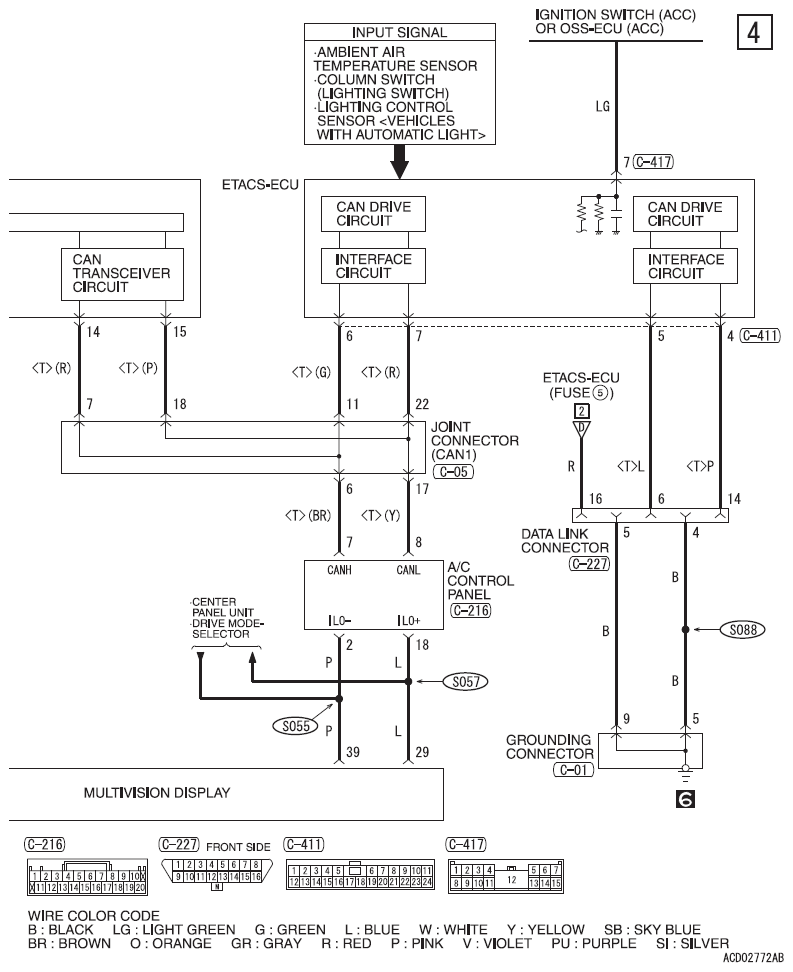

Fig 4: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (4 Of 13)

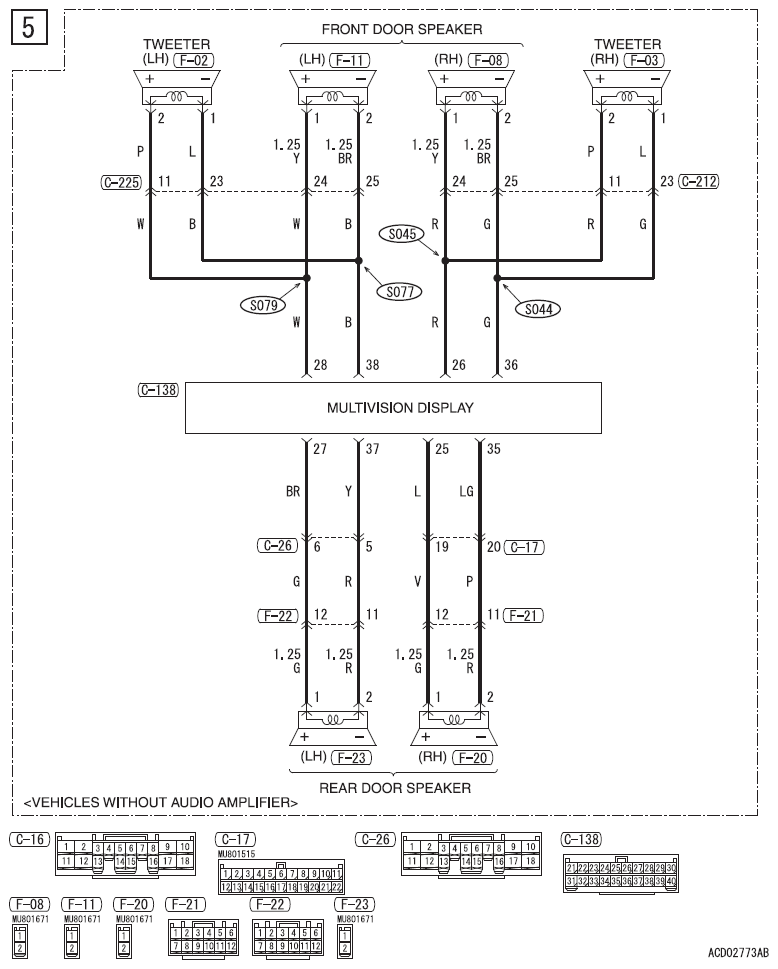

Fig 5: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (5 Of 13)

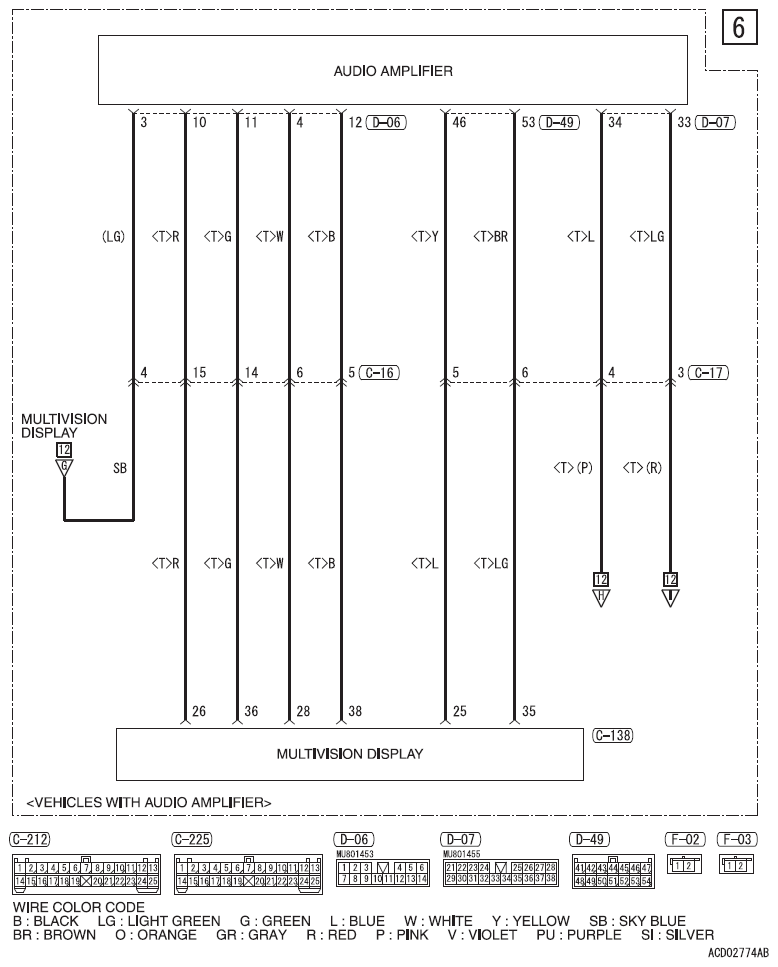

Fig 6: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (6 Of 13)

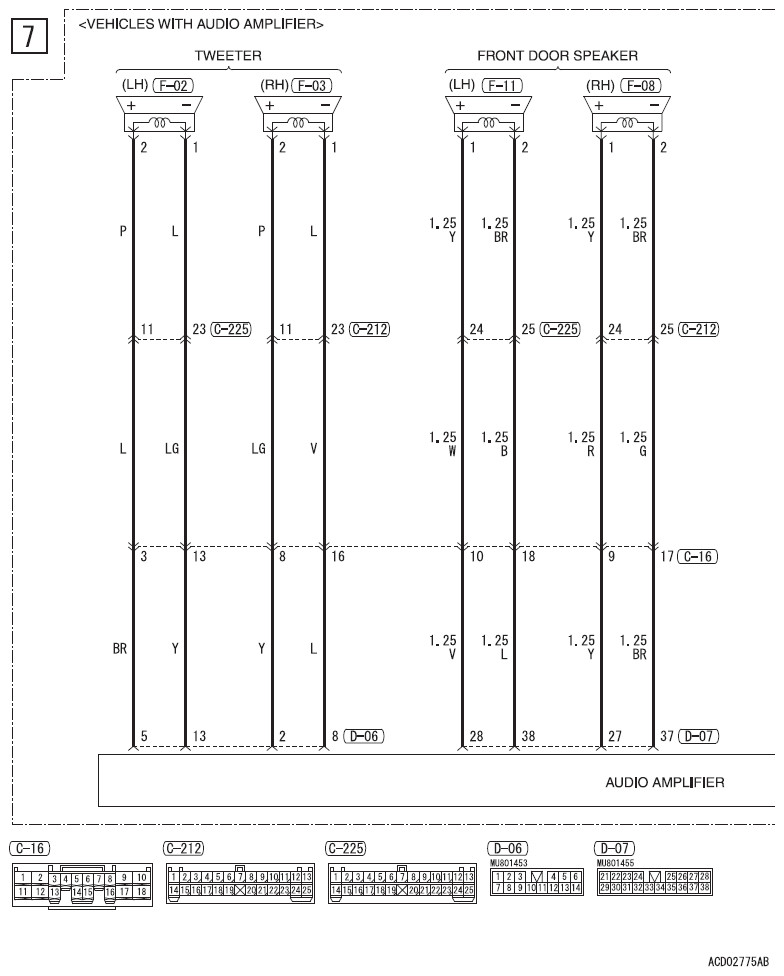

Fig 7: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (7 Of 13)

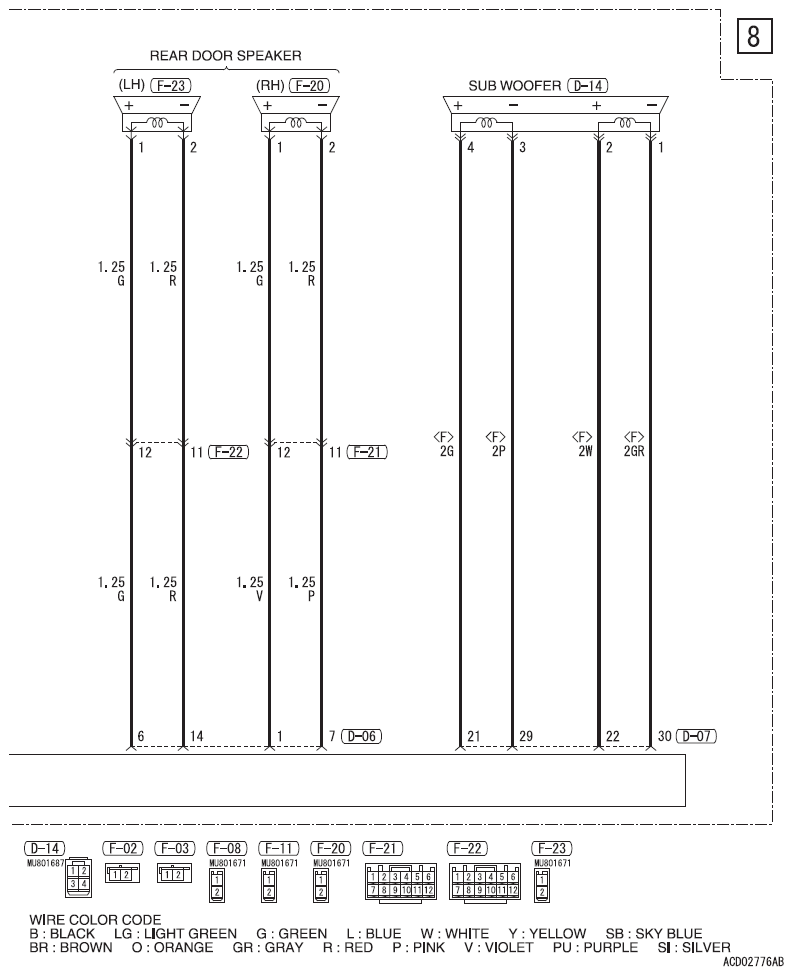

Fig 8: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (8 Of 13)

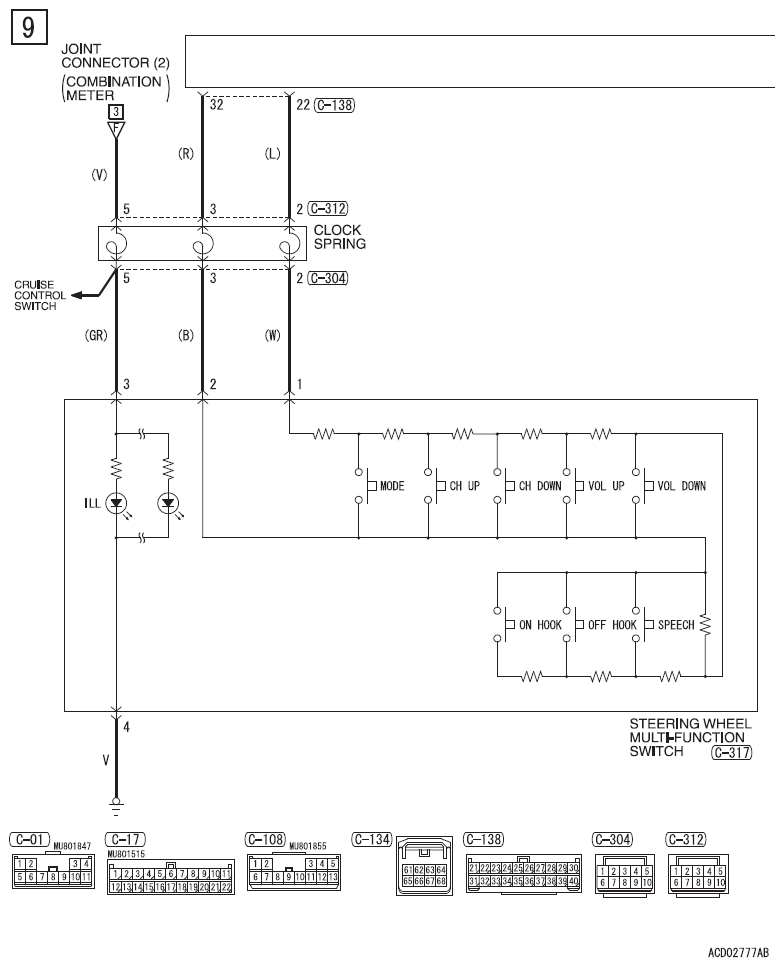

Fig 9: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (9 Of 13)

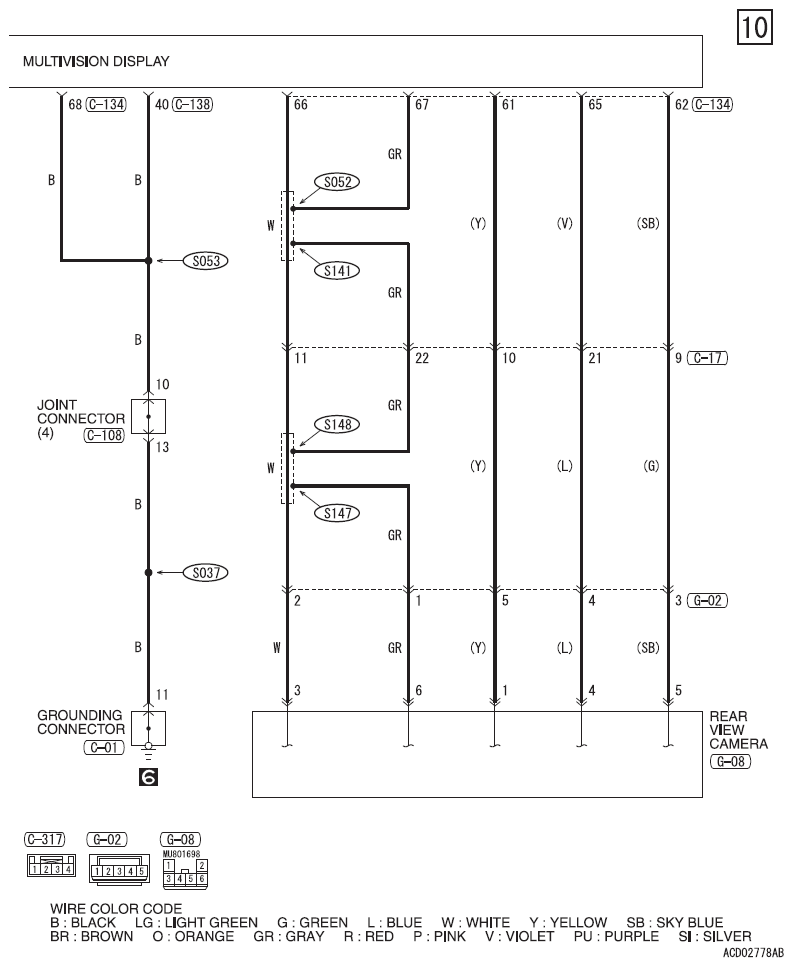

Fig 10: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (10 Of 13)

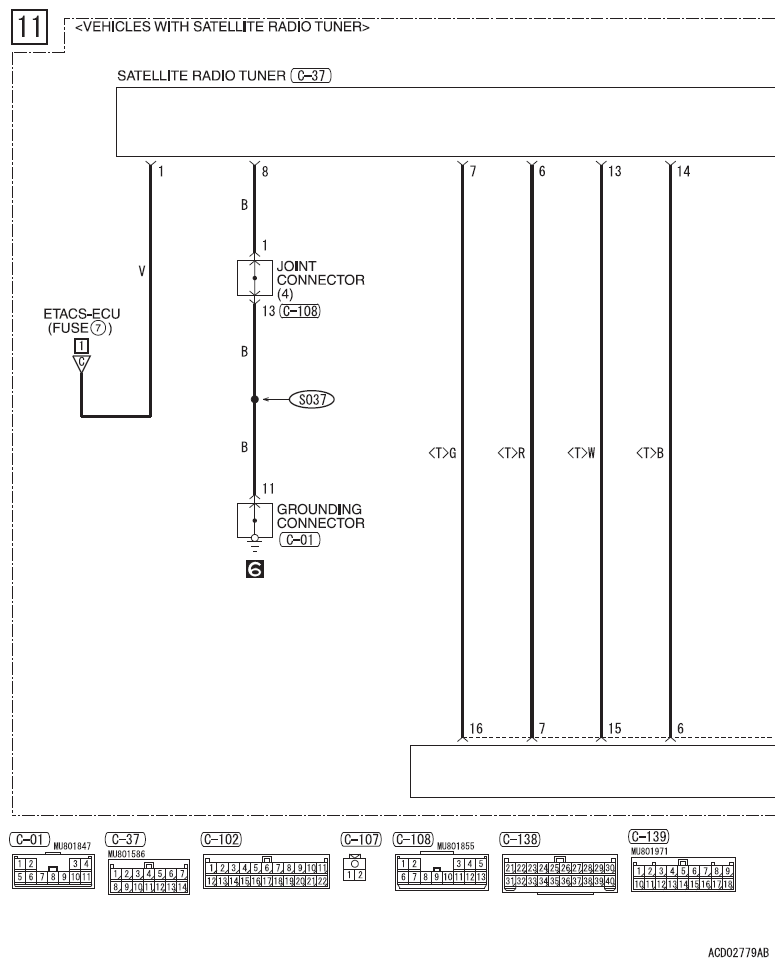

Fig 11: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (11 Of 13)

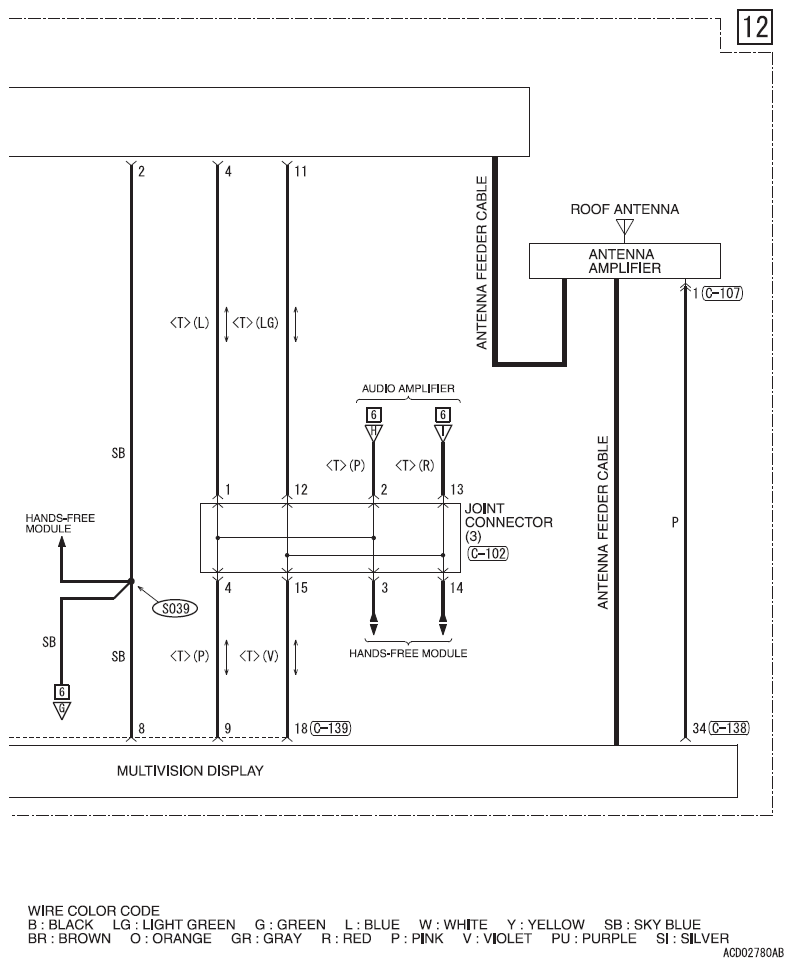

Fig 12: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (12 Of 13)

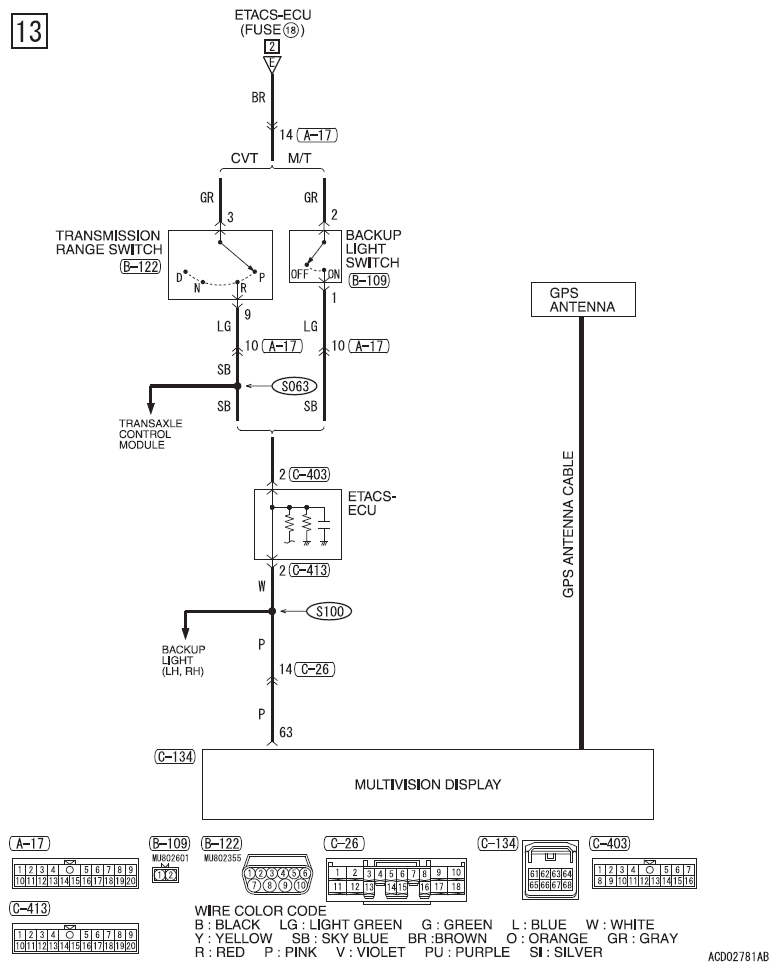

Fig 13: Mitsubishi Multi-Communication System (MMCS) - Circuit Diagram (13 Of 13)
