MFI System

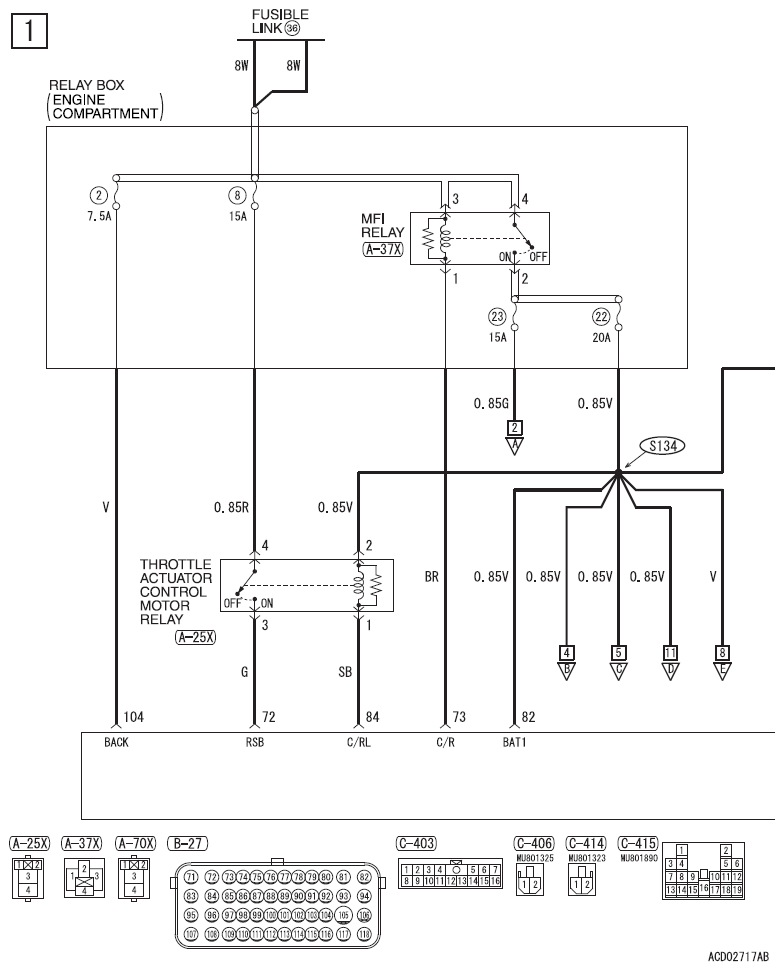

Fig 1: MFI System - Circuit Diagram (1 Of 11)

G09621998

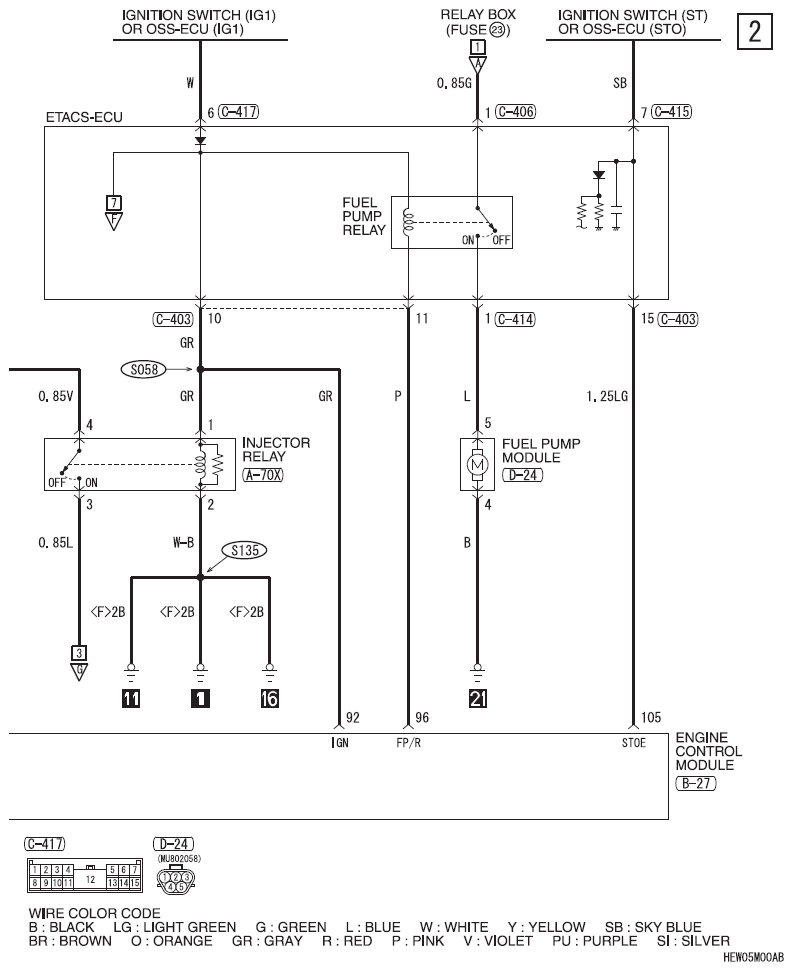

Fig 2: MFI System - Circuit Diagram (2 Of 11)

G09621999

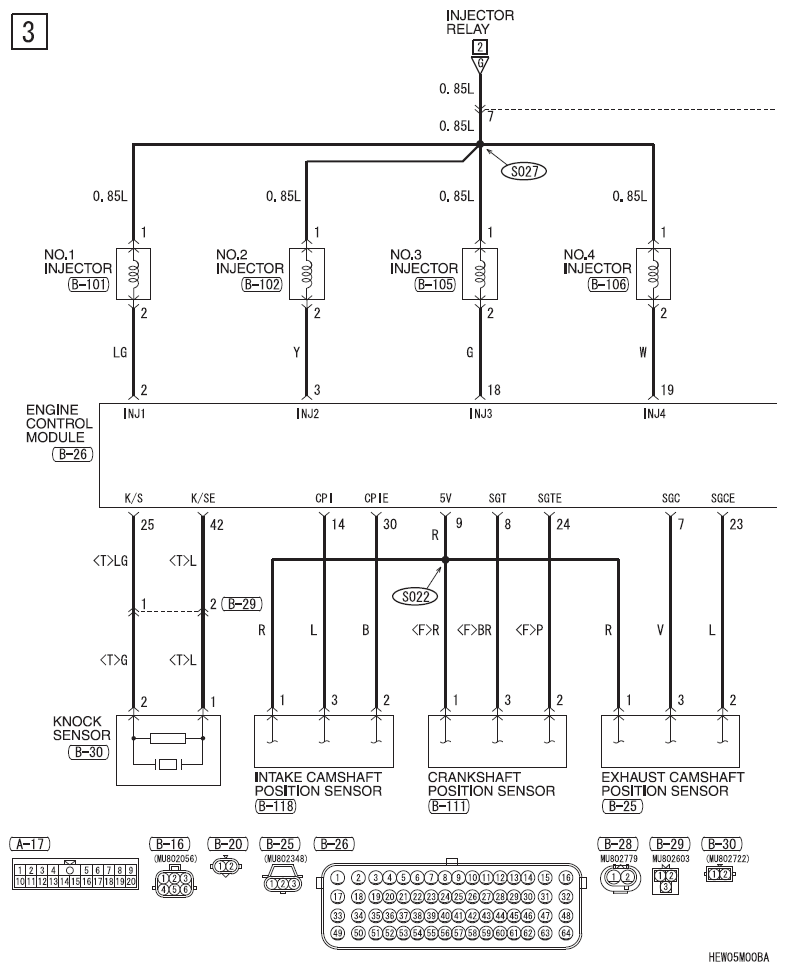

Fig 3: MFI System - Circuit Diagram (3 Of 11)

G09622000

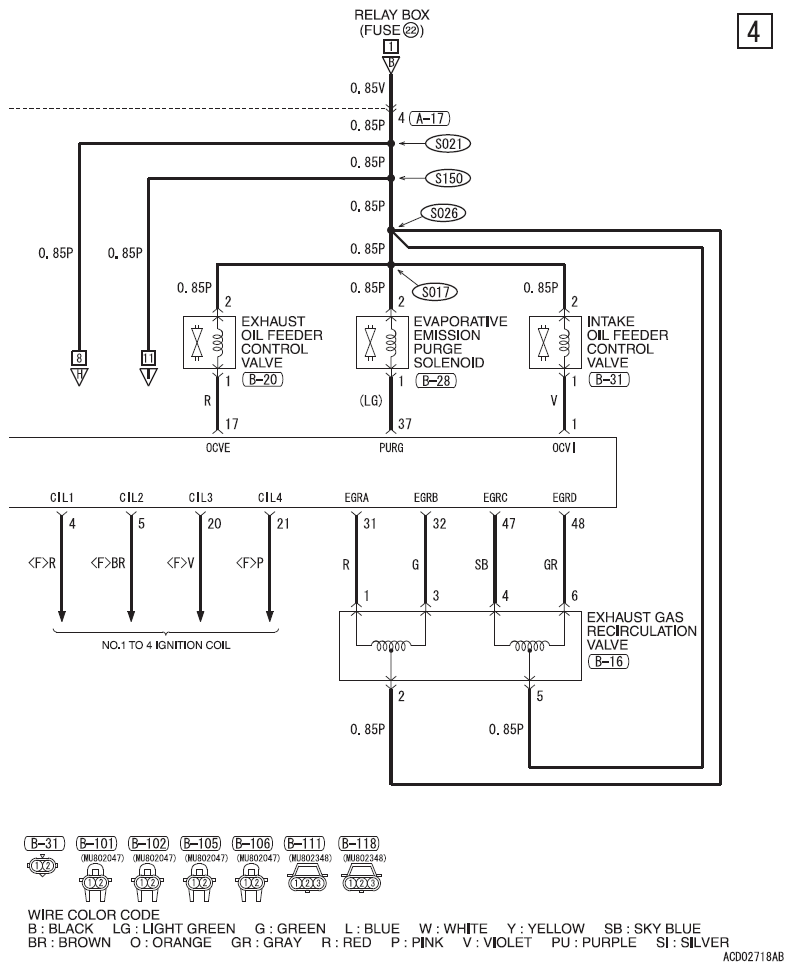

Fig 4: MFI System - Circuit Diagram (4 Of 11)

G09622001

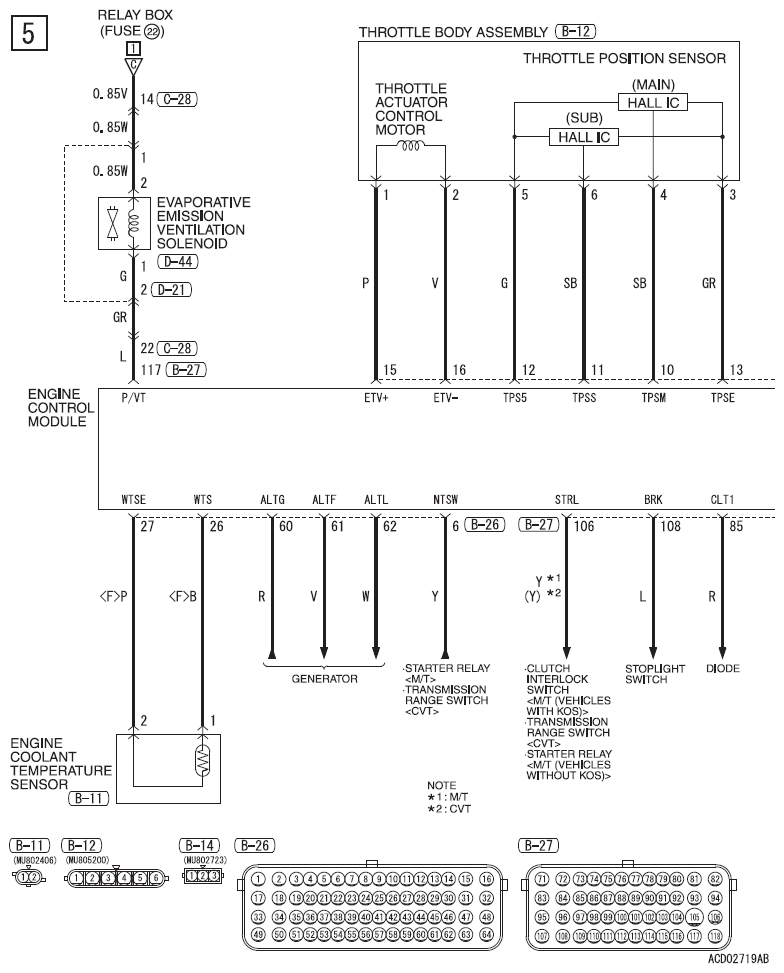

Fig 5: MFI System - Circuit Diagram (5 Of 11)

G09622002

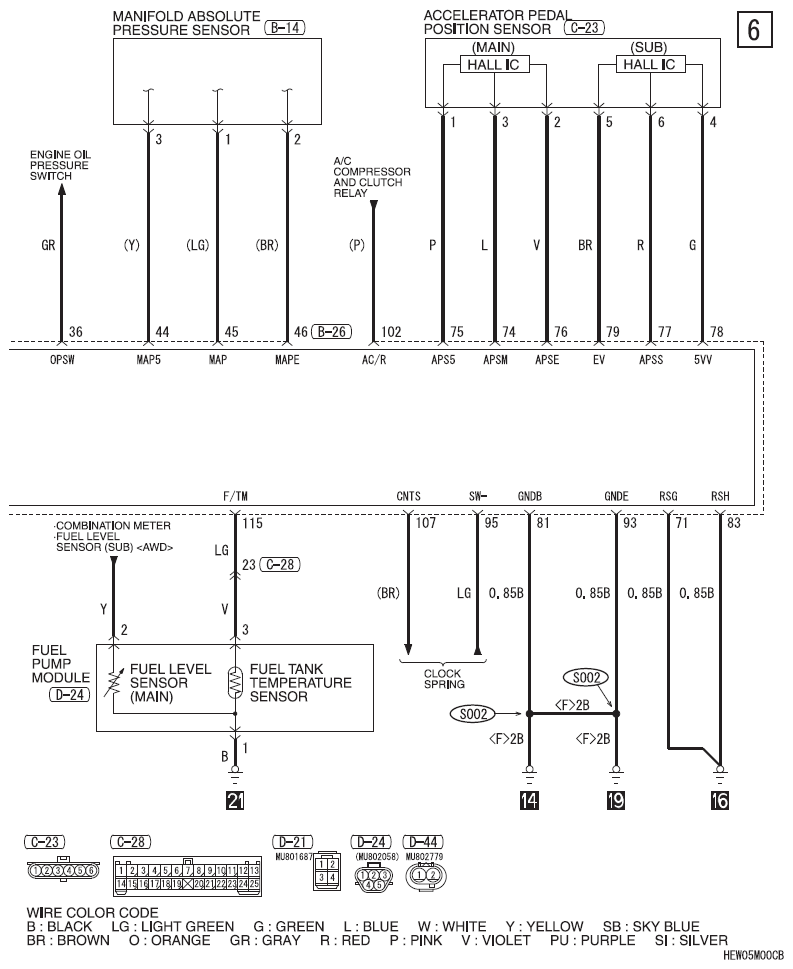

Fig 6: MFI System - Circuit Diagram (6 Of 11)

G09622003

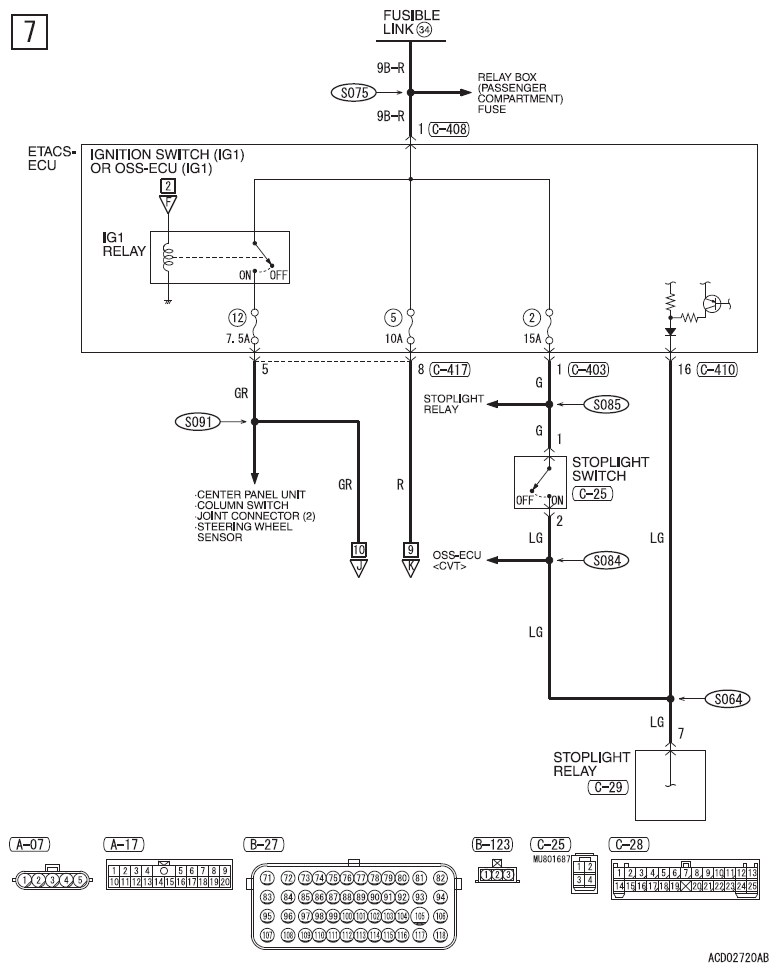

Fig 7: MFI System - Circuit Diagram (7 Of 11)

G09622004

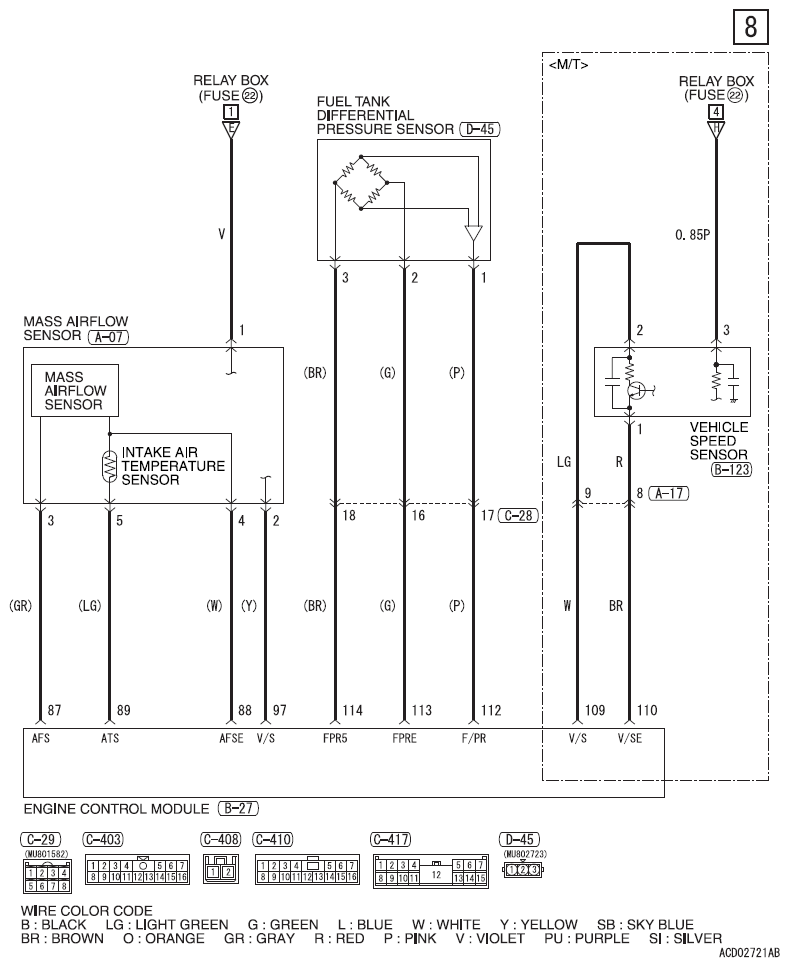

Fig 8: MFI System - Circuit Diagram (8 Of 11)

G09622005

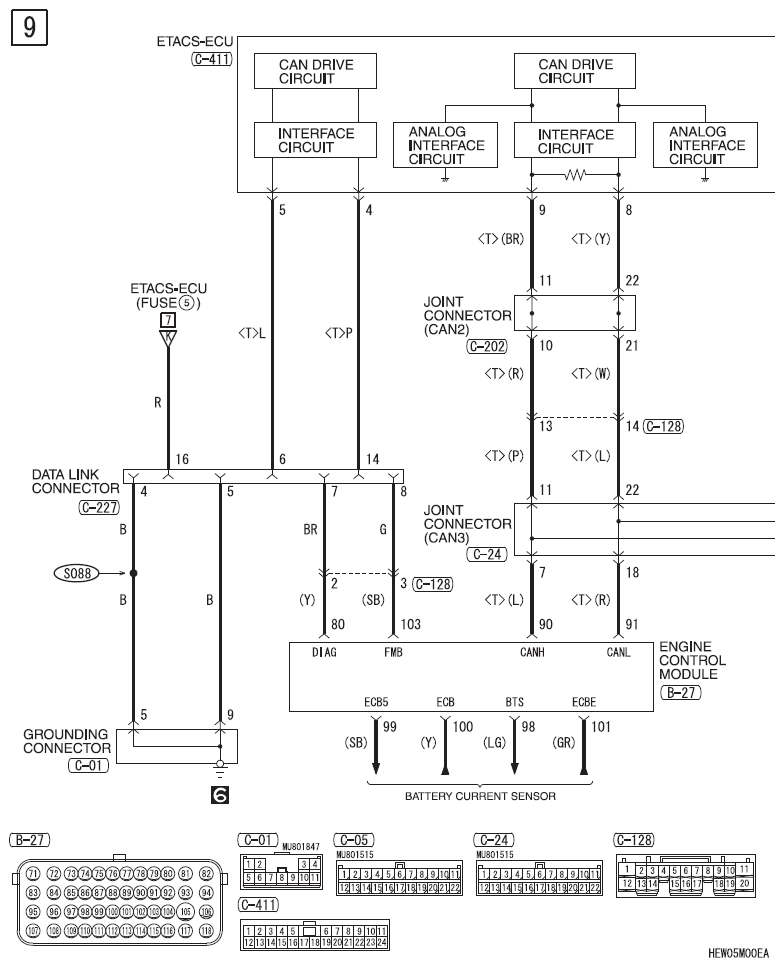

Fig 9: MFI System - Circuit Diagram (9 Of 11)

G09622006

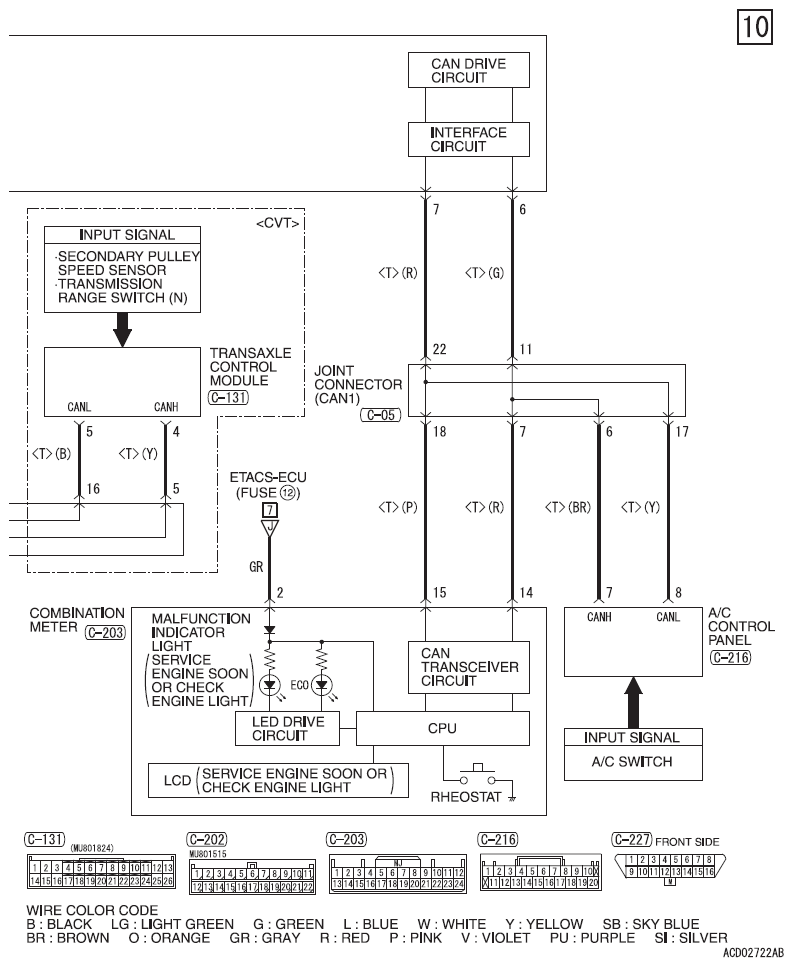

Fig 10: MFI System - Circuit Diagram (10 Of 11)

G09622007

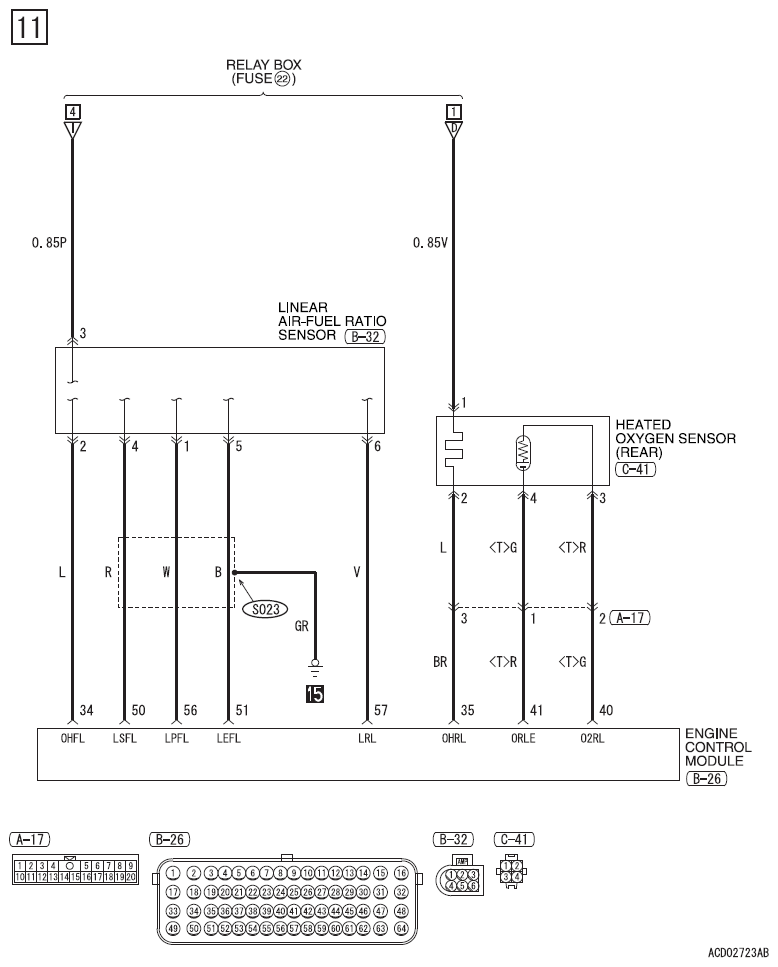

Fig 11: MFI System - Circuit Diagram (11 Of 11)

G09622008
