Joint Connector

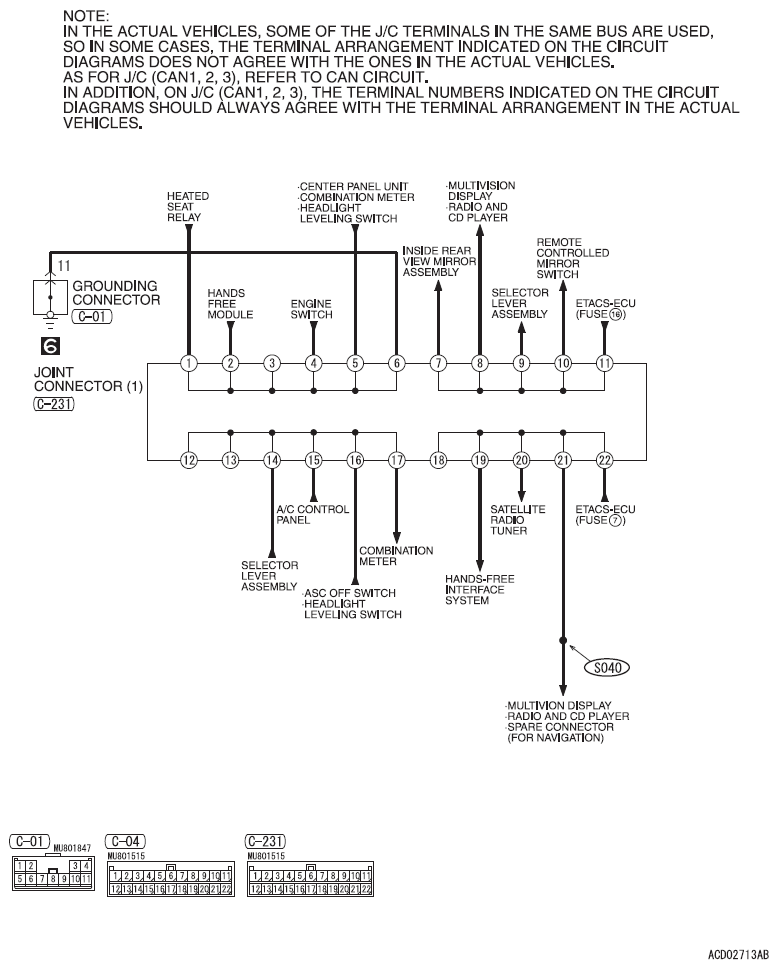

Fig 1: Joint Connector - Circuit Diagram (1 Of 4)
G09621967
Fig 2: Joint Connector - Circuit Diagram (2 Of 4)
G09621968

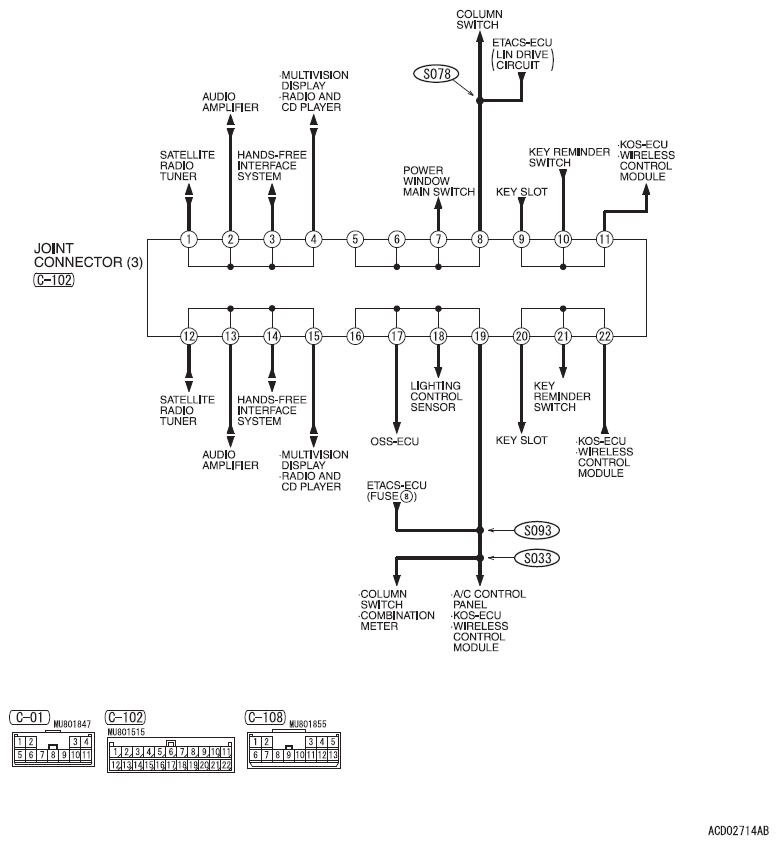

Fig 3: Joint Connector - Circuit Diagram (3 Of 4)
G09621969

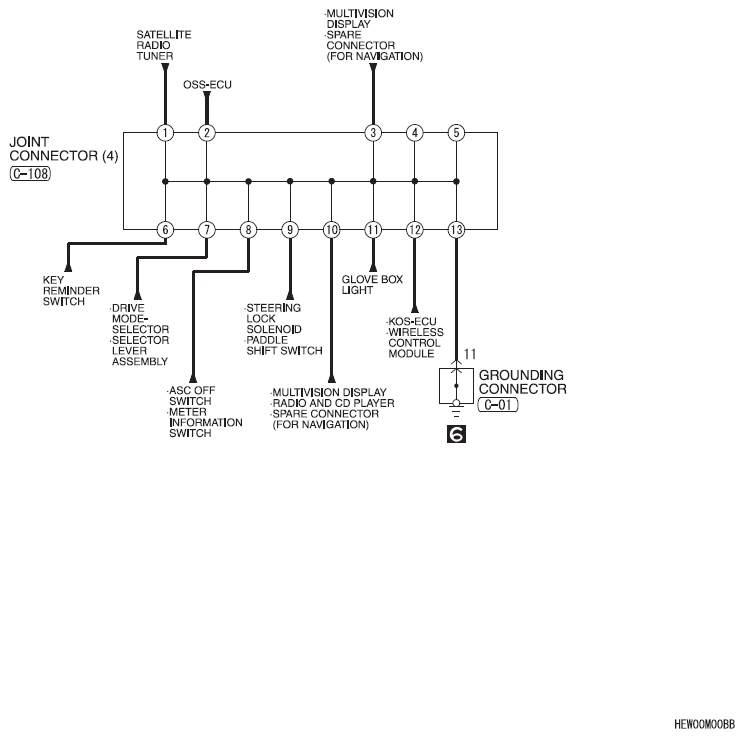

Fig 4: Joint Connector - Circuit Diagram (4 Of 4)
G09621970
