Mitsubishi
>>
2014
>>
RVR ES
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Circuit Diagrams
>>
Ignition System
Ignition System

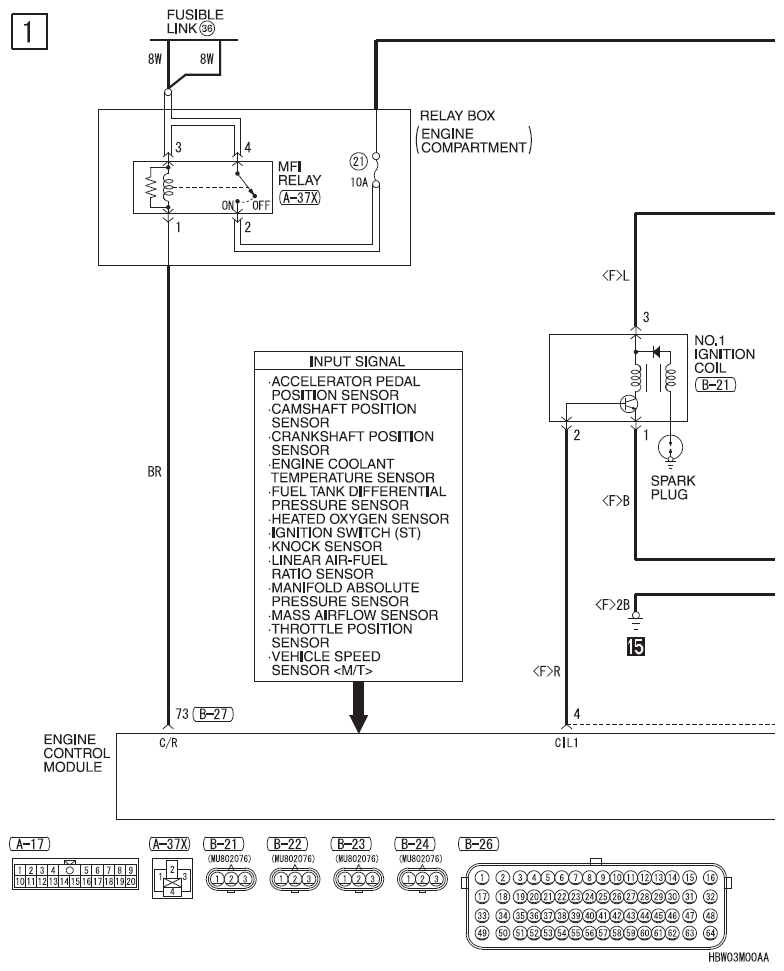

Fig 1: Ignition System - Circuit Diagram (1 Of 3)

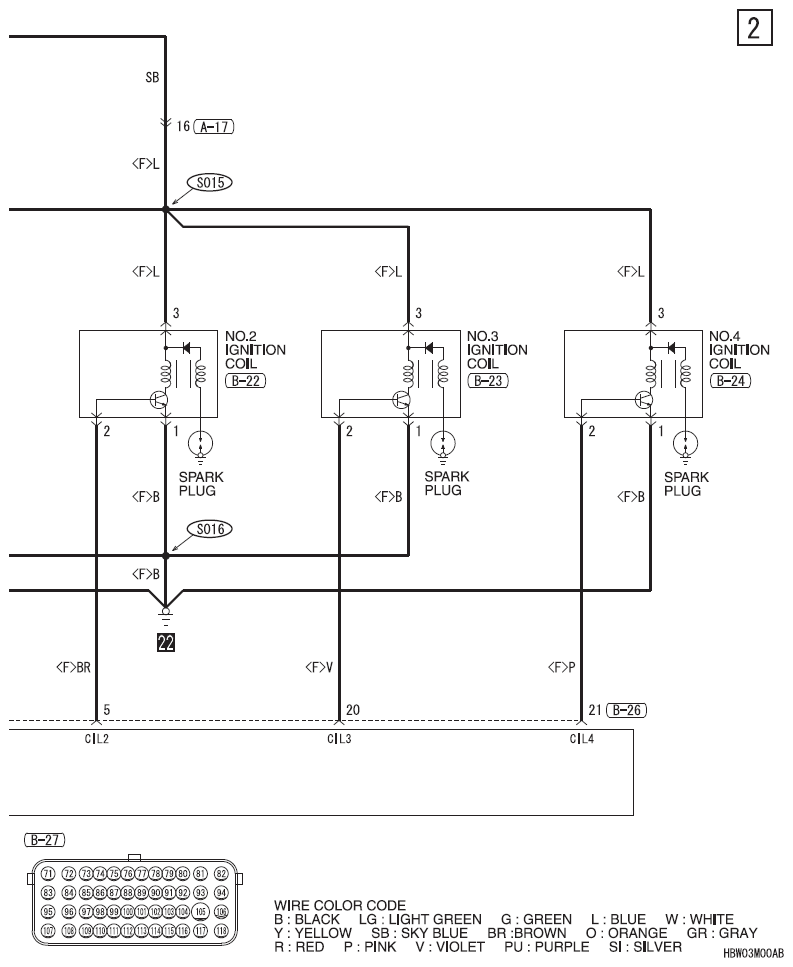

Fig 2: Ignition System - Circuit Diagram (2 Of 3)

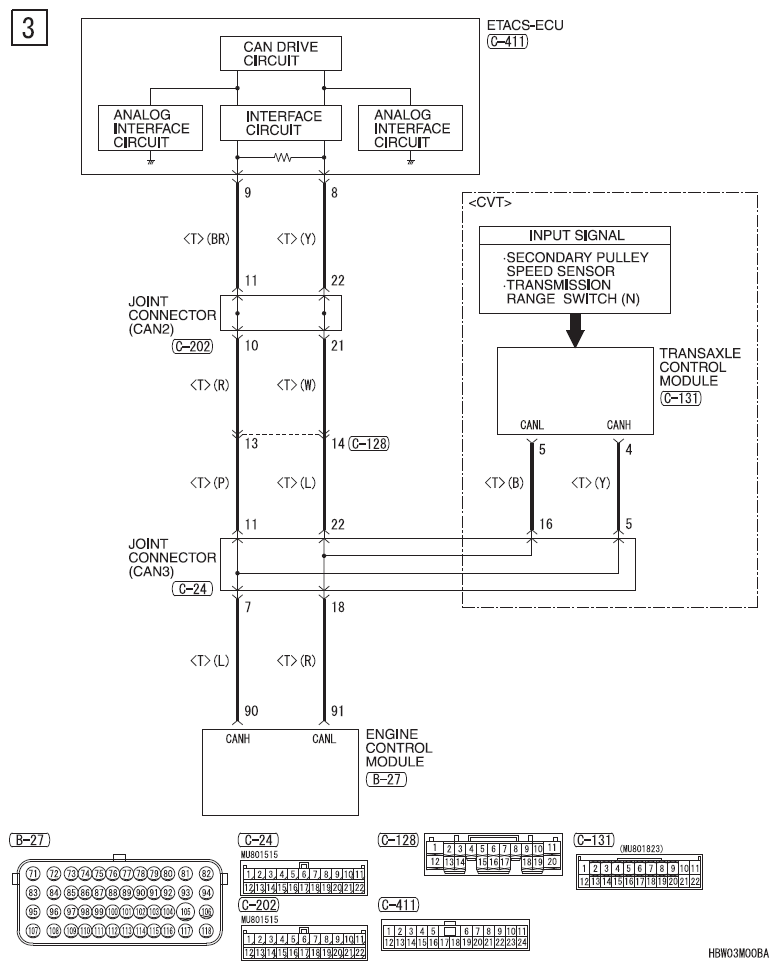

Fig 3: Ignition System - Circuit Diagram (3 Of 3)
