Headlight Leveling System

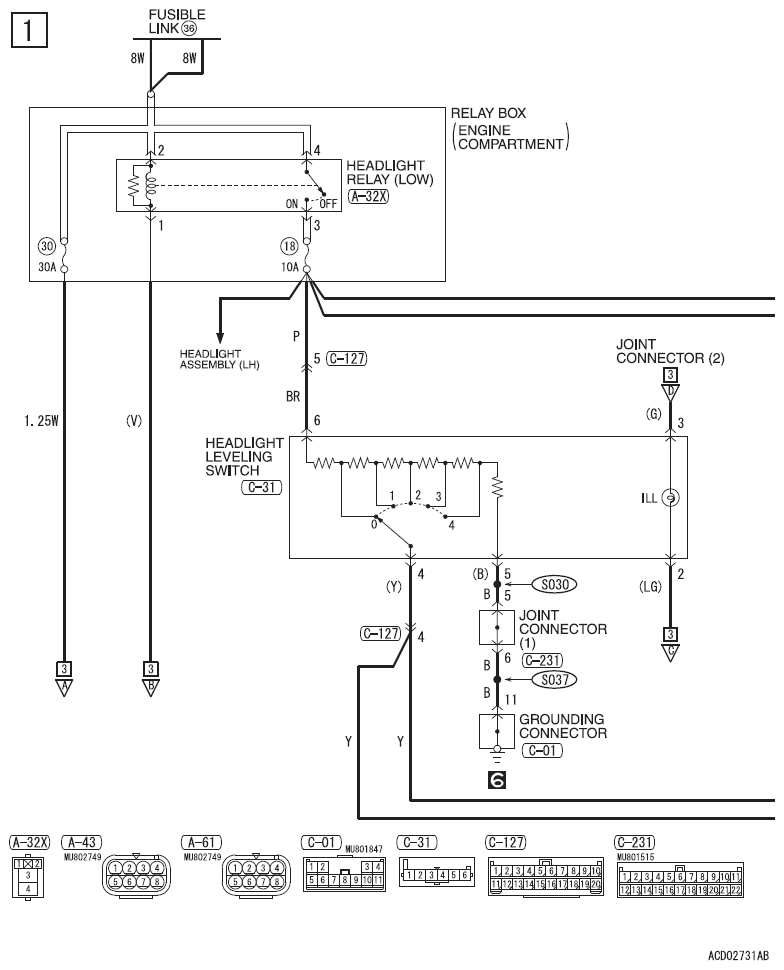

Fig 1: Headlight Leveling System - Circuit Diagram (1 Of 4)
G09622051

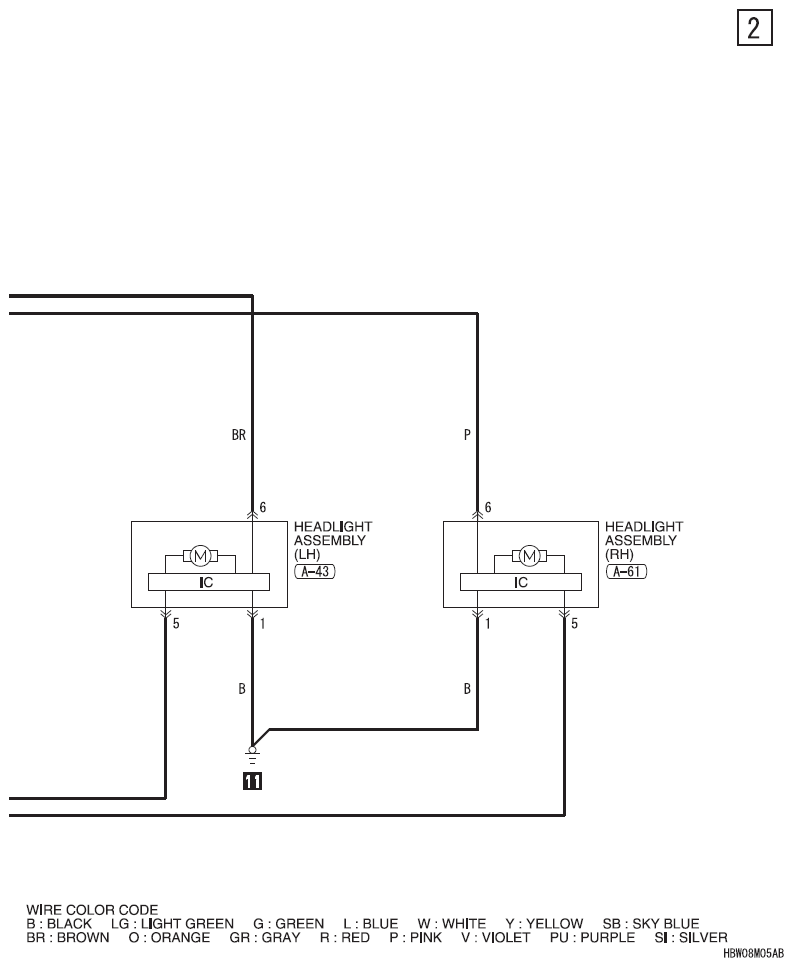

Fig 2: Headlight Leveling System - Circuit Diagram (2 Of 4)
G09622052

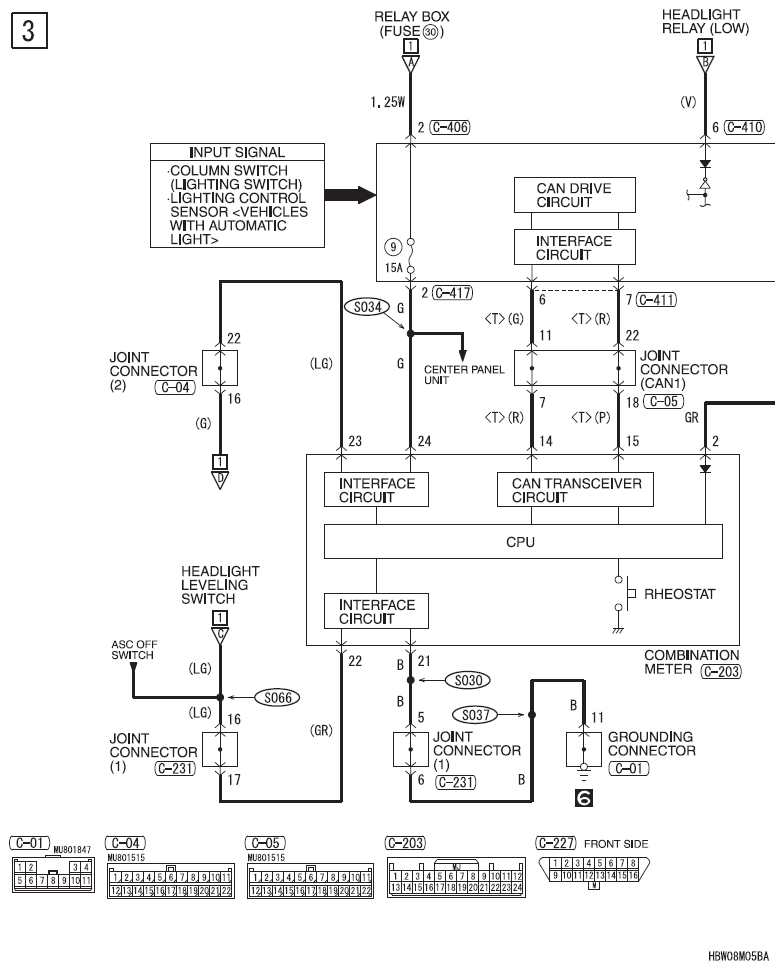

Fig 3: Headlight Leveling System - Circuit Diagram (3 Of 4)
G09622053

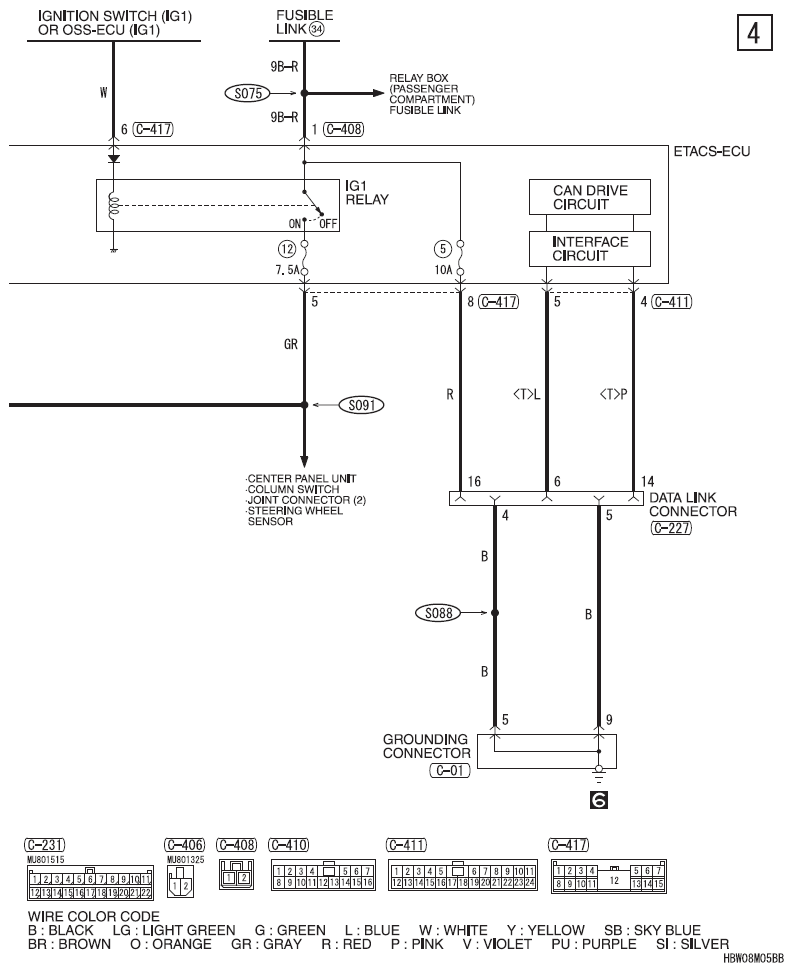

Fig 4: Headlight Leveling System - Circuit Diagram (4 Of 4)
G09622054
