Hands-Free Interface System < Vehicles With MMCS >

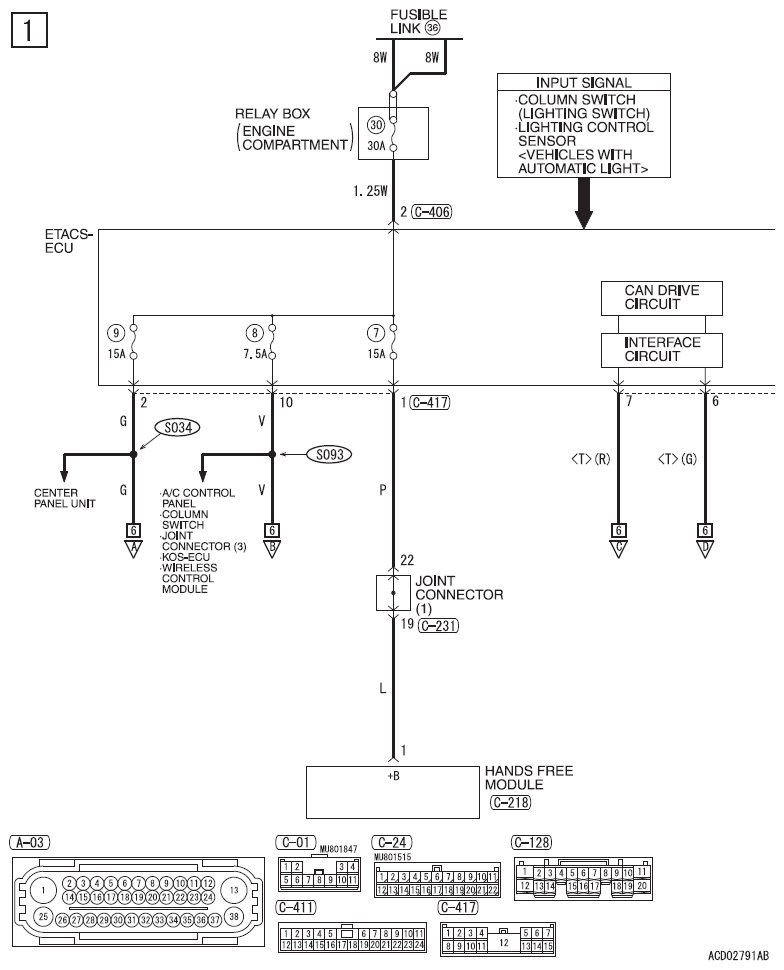

Fig 1: Hands-Free Interface System (Vehicles With MMCS) - Circuit Diagram (1 Of 7)

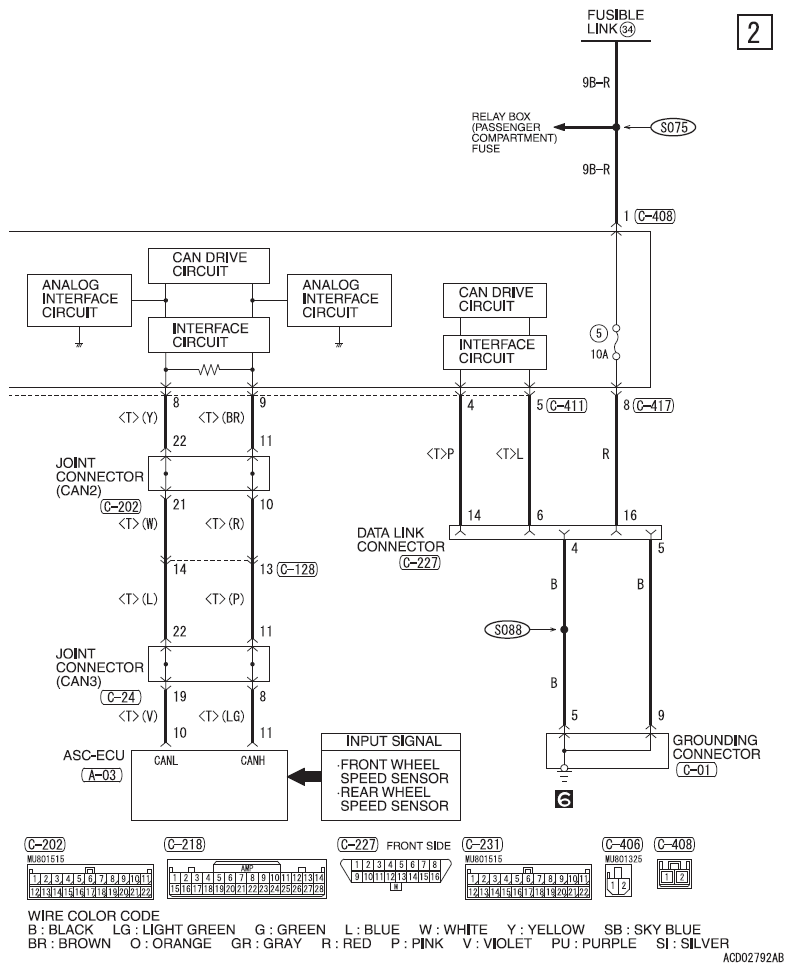

Fig 2: Hands-Free Interface System (Vehicles With MMCS) - Circuit Diagram (2 Of 7)

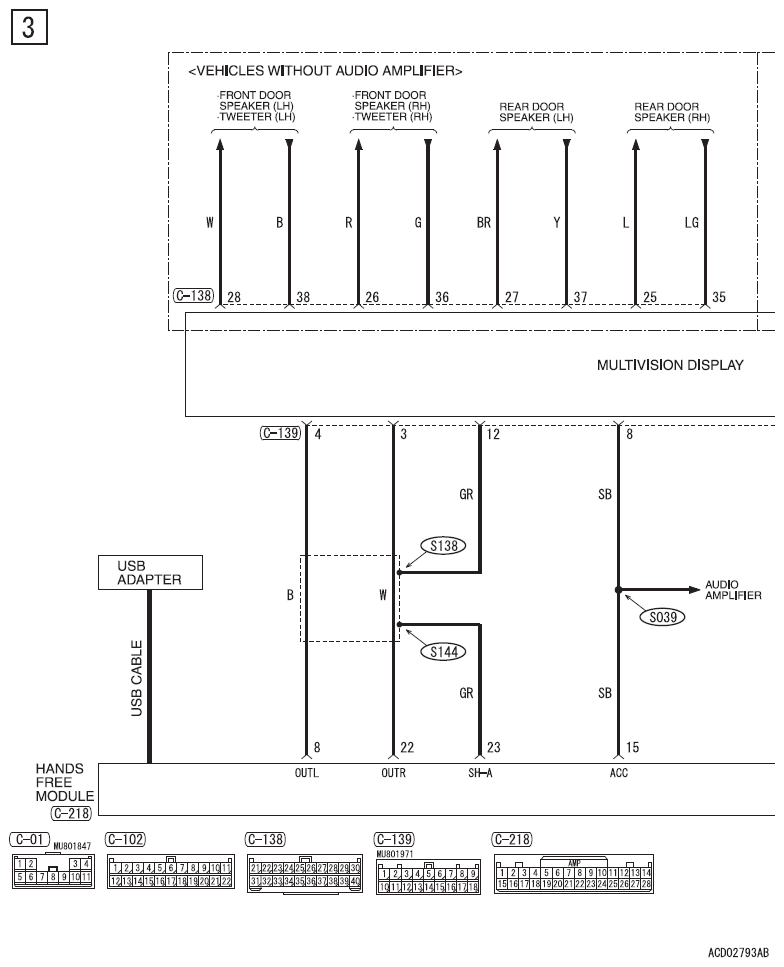

Fig 3: Hands-Free Interface System (Vehicles With MMCS) - Circuit Diagram (3 Of 7)

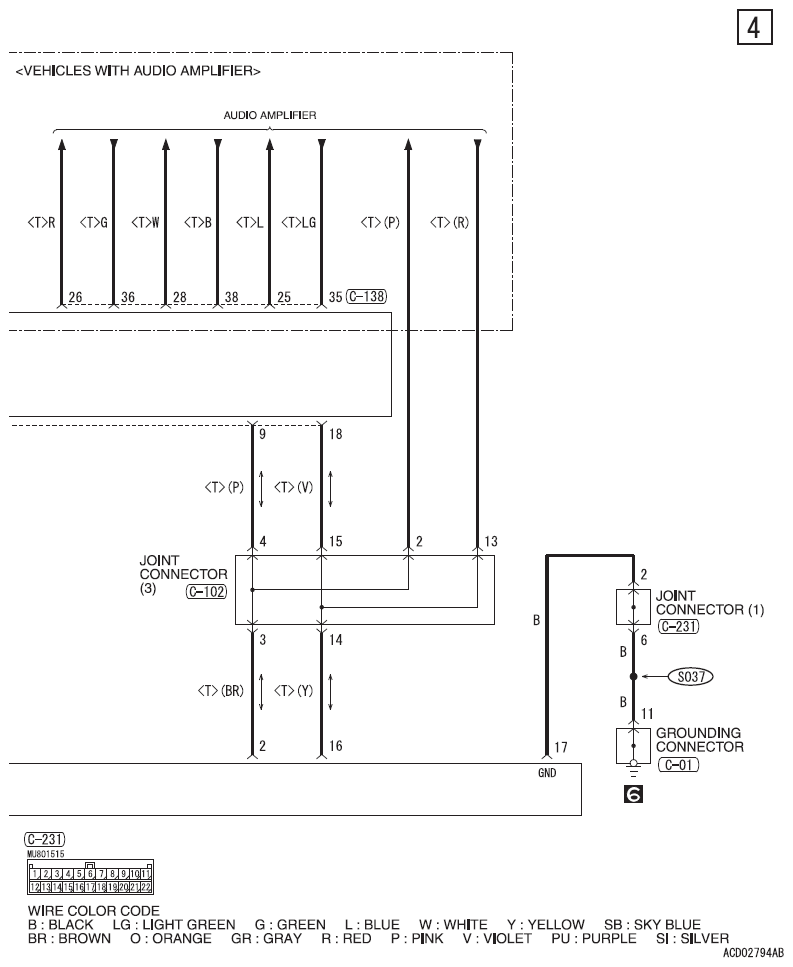

Fig 4: Hands-Free Interface System (Vehicles With MMCS) - Circuit Diagram (4 Of 7)

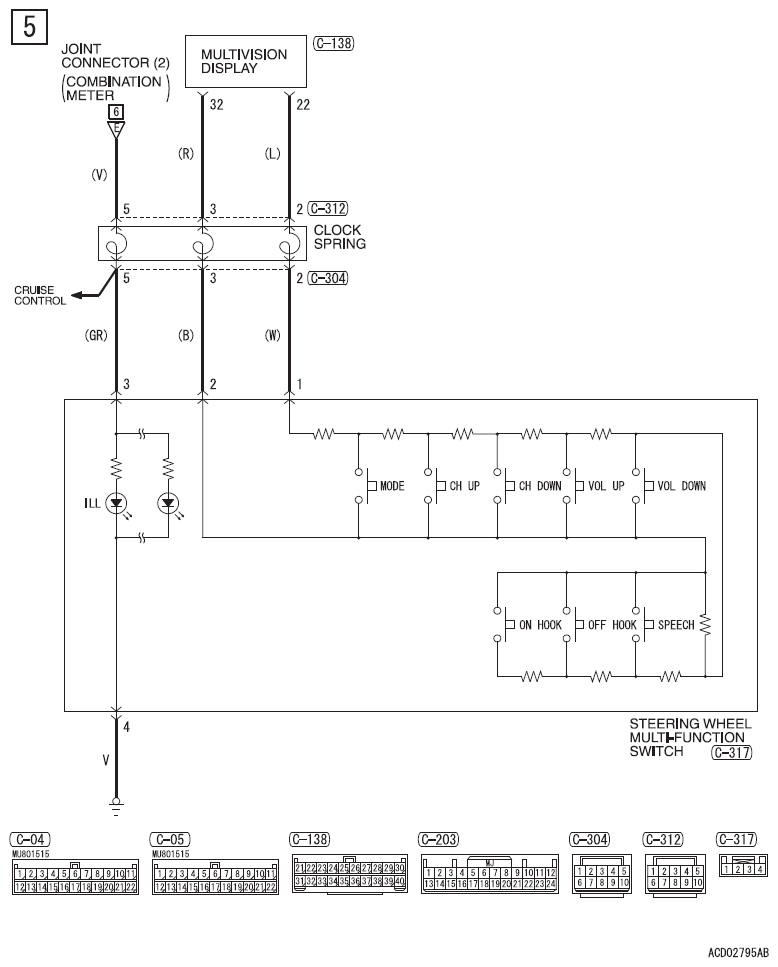

Fig 5: Hands-Free Interface System (Vehicles With MMCS) - Circuit Diagram (5 Of 7)

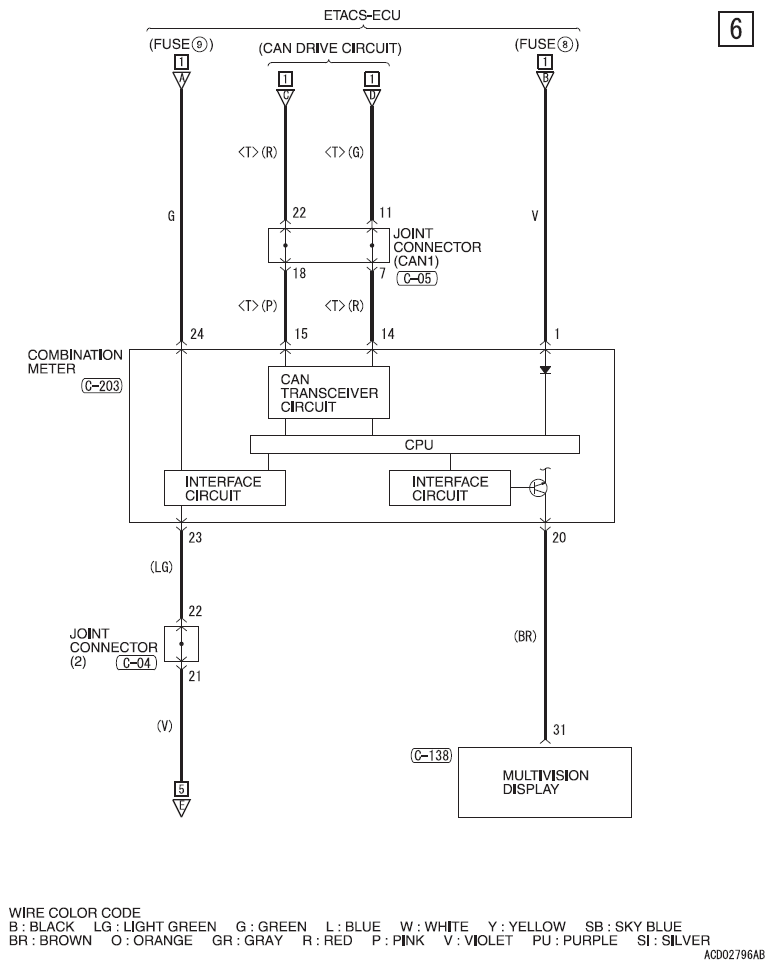

Fig 6: Hands-Free Interface System (Vehicles With MMCS) - Circuit Diagram (6 Of 7)

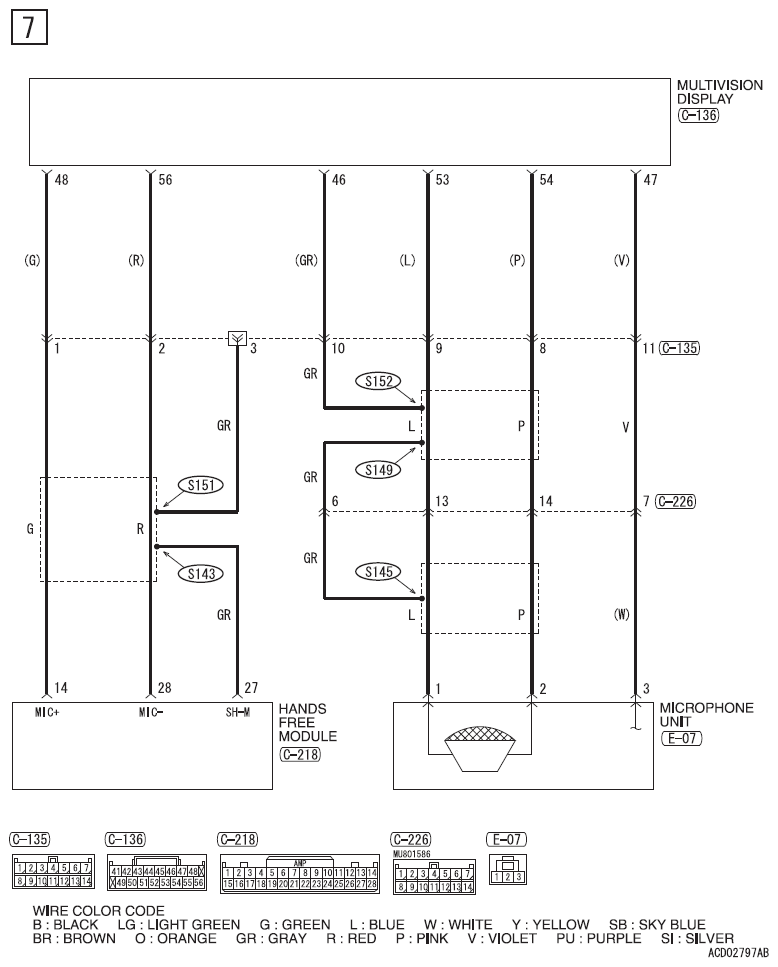

Fig 7: Hands-Free Interface System (Vehicles With MMCS) - Circuit Diagram (7 Of 7)
