Fog Light
Fog Light

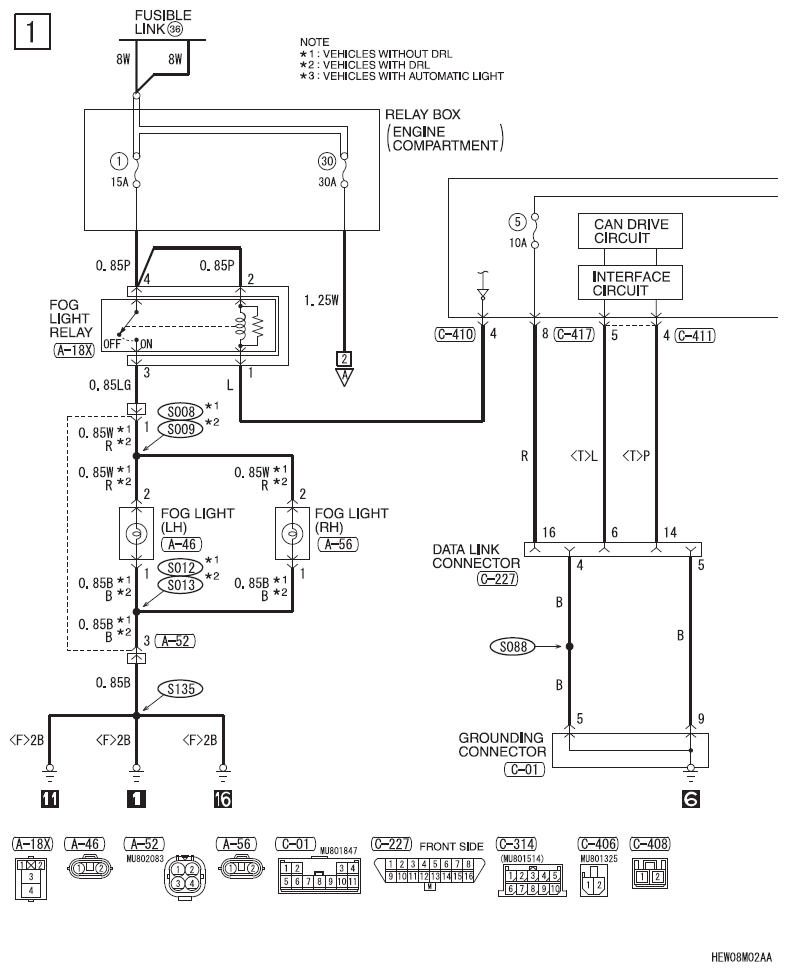

Fig 1: Fog Light - Circuit Diagram (1 Of 3)

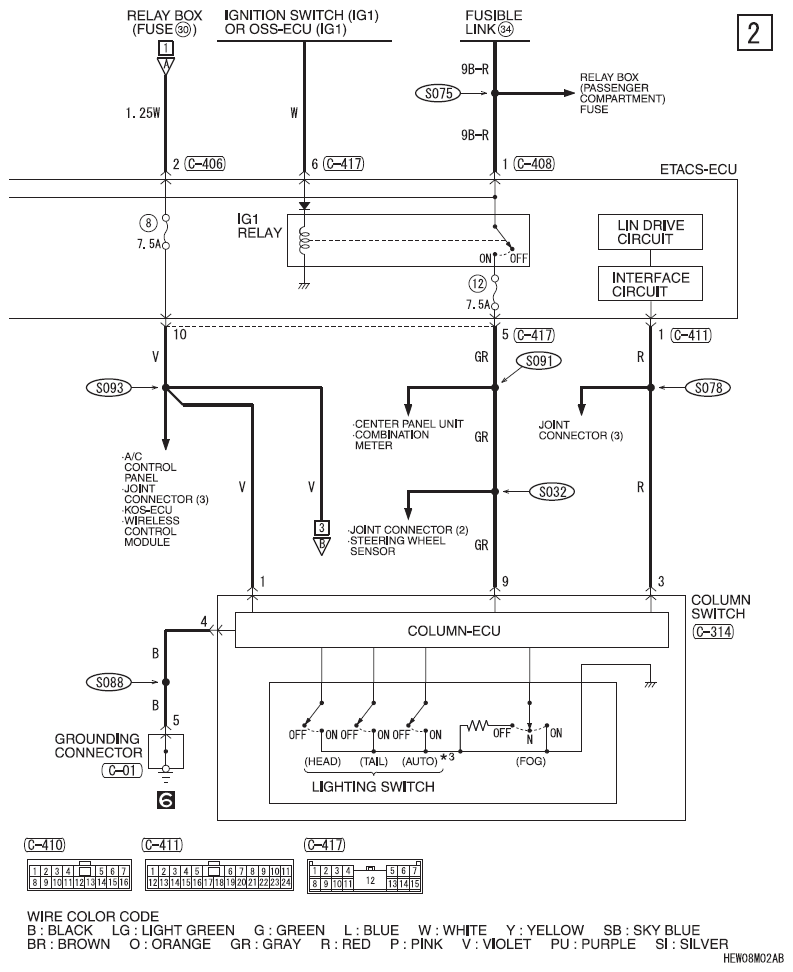

Fig 2: Fog Light - Circuit Diagram (2 Of 3)

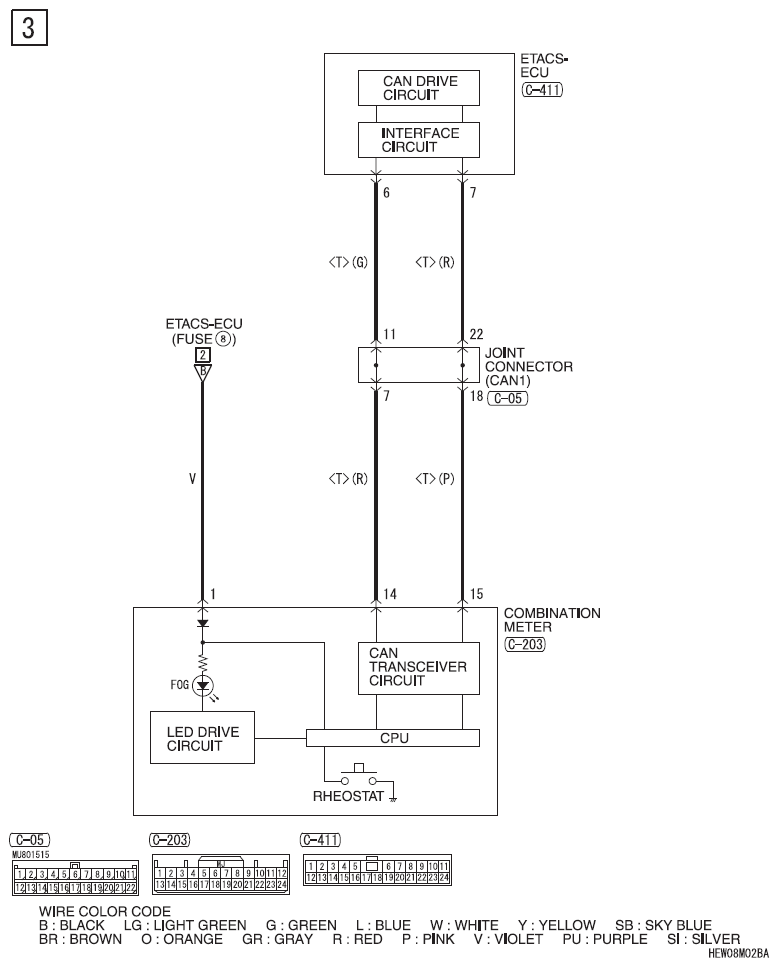

Fig 3: Fog Light - Circuit Diagram (3 Of 3)
