Electronic Controlled AWD

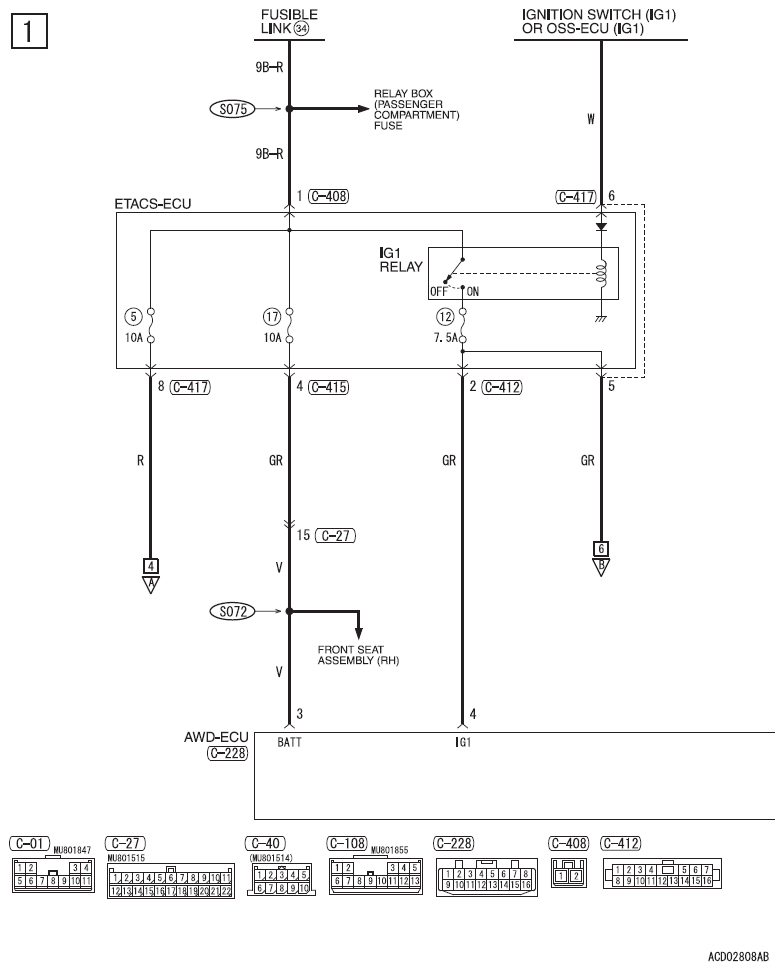

Fig 1: Electronic Controlled AWD - Circuit Diagram (1 Of 6)

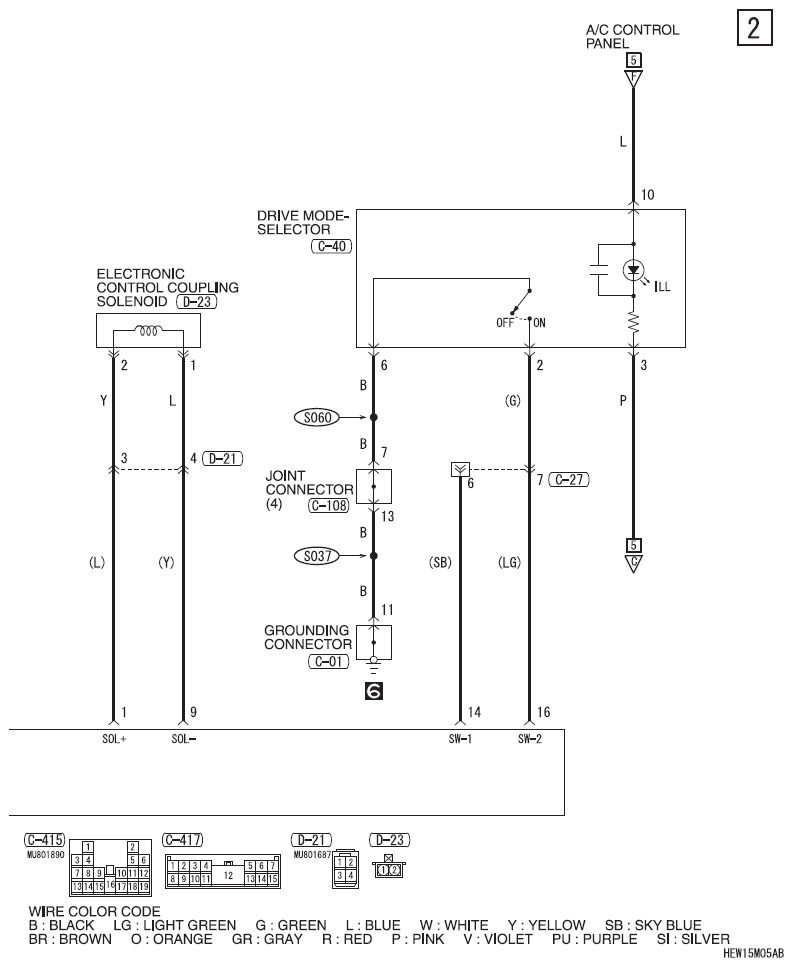

Fig 2: Electronic Controlled AWD - Circuit Diagram (2 Of 6)

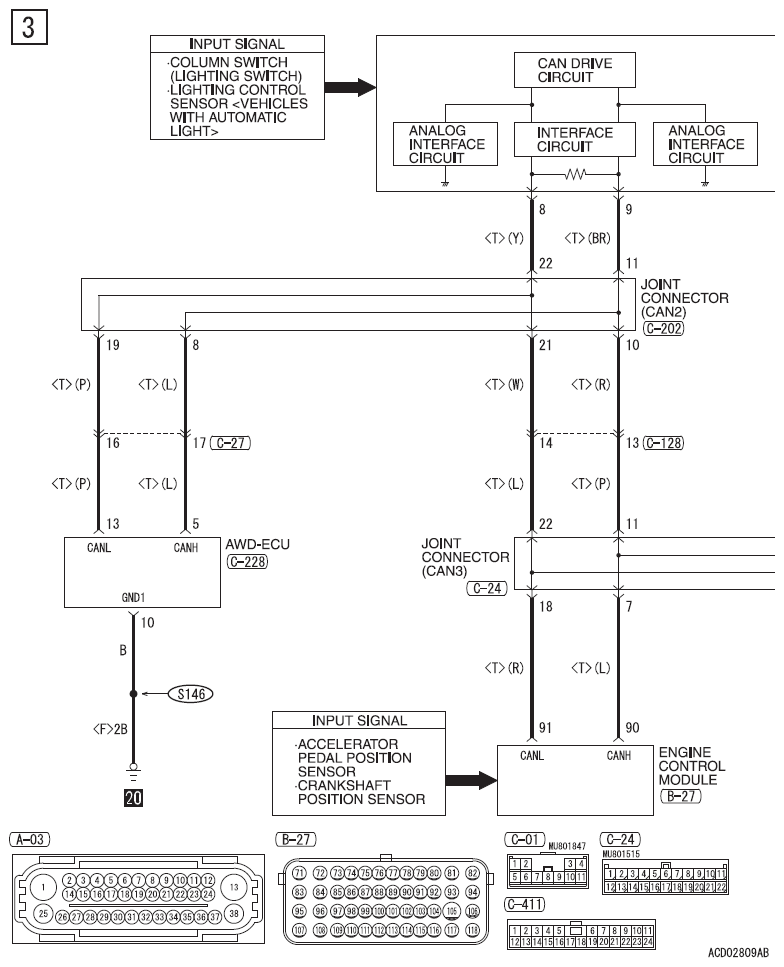

Fig 3: Electronic Controlled AWD - Circuit Diagram (3 Of 6)

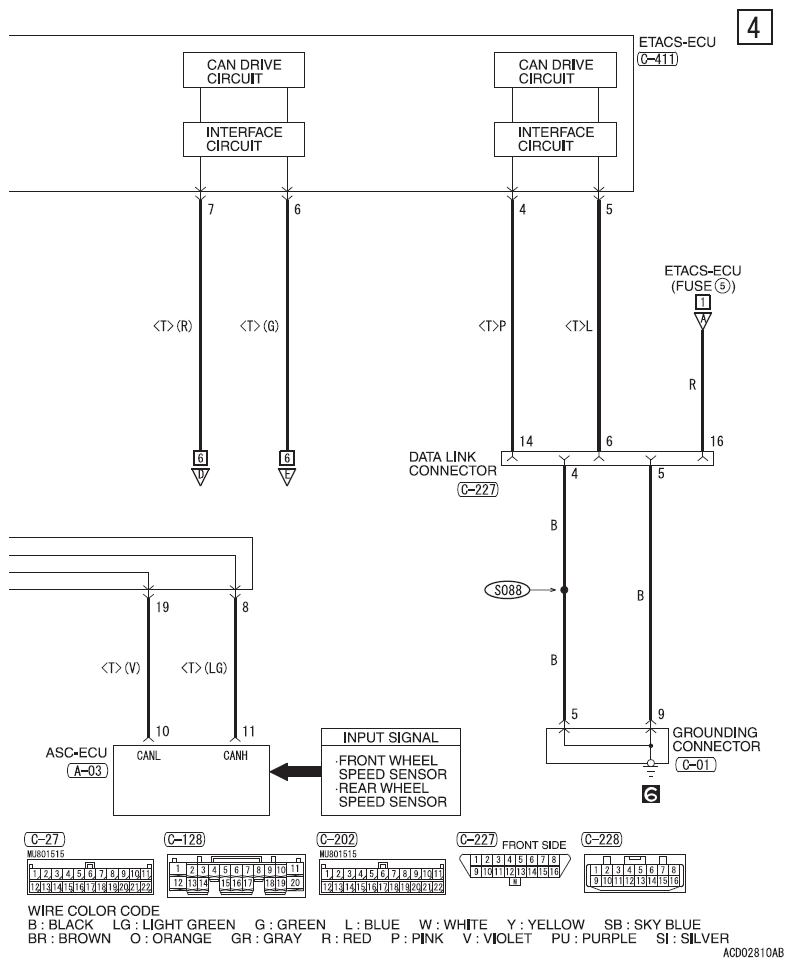

Fig 4: Electronic Controlled AWD - Circuit Diagram (4 Of 6)

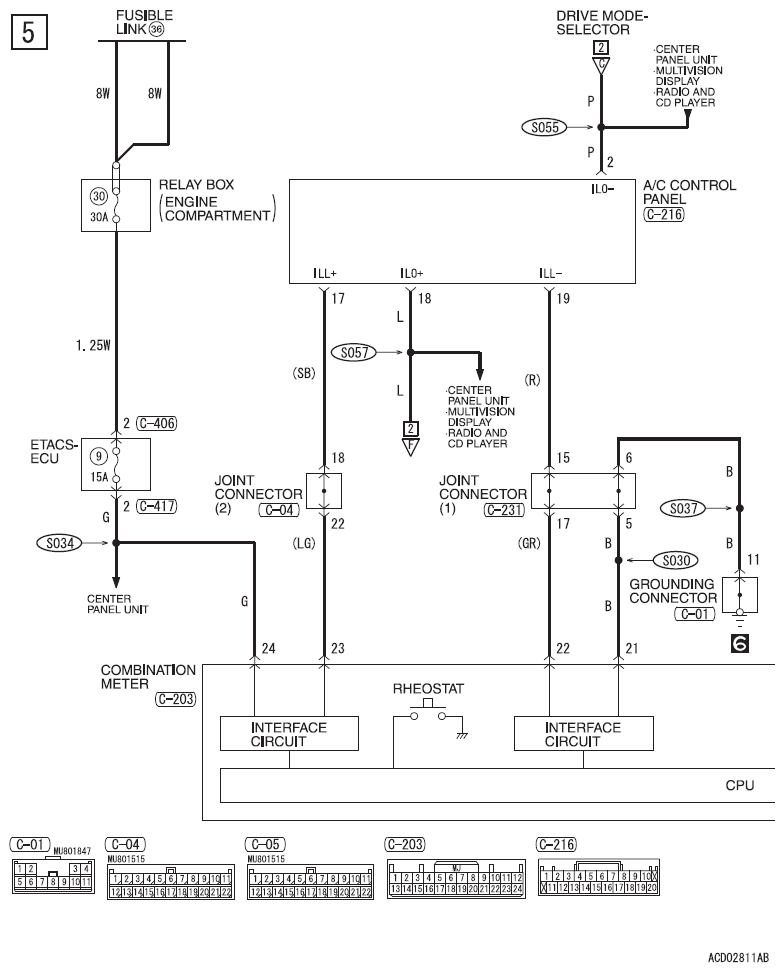

Fig 5: Electronic Controlled AWD - Circuit Diagram (5 Of 6)

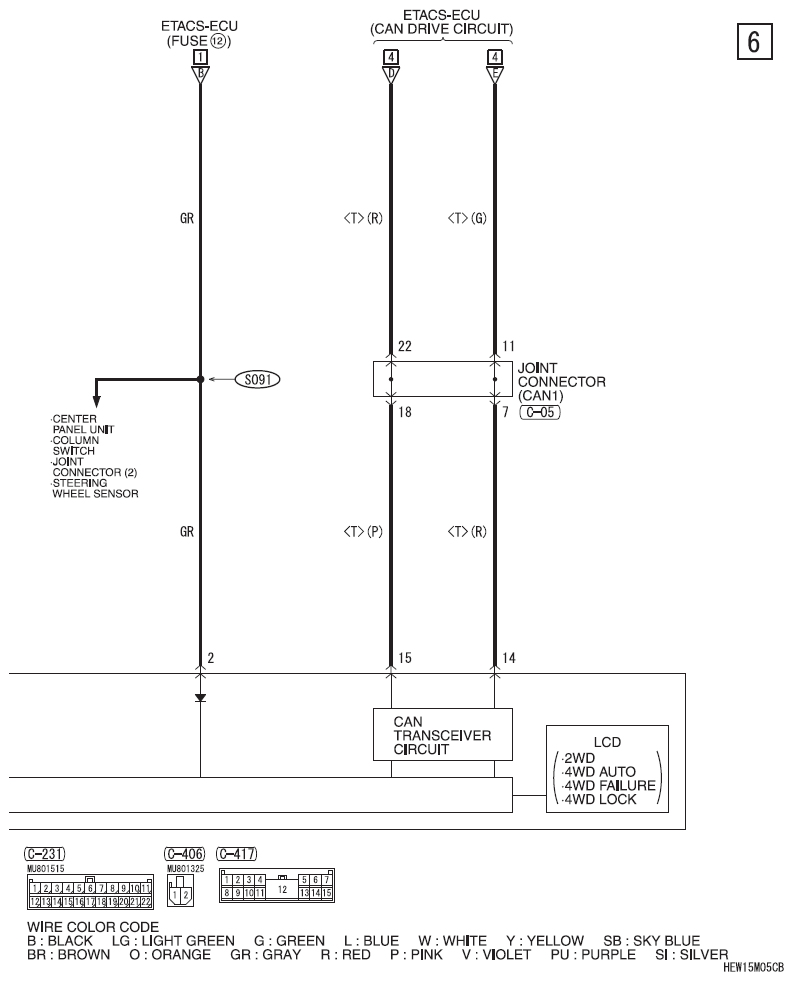

Fig 6: Electronic Controlled AWD - Circuit Diagram (6 Of 6)
