Electric Power Steering System

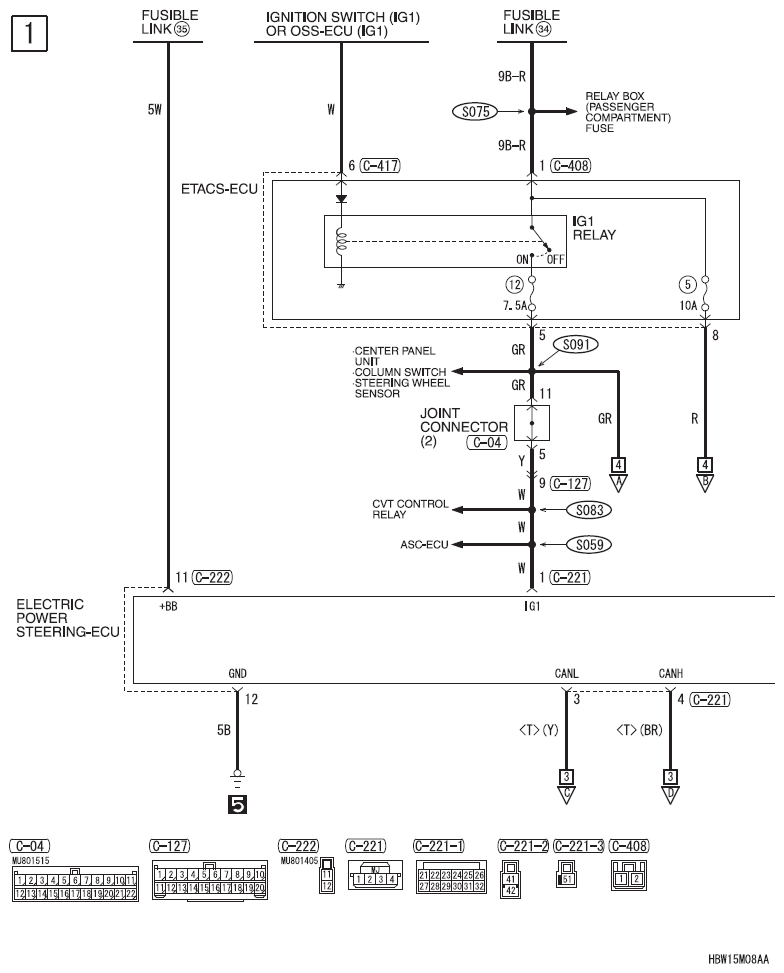

Fig 1: Electric Power Steering System - Circuit Diagram (1 Of 4)
G09622242

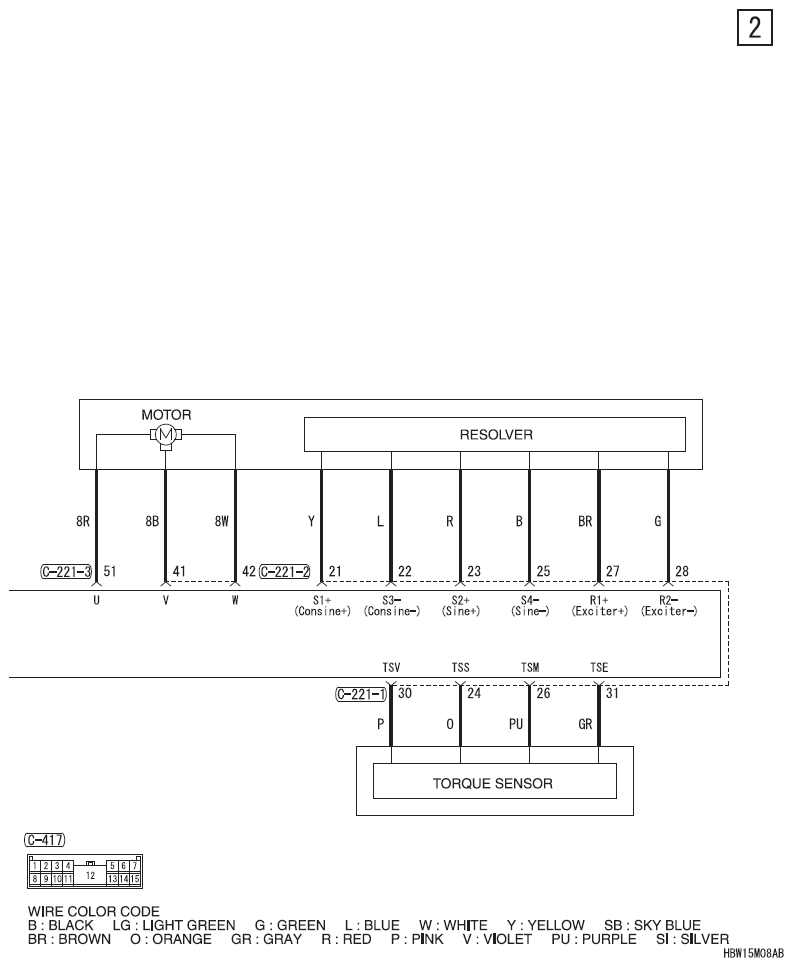

Fig 2: Electric Power Steering System - Circuit Diagram (2 Of 4)
G09622243

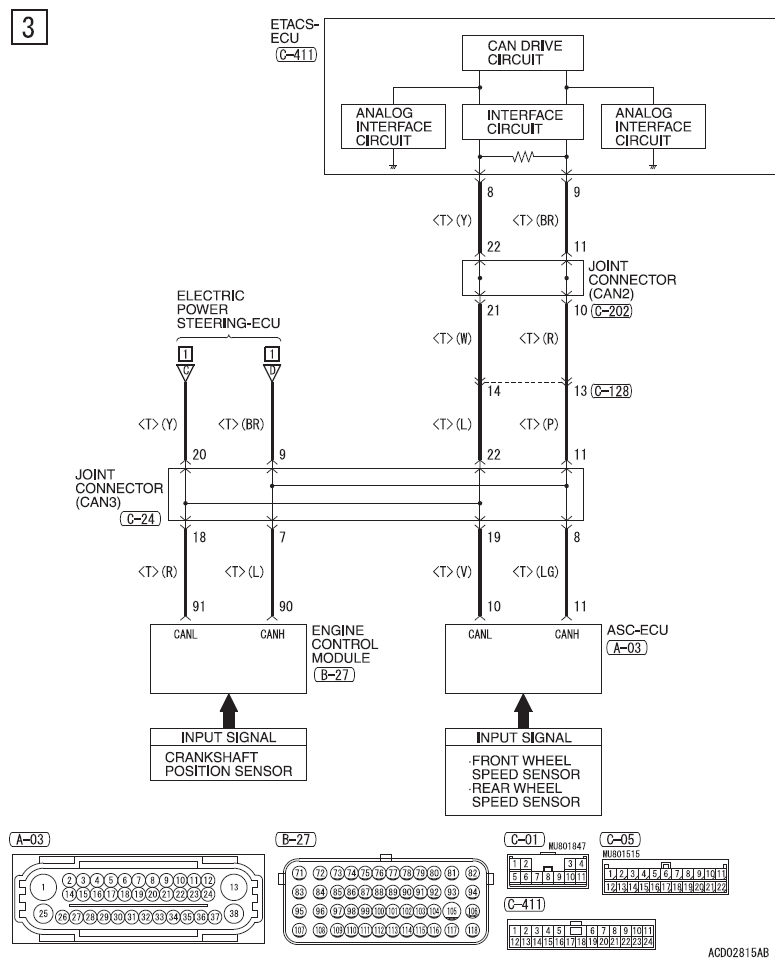

Fig 3: Electric Power Steering System - Circuit Diagram (3 Of 4)
G09622244

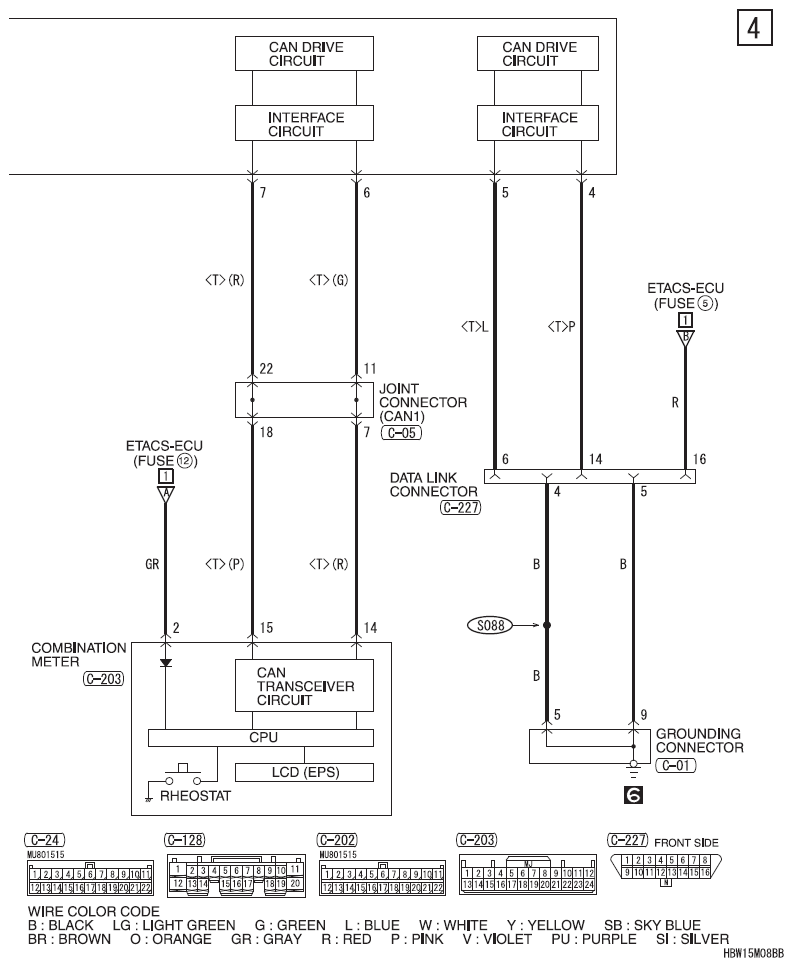

Fig 4: Electric Power Steering System - Circuit Diagram (4 Of 4)
G09622245
