Cruise Control System

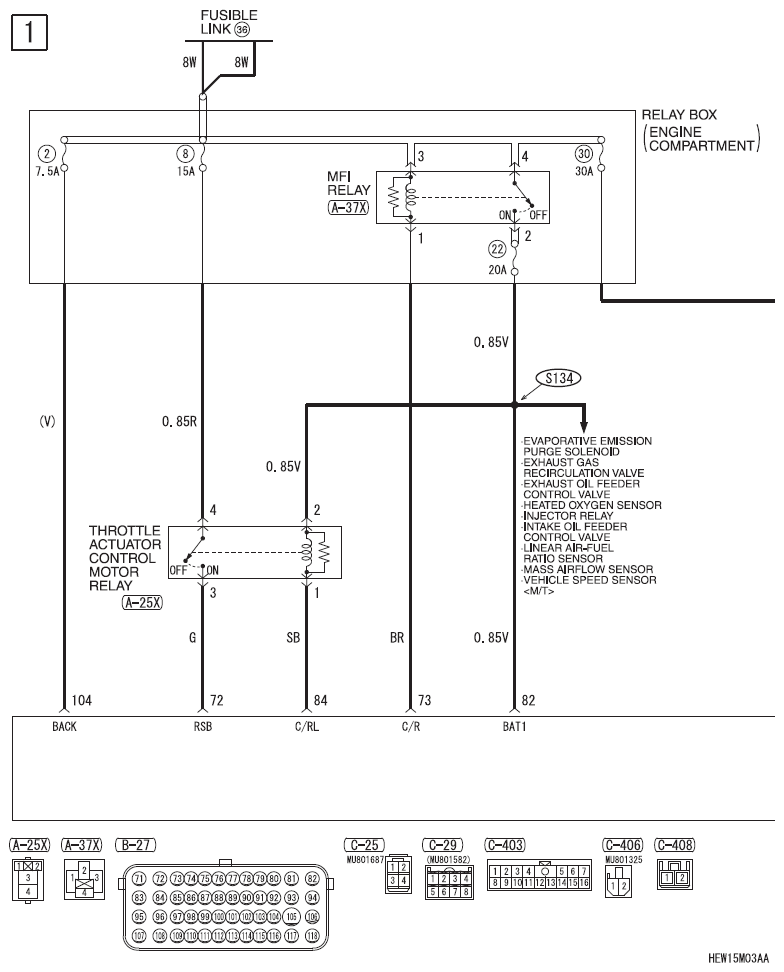

Fig 1: Cruise Control System - Circuit Diagram (1 Of 7)
G09622208

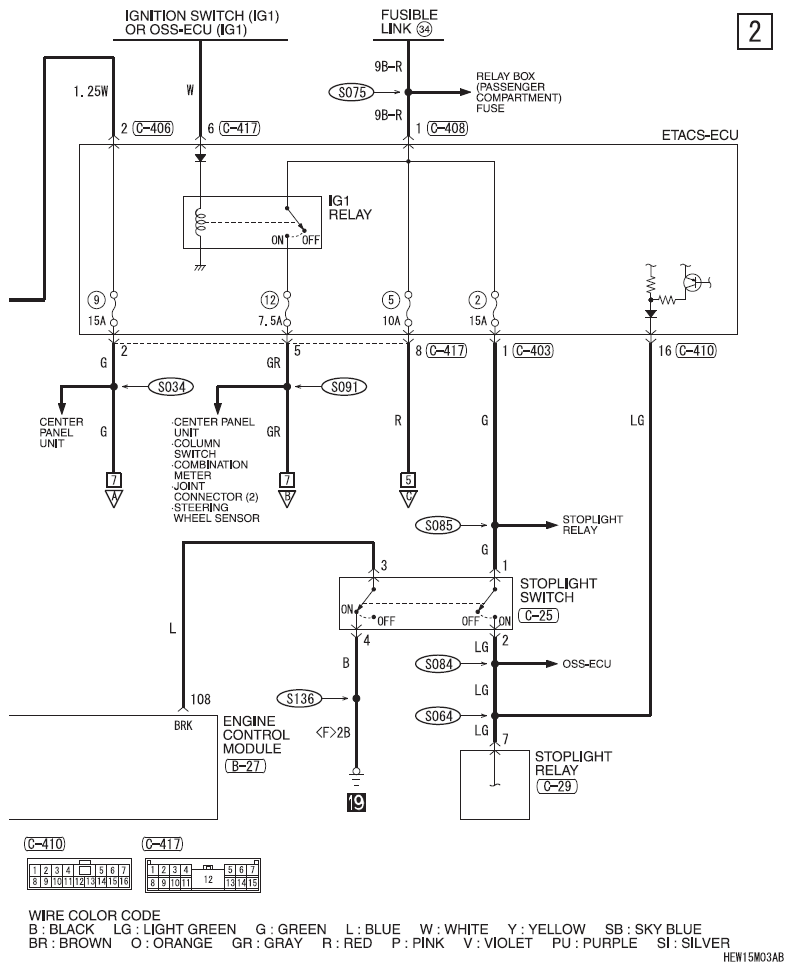

Fig 2: Cruise Control System - Circuit Diagram (2 Of 7)
G09622209

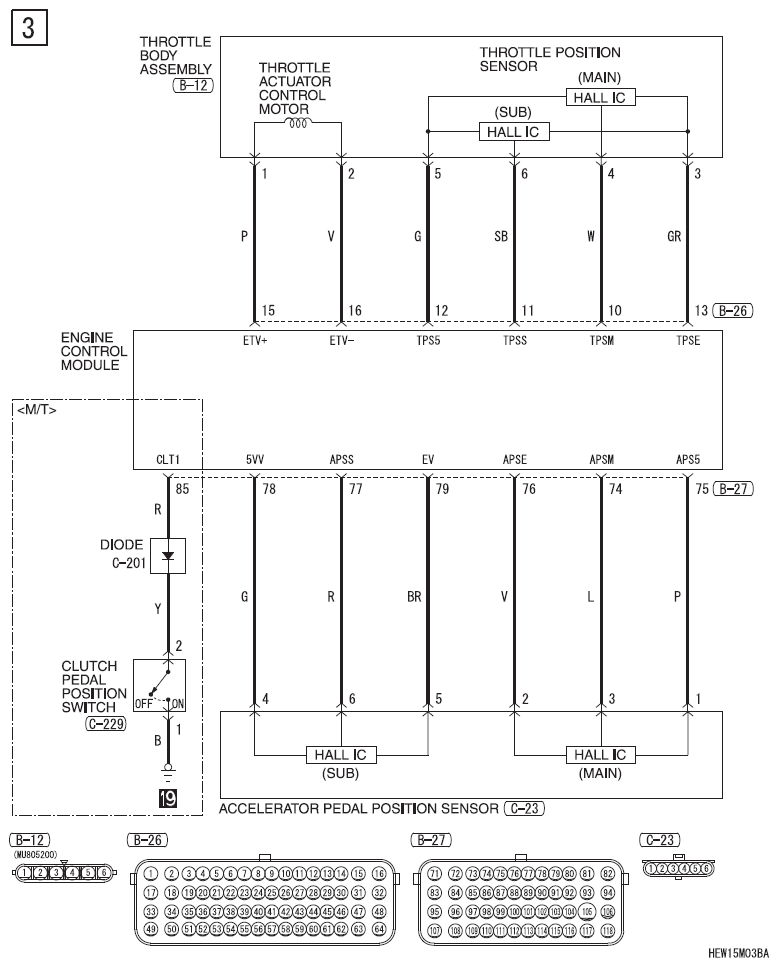

Fig 3: Cruise Control System - Circuit Diagram (3 Of 7)
G09622210

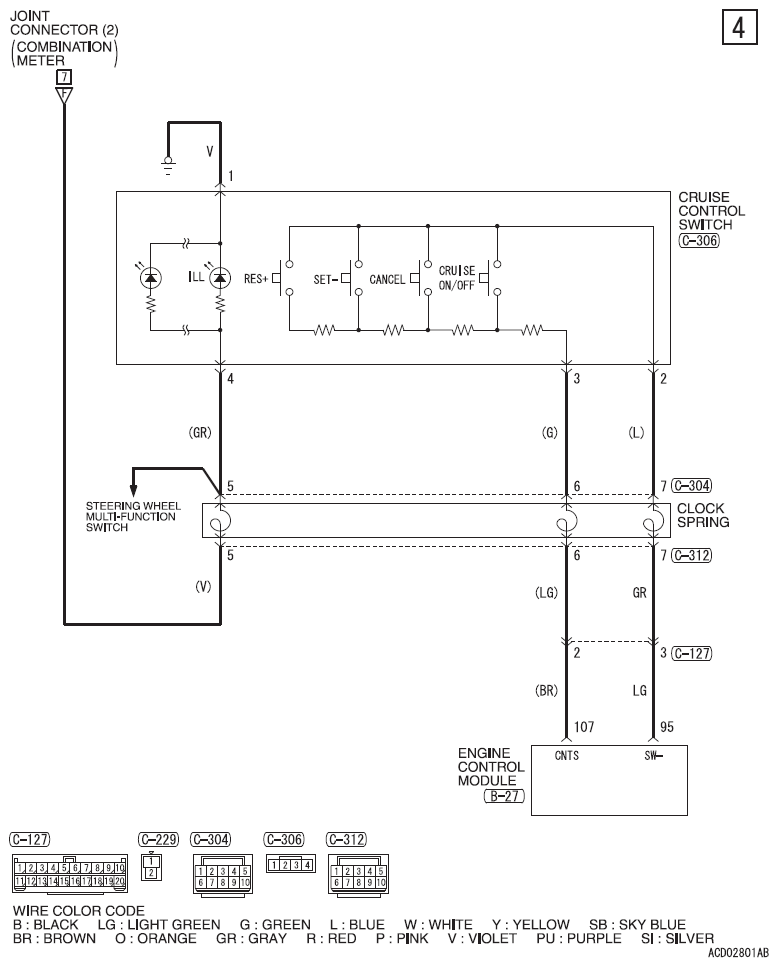

Fig 4: Cruise Control System - Circuit Diagram (4 Of 7)
G09622211

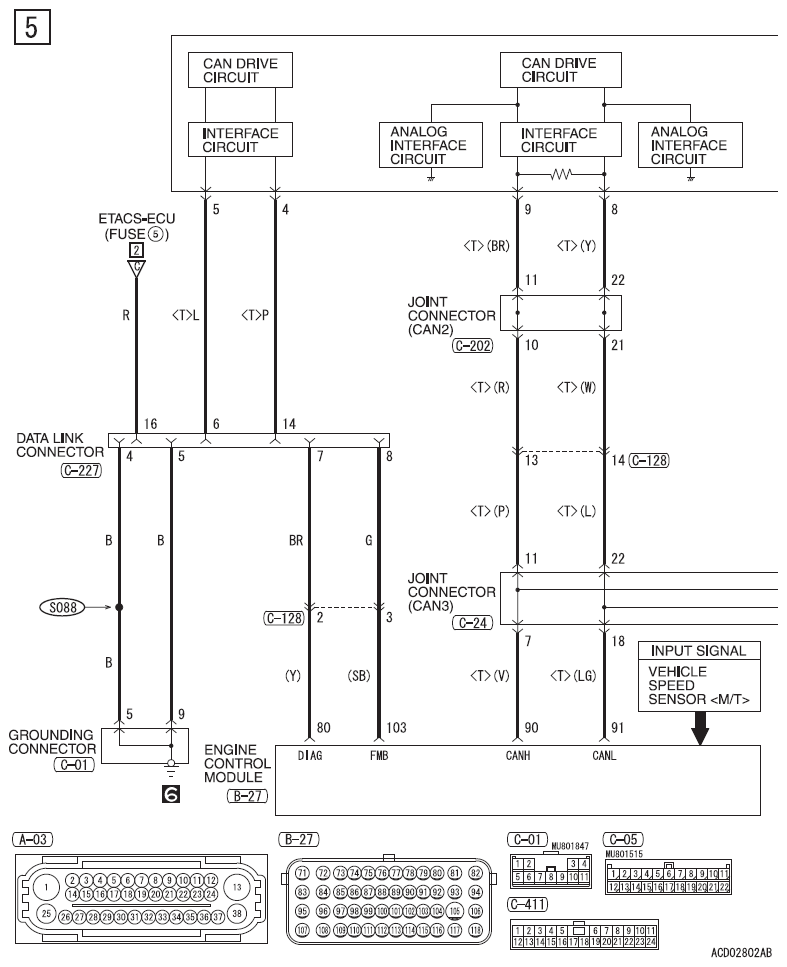

Fig 5: Cruise Control System - Circuit Diagram (5 Of 7)
G09622212

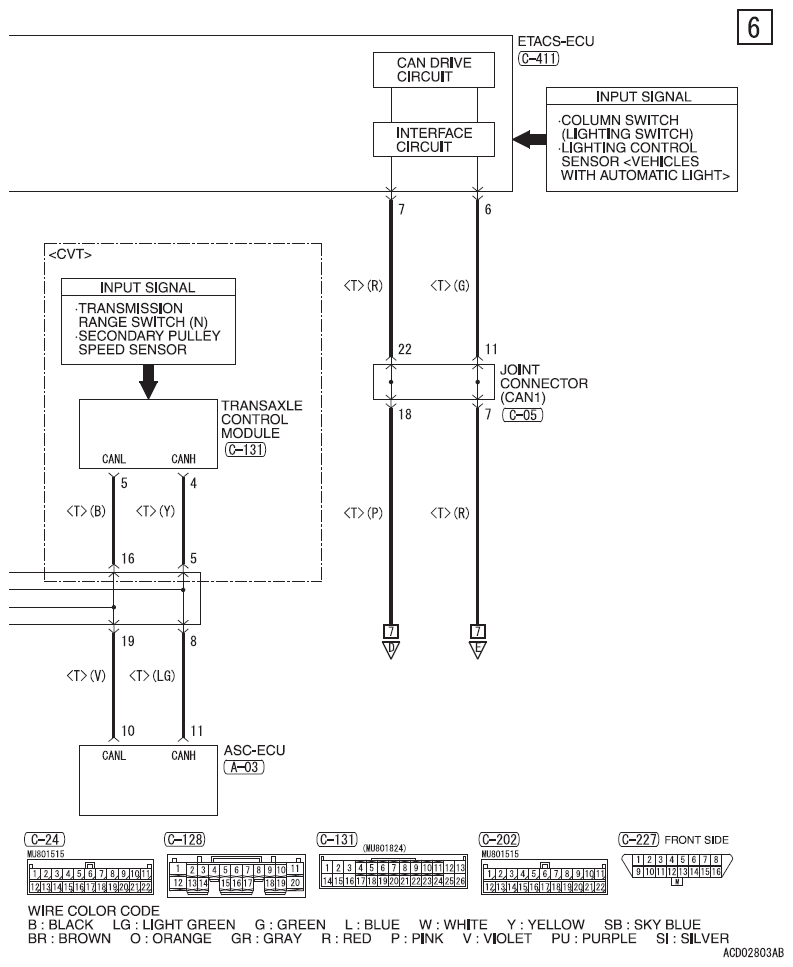

Fig 6: Cruise Control System - Circuit Diagram (6 Of 7)
G09622213

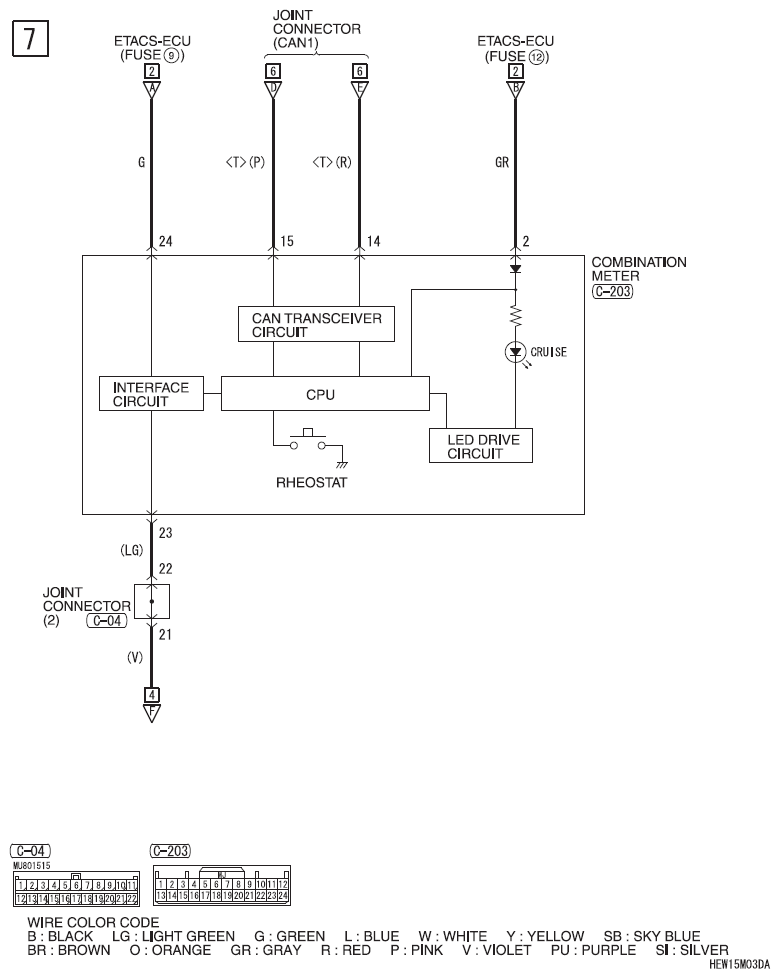

Fig 7: Cruise Control System - Circuit Diagram (7 Of 7)
G09622214
