Cooling System

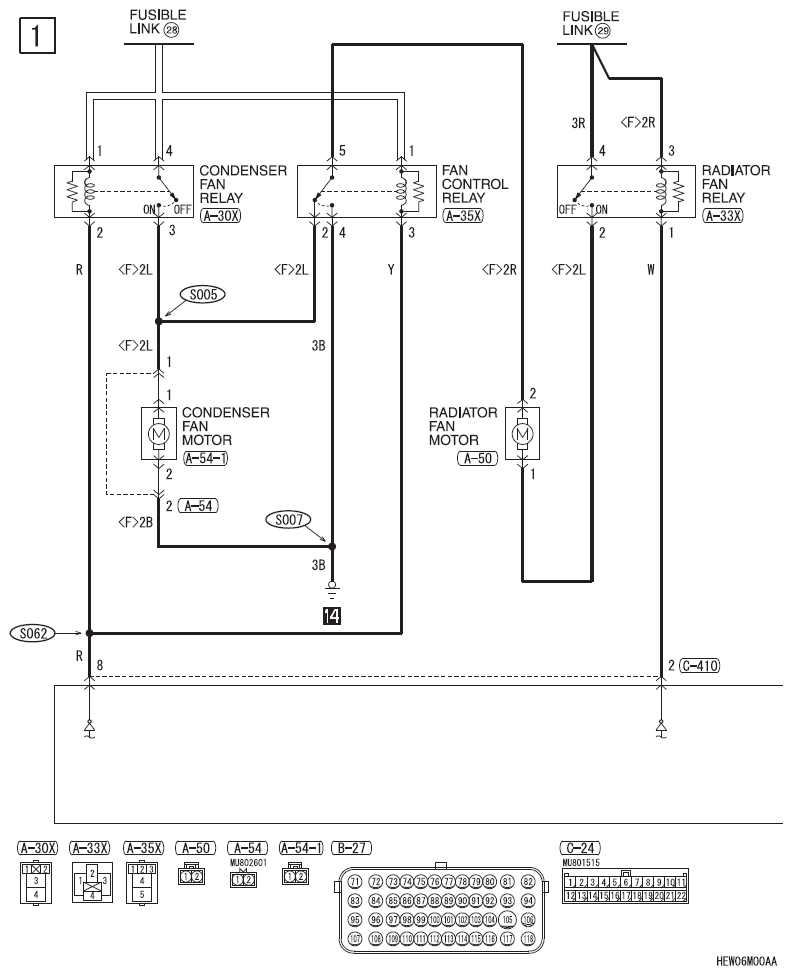

Fig 1: Cooling System - Circuit Diagram (1 Of 4)
G09622009

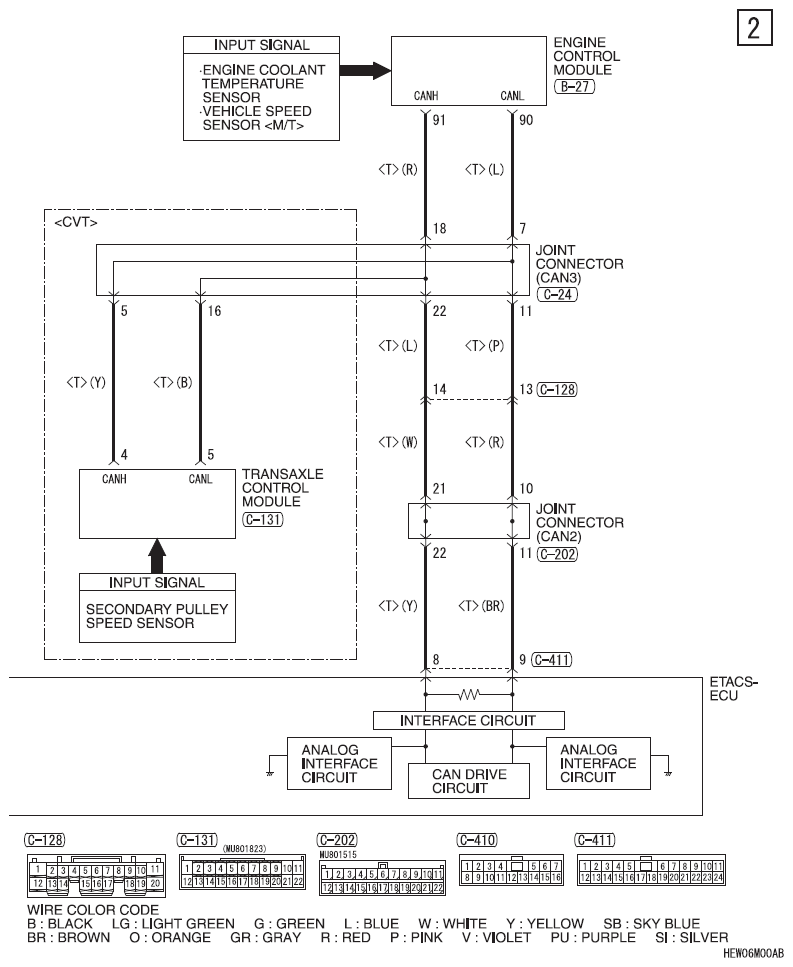

Fig 2: Cooling System - Circuit Diagram (2 Of 4)
G09622010

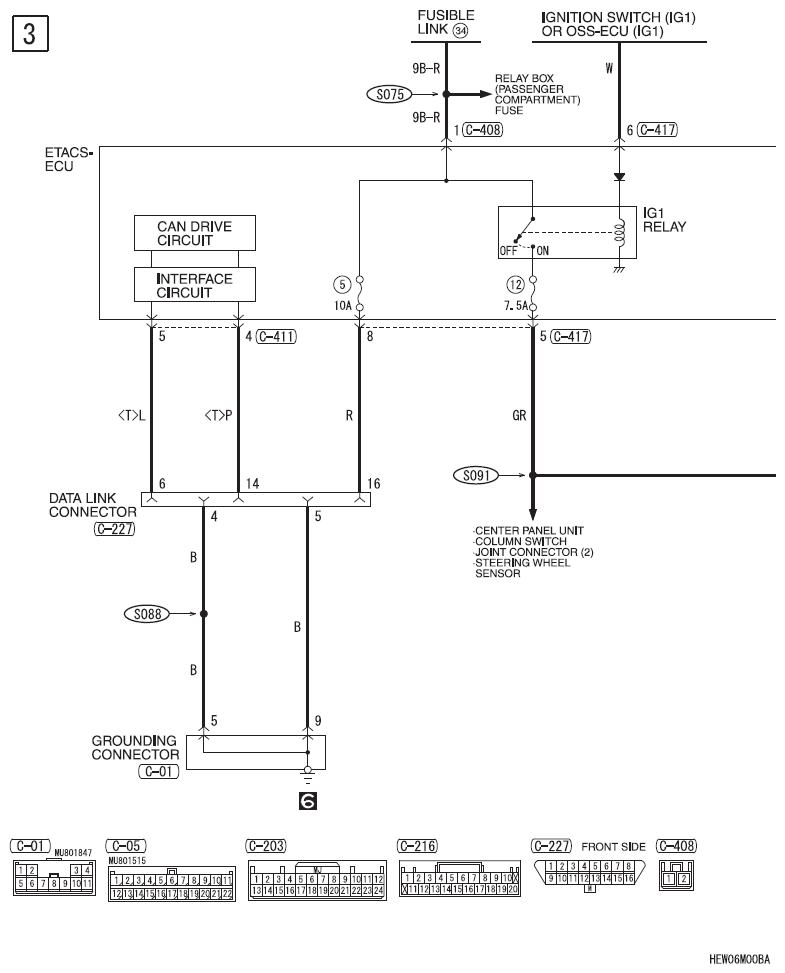

Fig 3: Cooling System - Circuit Diagram (3 Of 4)
G09622011

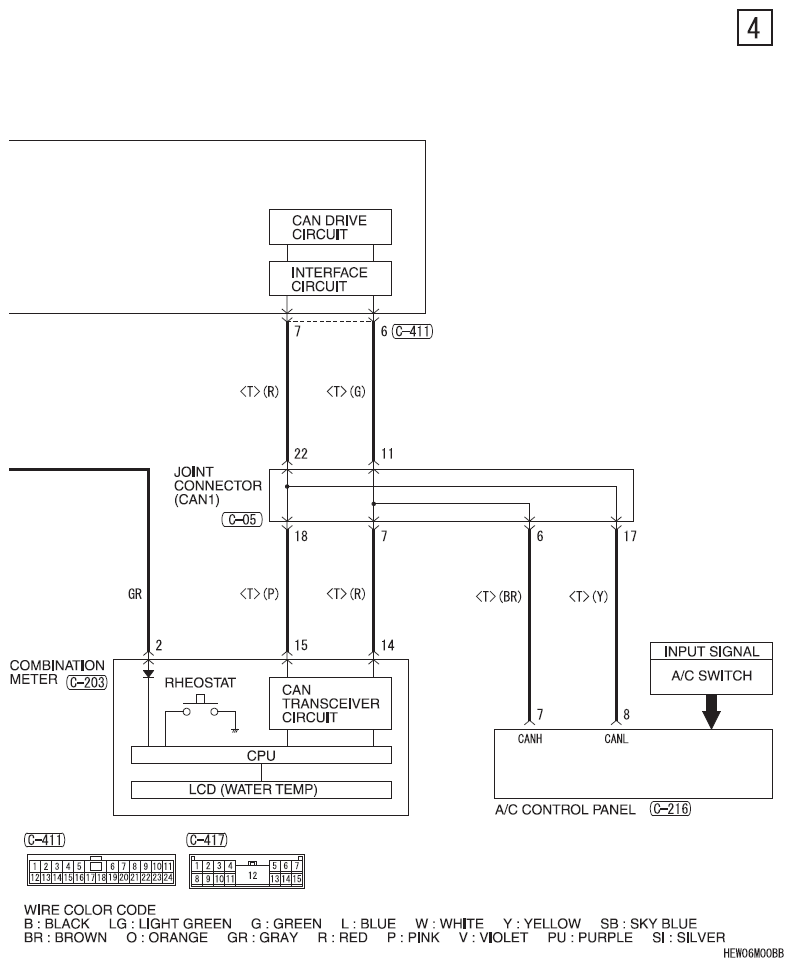

Fig 4: Cooling System - Circuit Diagram (4 Of 4)
G09622012
