Controller Area Network (Can)

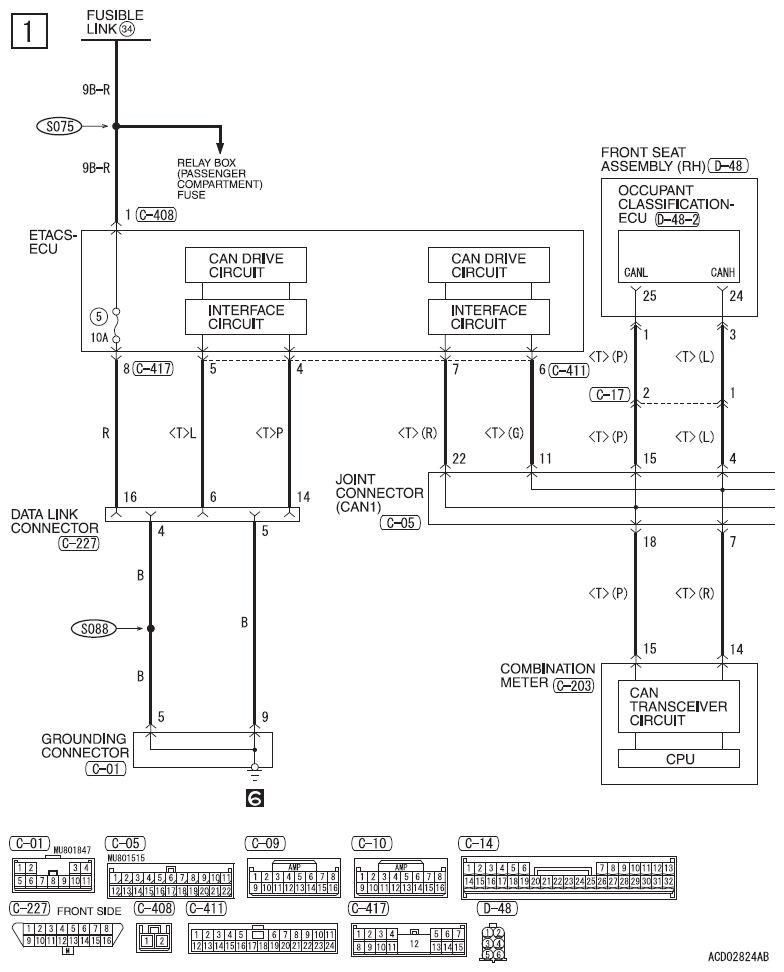

Fig 1: Controller Area Network (CAN) - Circuit Diagram (1 Of 4)
G09622276

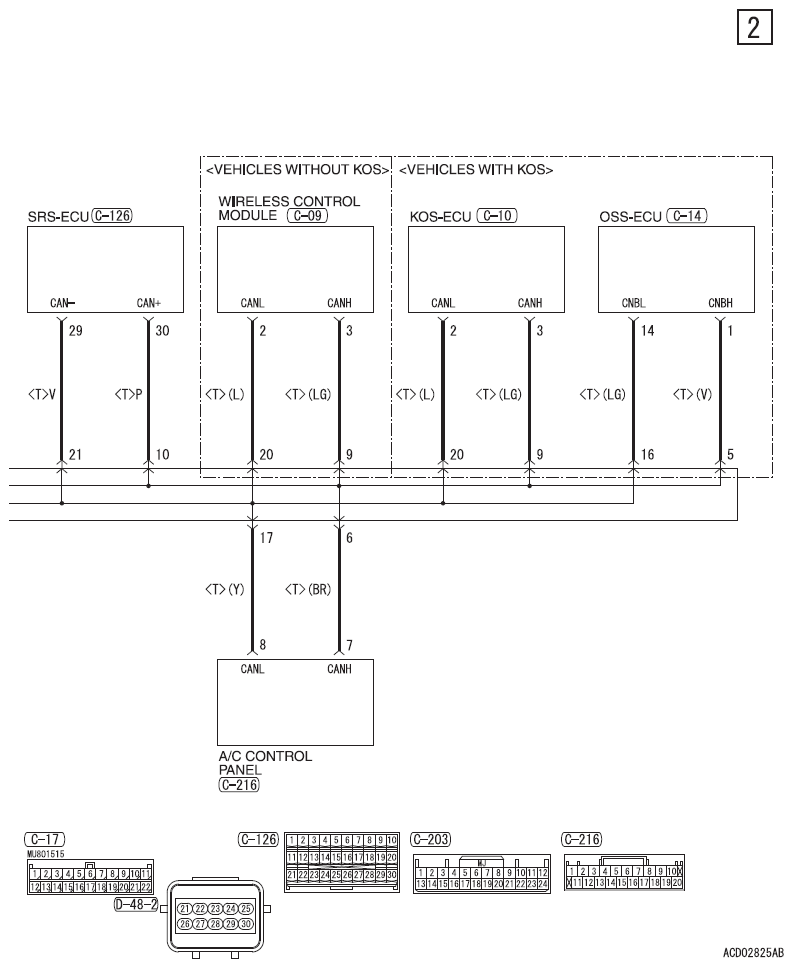

Fig 2: Controller Area Network (CAN) - Circuit Diagram (2 Of 4)
G09622277

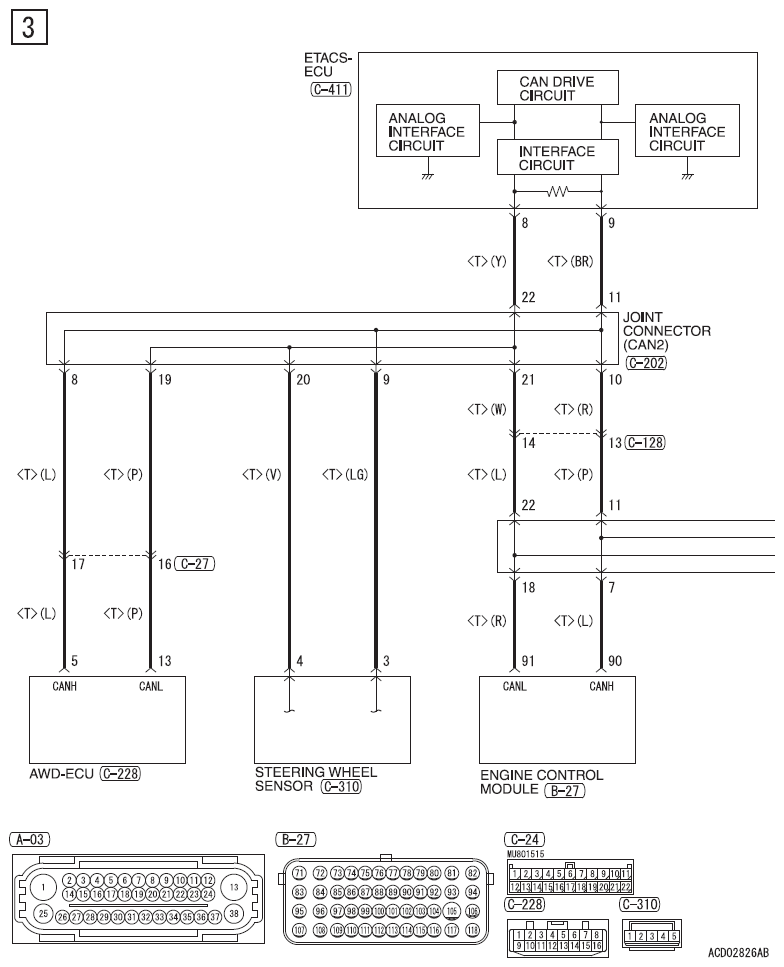

Fig 3: Controller Area Network (CAN) - Circuit Diagram (3 Of 4)
G09622278

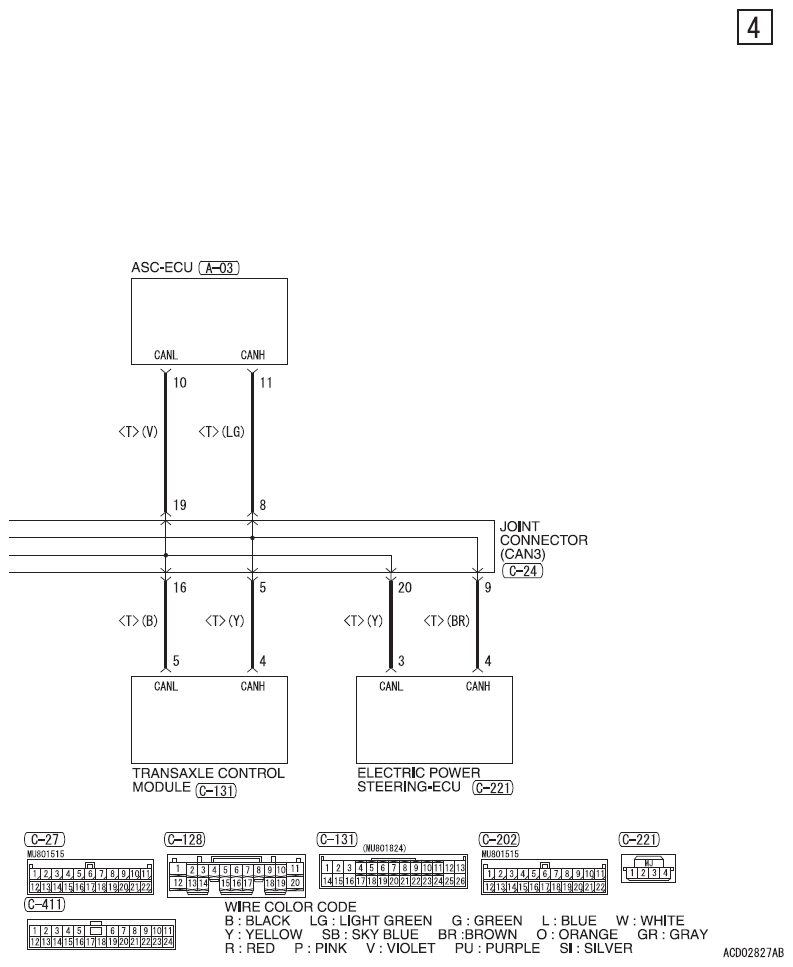

Fig 4: Controller Area Network (CAN) - Circuit Diagram (4 Of 4)
G09622279
