Charging System

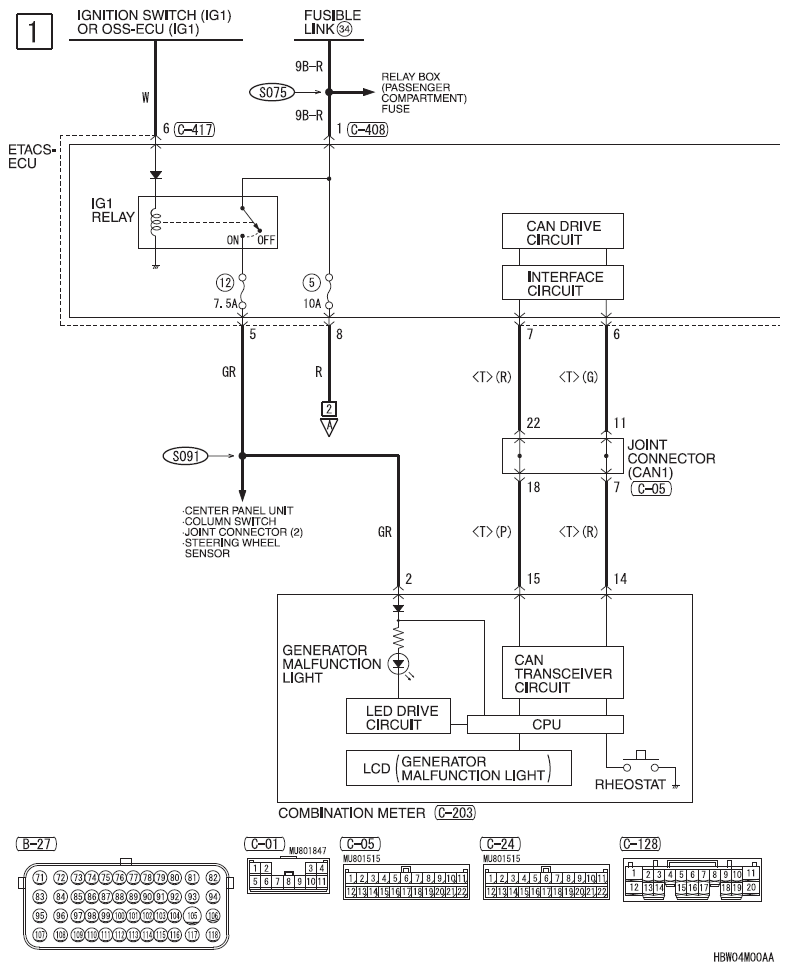

Fig 1: Charging System - Circuit Diagram (1 Of 4)
G09621994

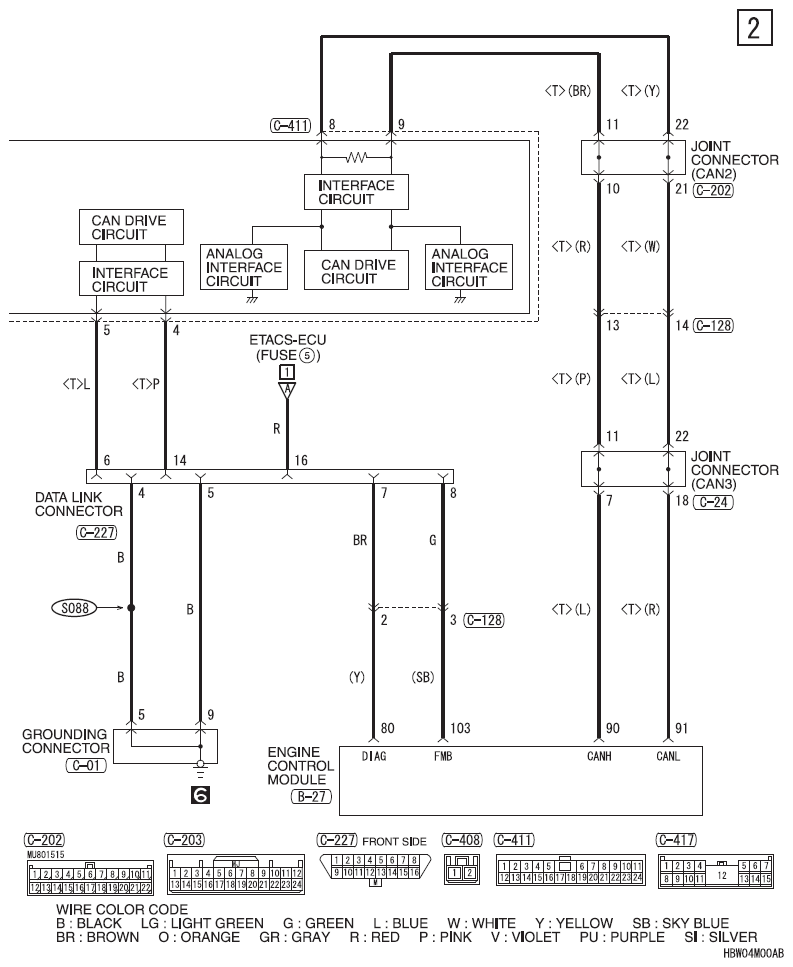

Fig 2: Charging System - Circuit Diagram (2 Of 4)
G09621995

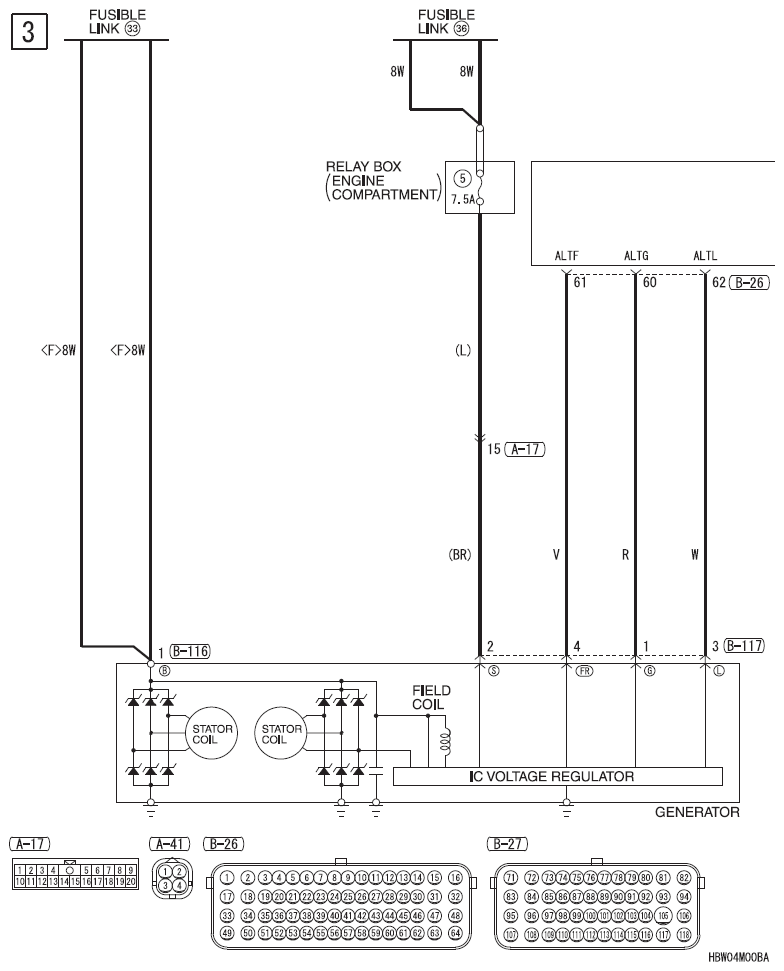

Fig 3: Charging System - Circuit Diagram (3 Of 4)
G09621996

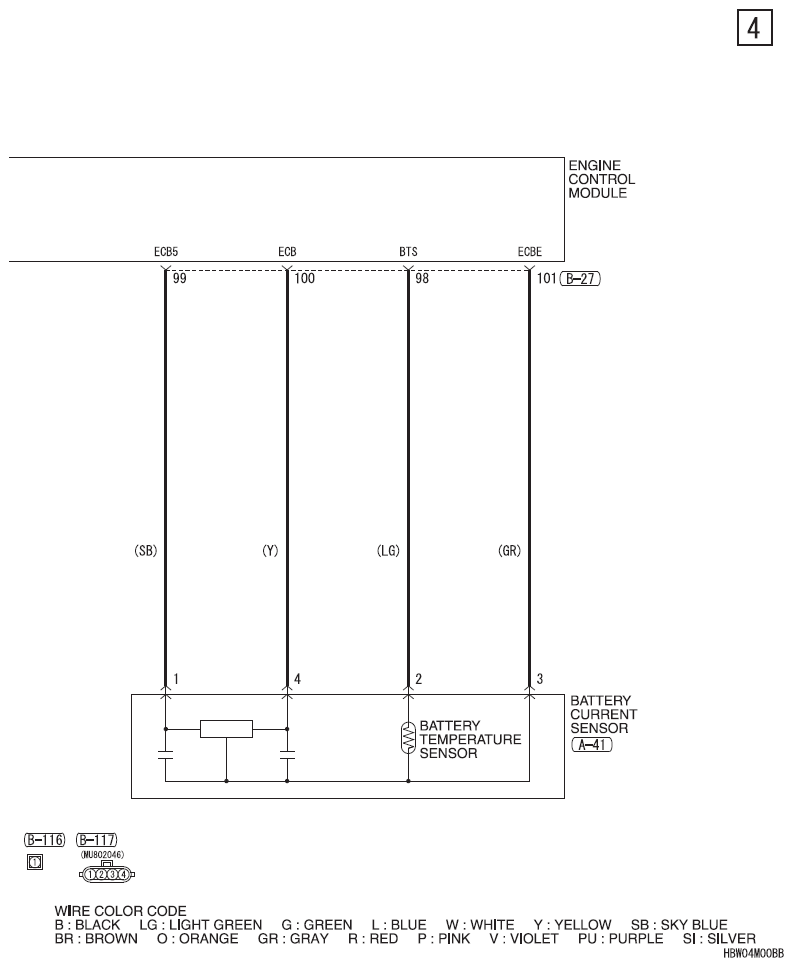

Fig 4: Charging System - Circuit Diagram (4 Of 4)
G09621997
