Backup Light

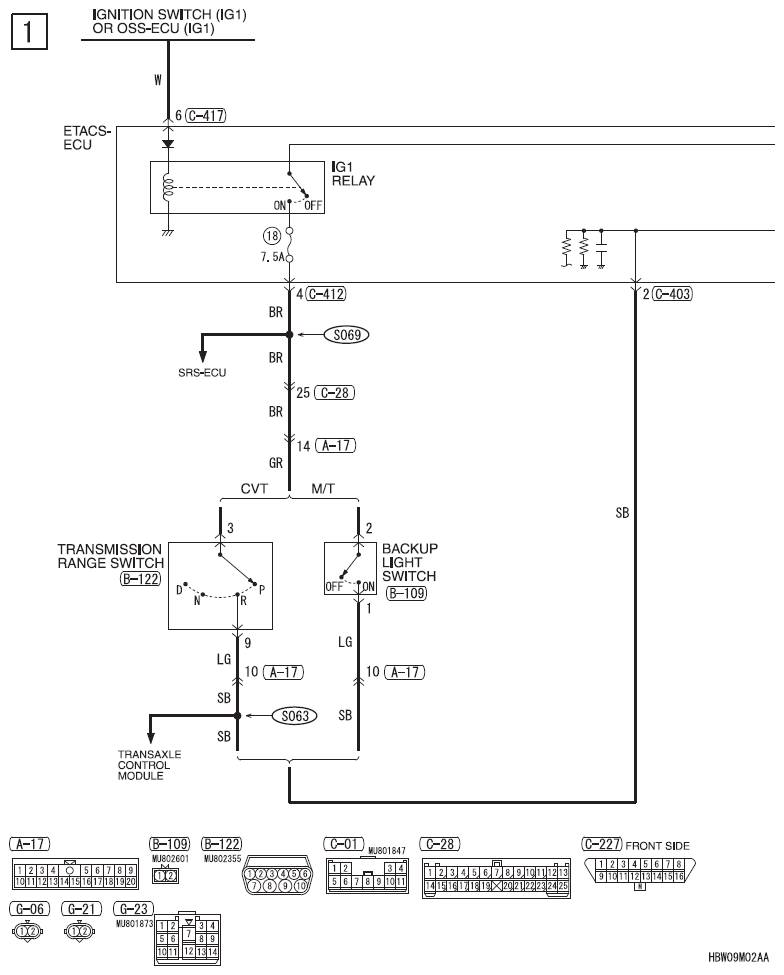

Fig 1: Backup Light - Circuit Diagram (1 Of 2)

G09622075

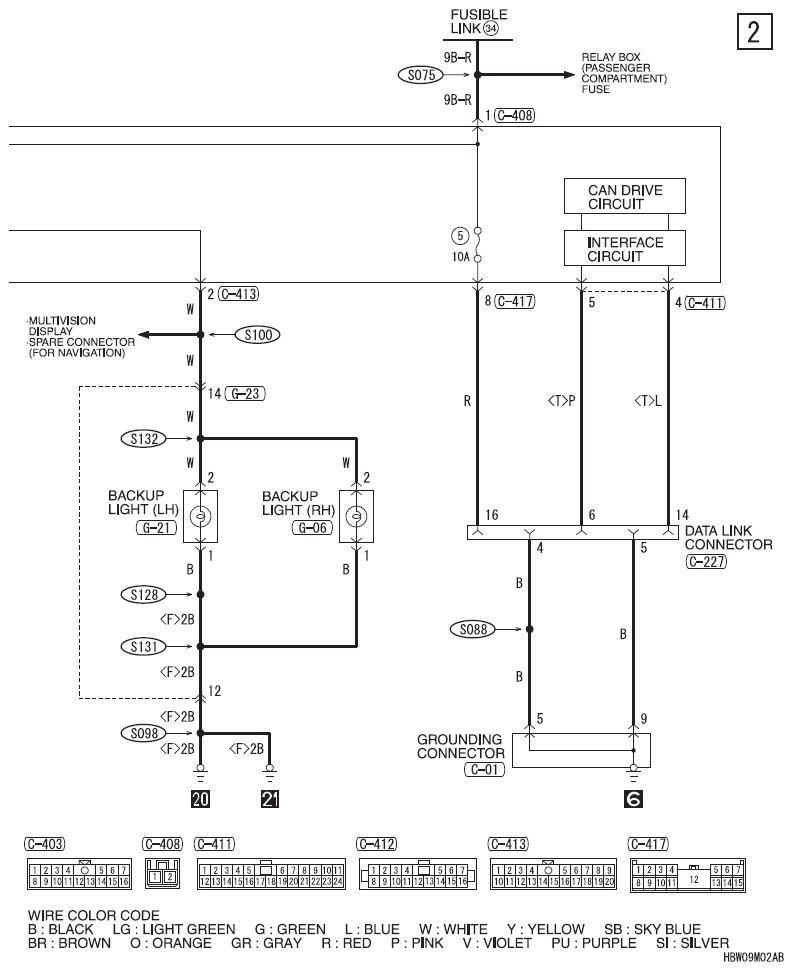

Fig 2: Backup Light - Circuit Diagram (2 Of 2)

G09622076
