Air Conditioning System

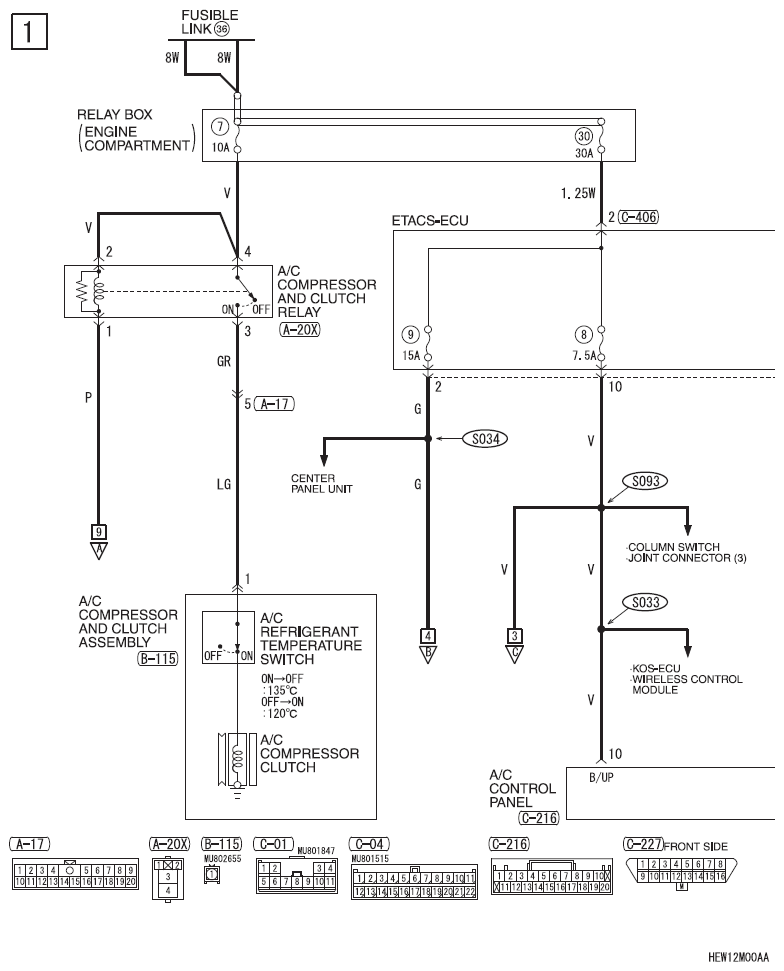

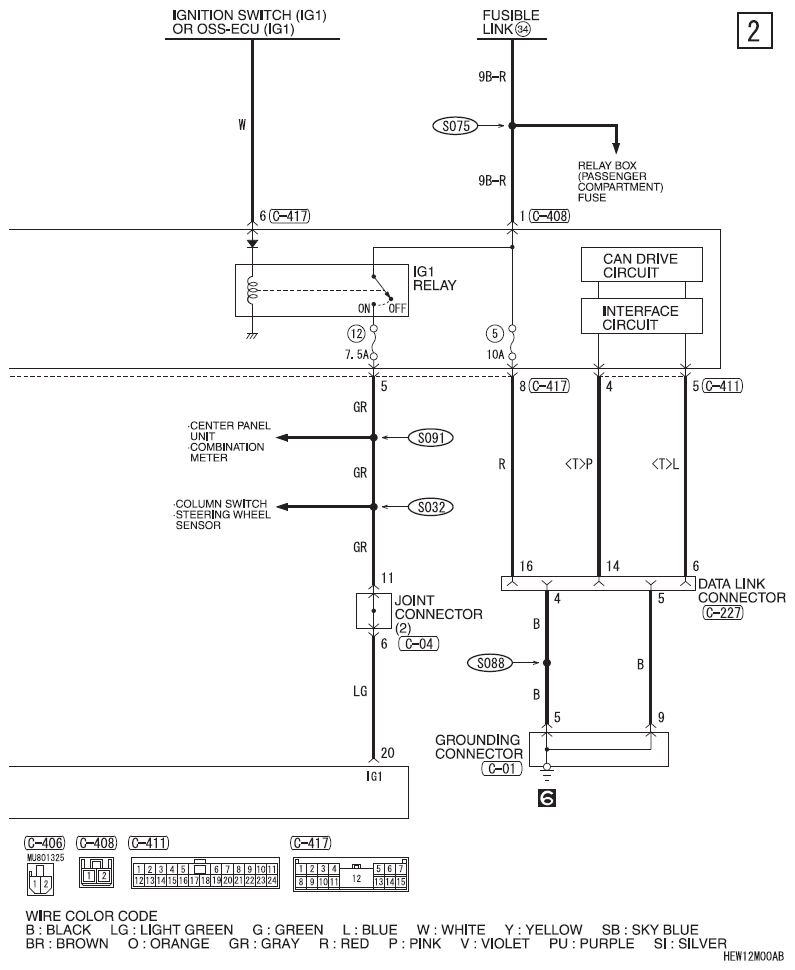

Fig 1: Air Conditioning System - Circuit Diagram (1 Of 11)

Fig 2: Air Conditioning System - Circuit Diagram (2 Of 11)

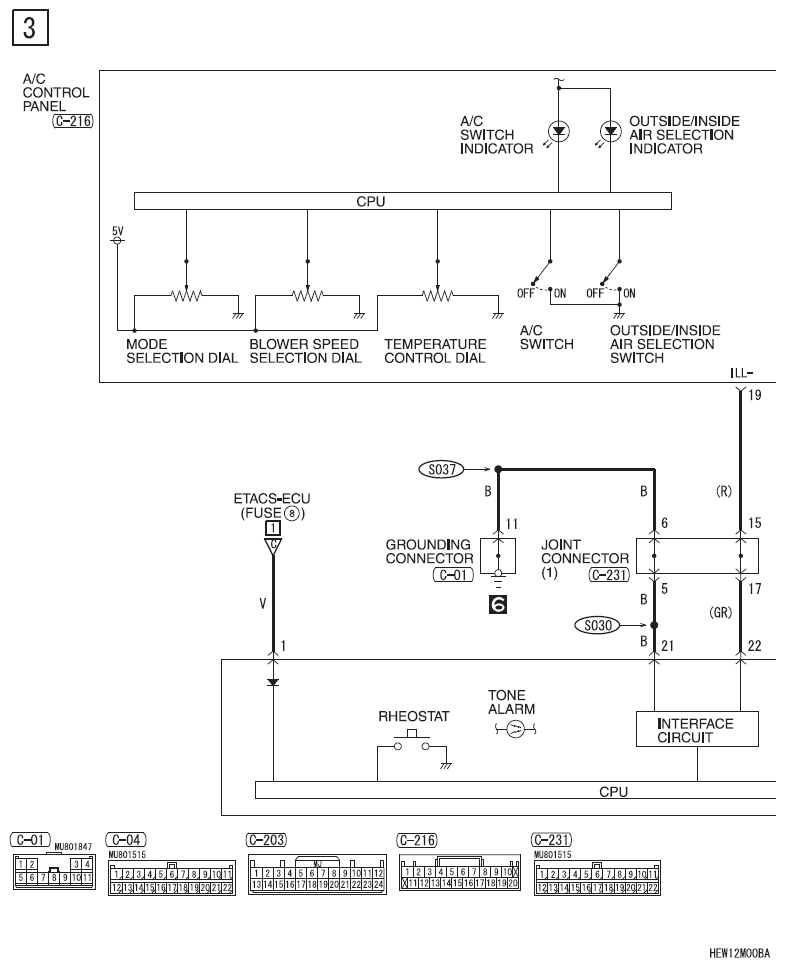

Fig 3: Air Conditioning System - Circuit Diagram (3 Of 11)

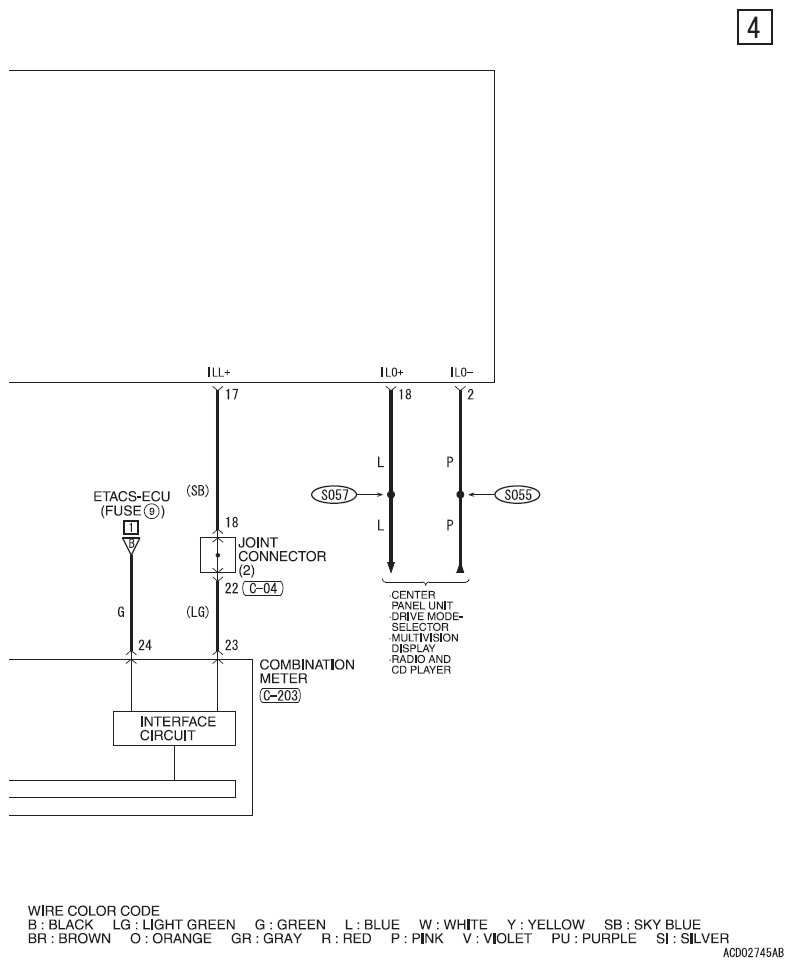

Fig 4: Air Conditioning System - Circuit Diagram (4 Of 11)

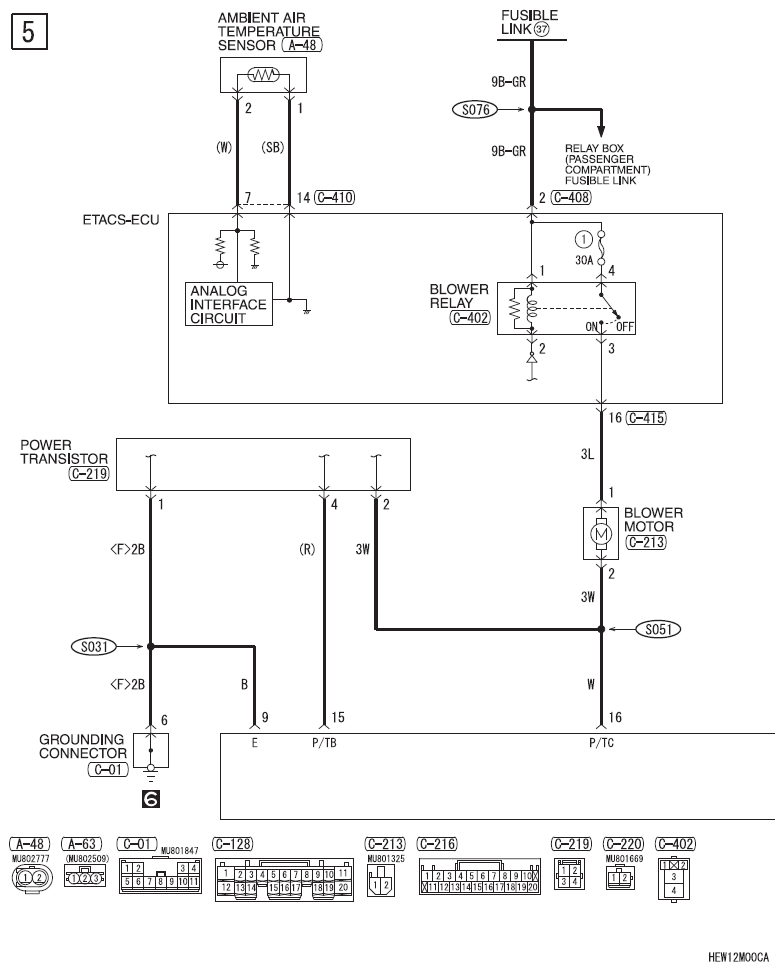

Fig 5: Air Conditioning System - Circuit Diagram (5 Of 11)

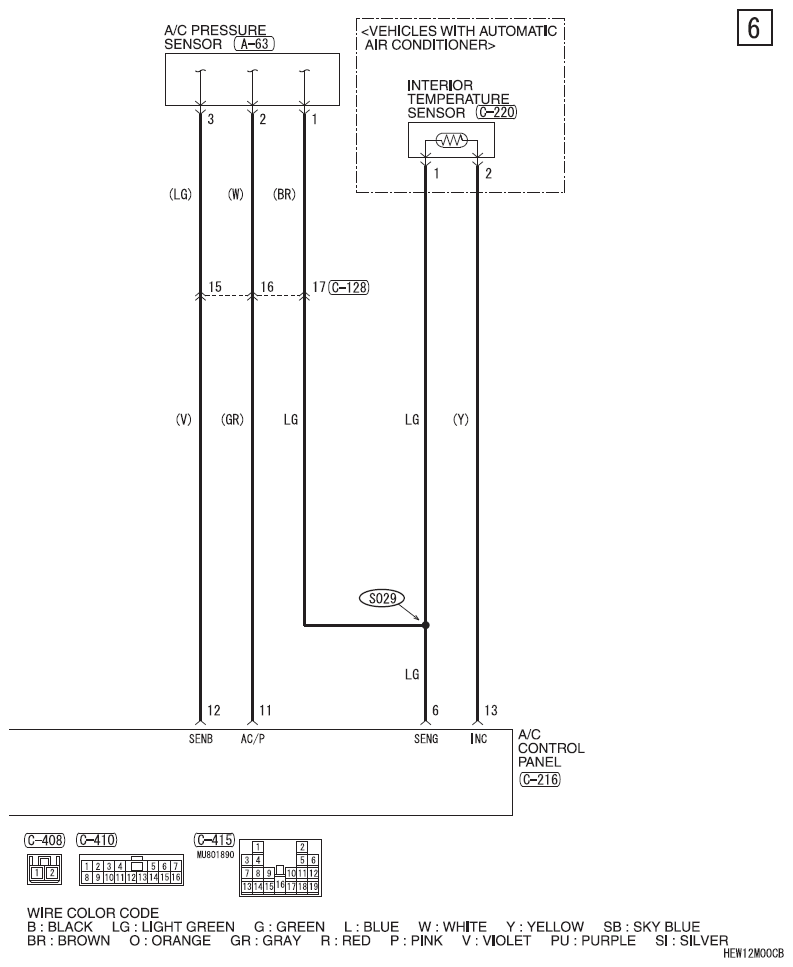

Fig 6: Air Conditioning System - Circuit Diagram (6 Of 11)

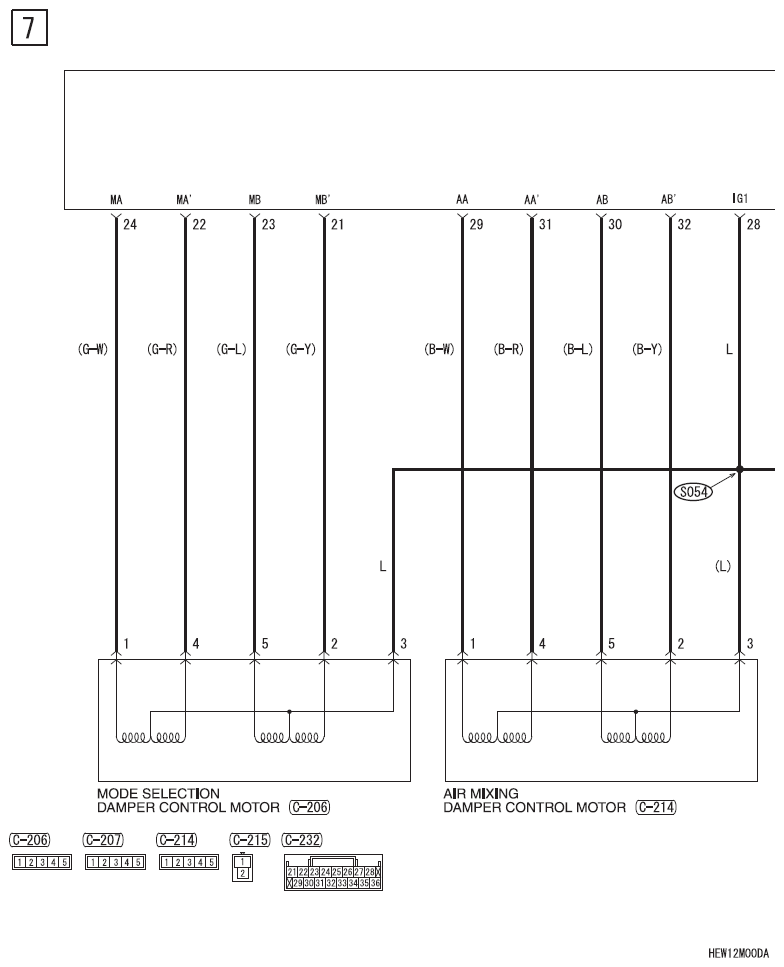

Fig 7: Air Conditioning System - Circuit Diagram (7 Of 11)

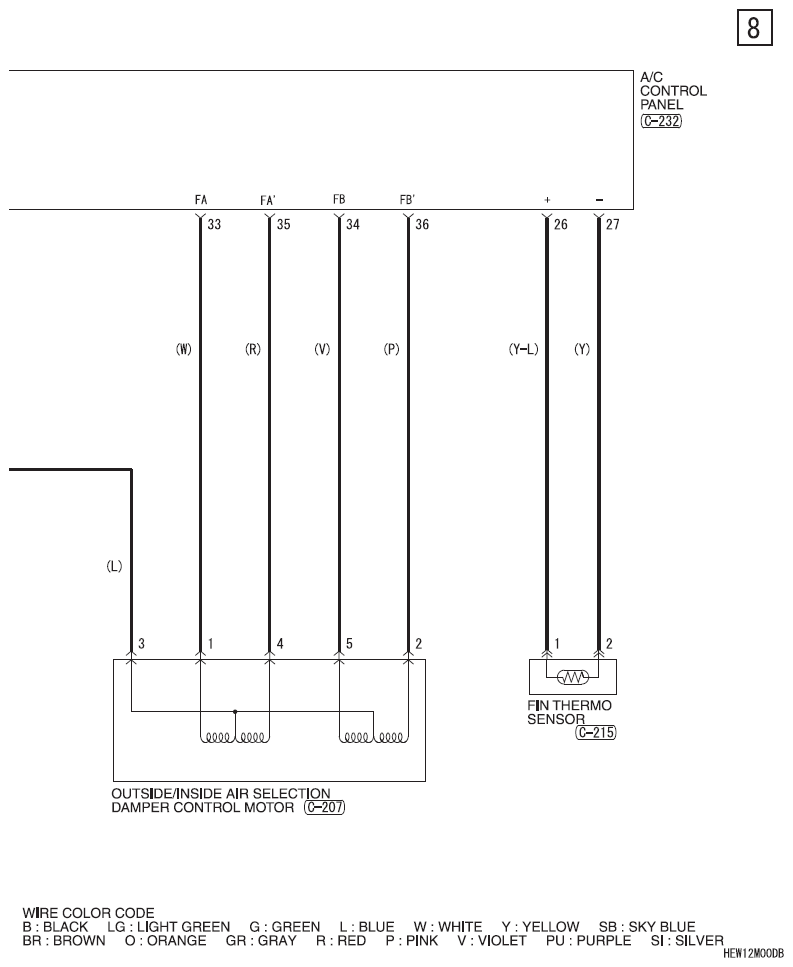

Fig 8: Air Conditioning System - Circuit Diagram (8 Of 11)

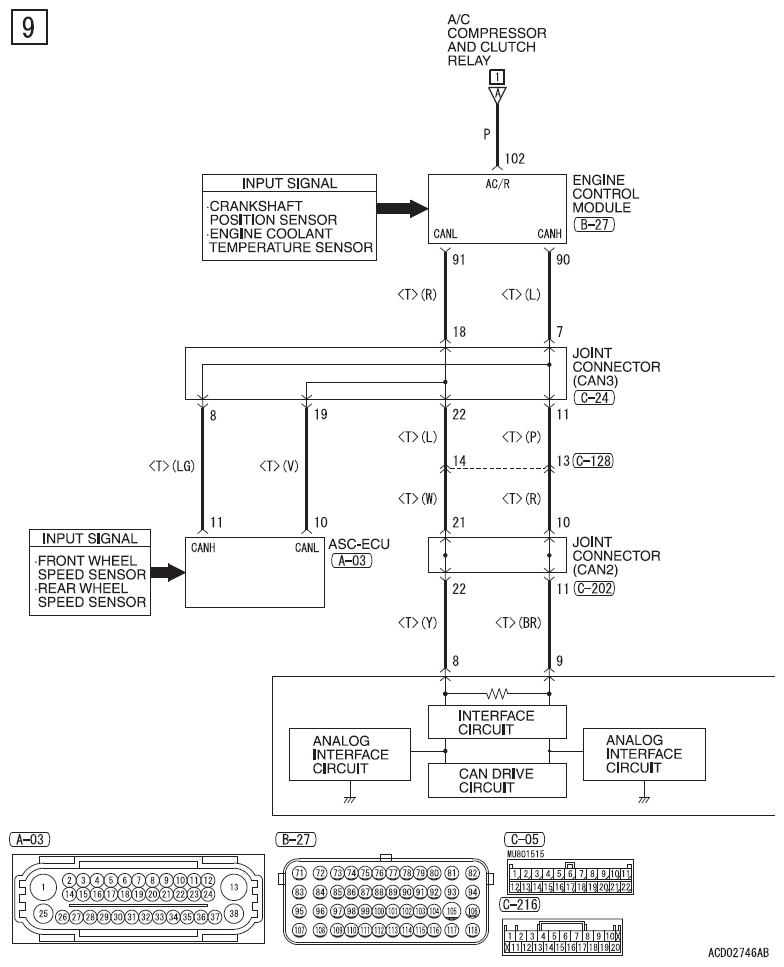

Fig 9: Air Conditioning System - Circuit Diagram (9 Of 11)

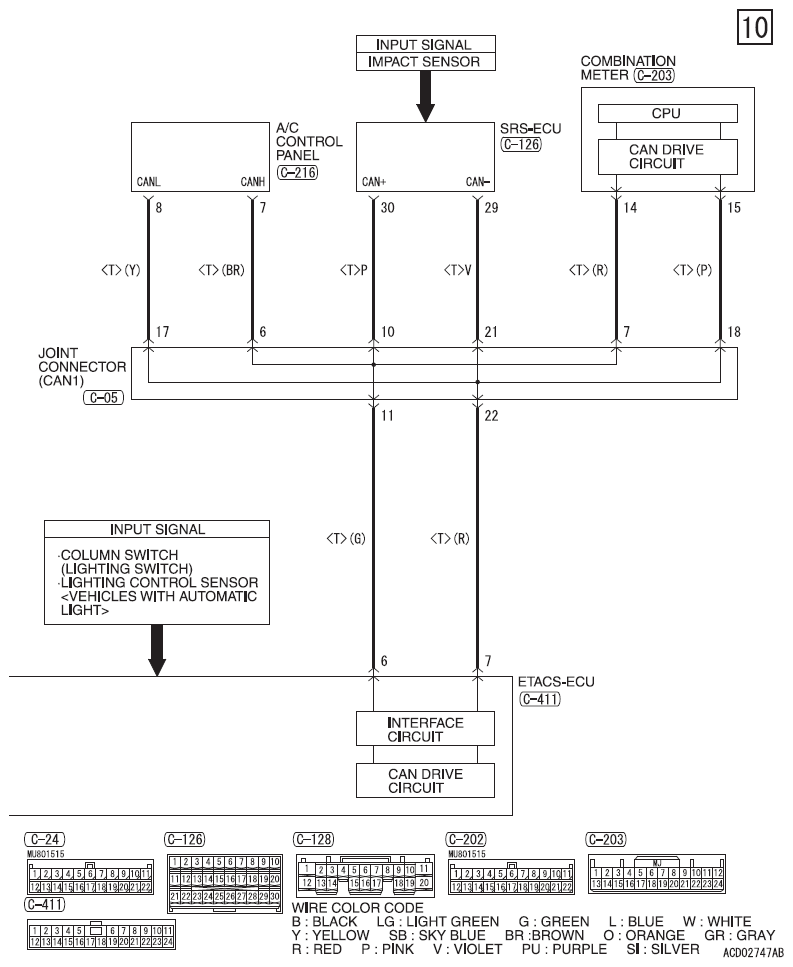

Fig 10: Air Conditioning System - Circuit Diagram (10 Of 11)

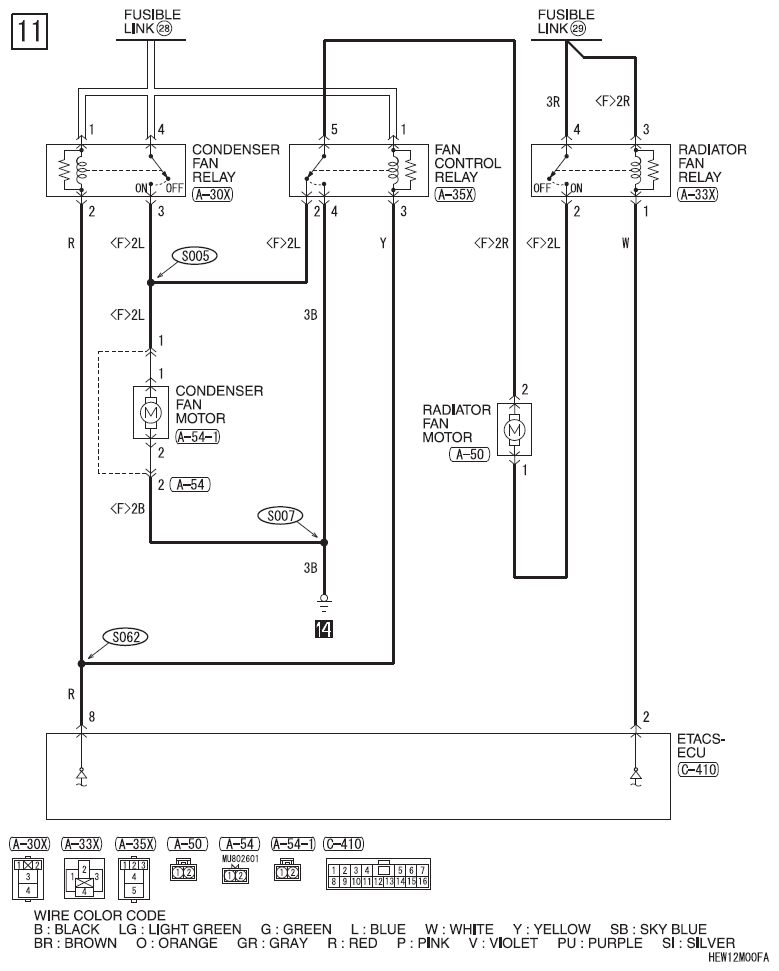

Fig 11: Air Conditioning System - Circuit Diagram (11 Of 11)
