Home
>>
Mitsubishi
>>
2014
>>
Outlander Sport ES, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Crankshaft Position Sensor
>>
Removal And Installation
Removal And Installation

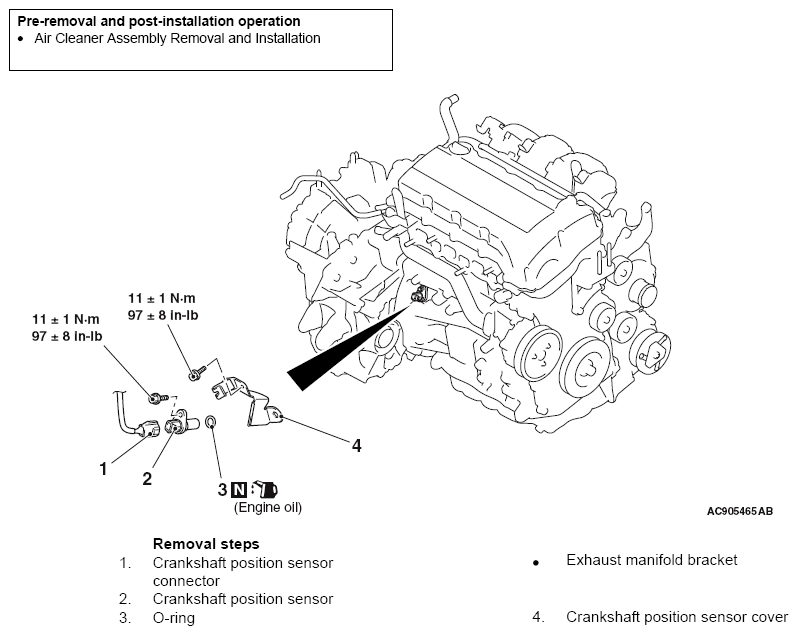

Fig 1: Removing/Installing Crankshaft Position Sensor Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
