Notes
Removal And Installation: Notes

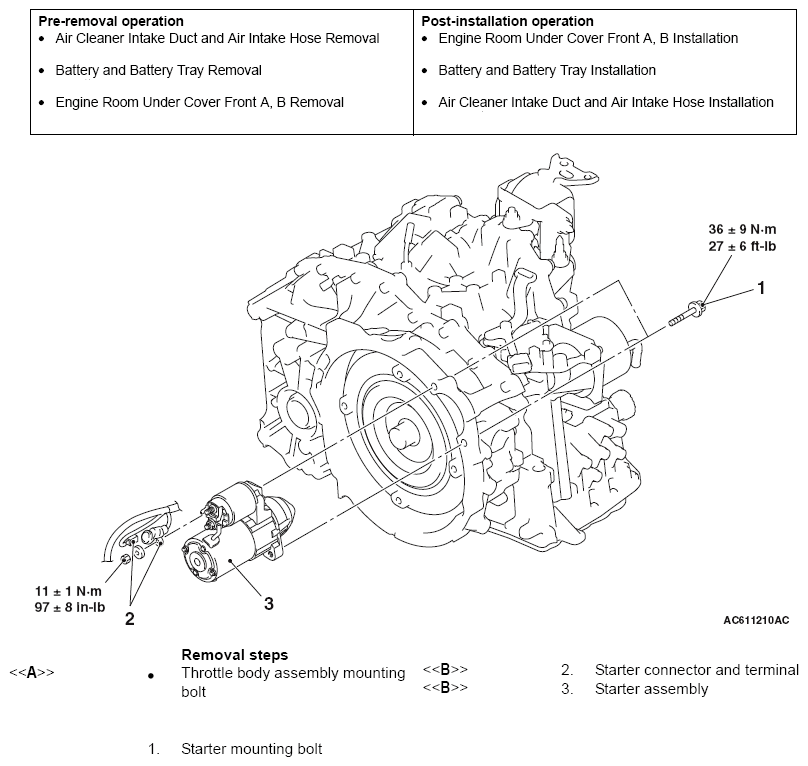

Fig 1: Removing/Installing Starter Motor Assembly With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
