Mitsubishi
>>
2014
>>
Outlander Sport ES, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Generator Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

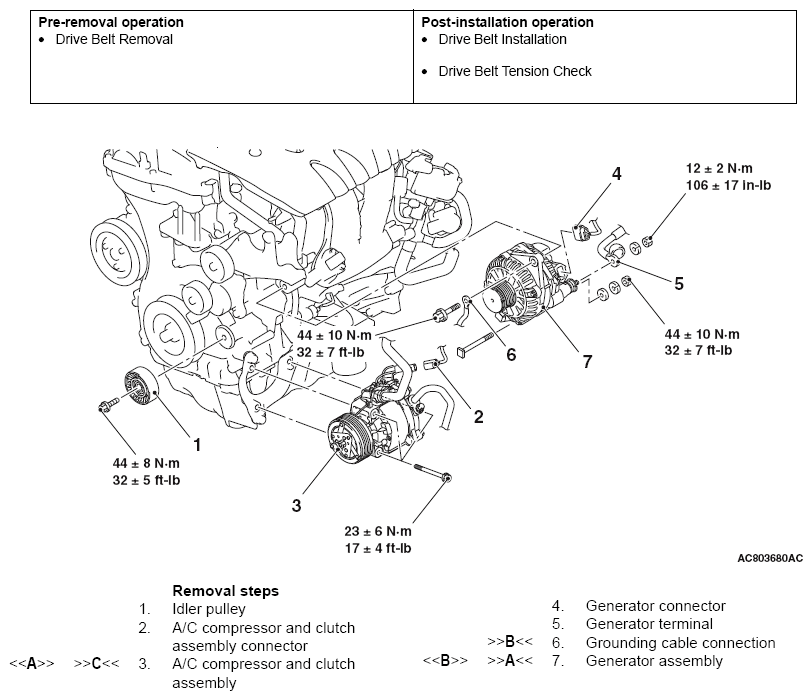

Fig 1: Removing/Installing Generator Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
