REMOVAL AND INSTALLATION - 2.4L Engine

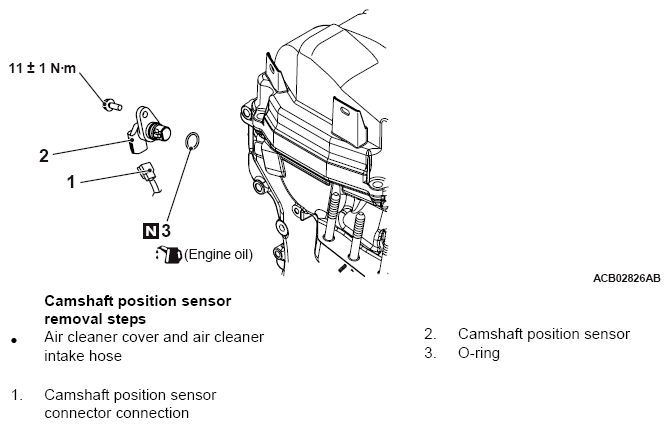

Fig 1: Removing/Installing Camshaft Position Sensor With Torque Specifications (2.4L Engine)

G09664790

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
