Garage Jack

CAUTION: Be sure to support the specified locations only. Otherwise, deformation of vehicle may occur.

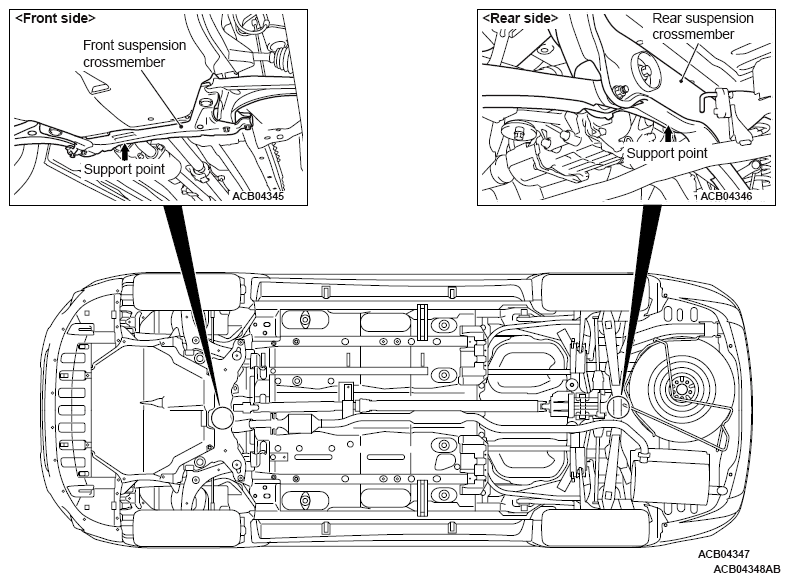

Fig 1: Locating Floor Jack Support Positions
G09663193Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
