INSPECTION - 2.4L Engine: Brush

Measure the length of the protrusion of the brush. Replace the brush if the protrusion length is shorter than the limit.
Limit: min. 2 mm
Unsolder the lead of the brush. The brush will come out, becoming ready for removal.

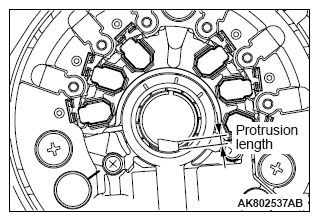

Fig 1: Identifying Brush Protrusion Length
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install a new brush by pushing it into the holder as shown in the illustration and soldering the lead.

Fig 2: Identifying Charging System Brush Soldering Area
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
