DISASSEMBLY AND REASSEMBLY - 3.0L Engine: Notes

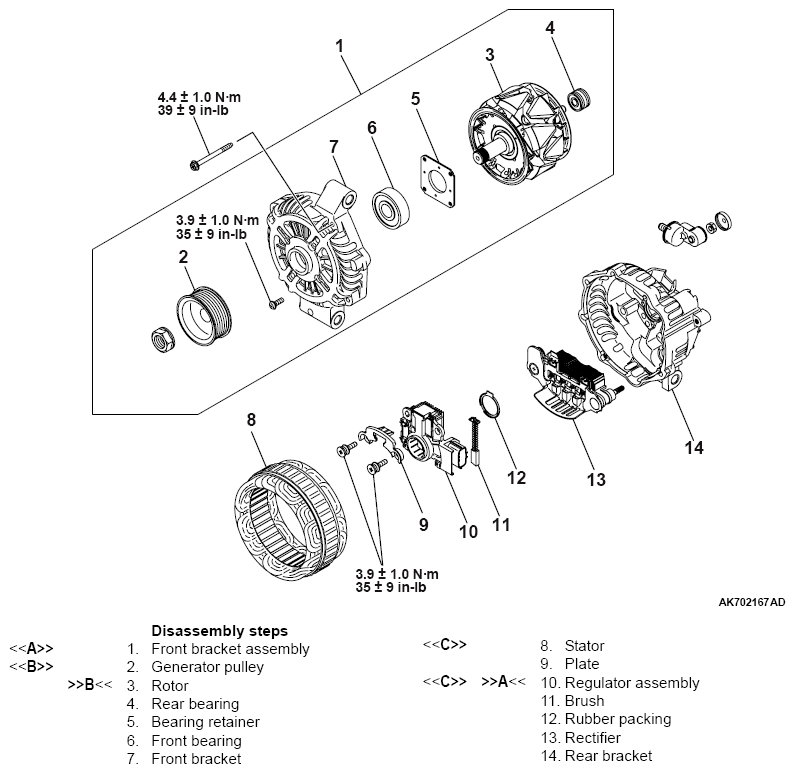

Fig 1: Disassembling/Reassembling Generator Assembly With Torque Specification - 3.0L Engine

G09664731

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
