Removal And Installation: Notes

NOTE: For additional service information, refer to TSB FRONT SUSPENSION STRUT STIFFENER ADDED - SERVICE MANUAL REVISION .
CAUTION:
  • The parts indicated by *1 indicates parts which should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
  • The parts indicated by *2 is the nuts with friction coefficient stabilizer. During removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.

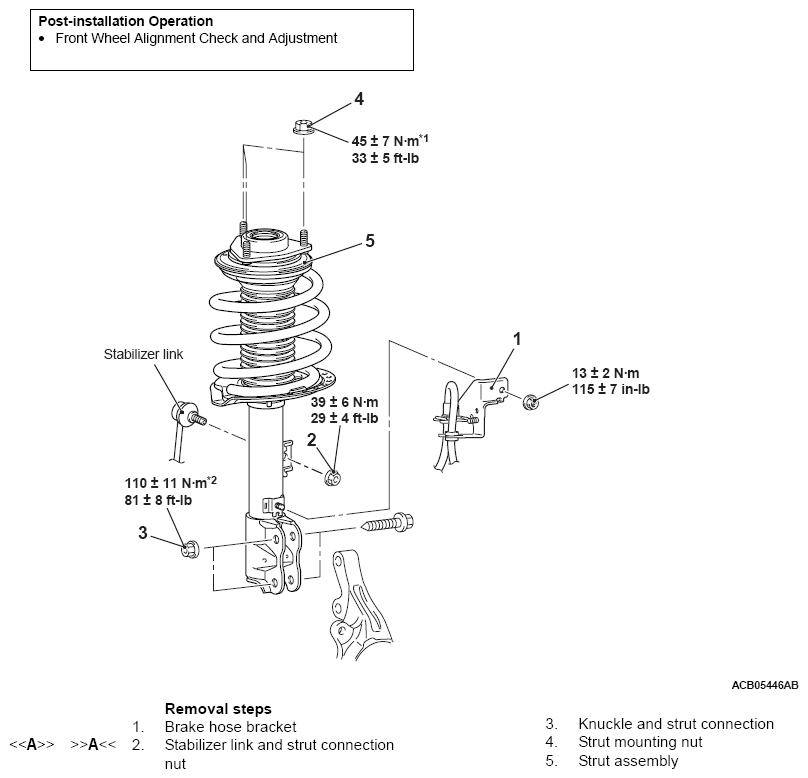

Fig 1: Removing/Installing Strut Assembly With Torque Specification
G09665895Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
