REMOVAL AND INSTALLATION - 3.0L Engine
REMOVAL AND INSTALLATION - 3.0L Engine

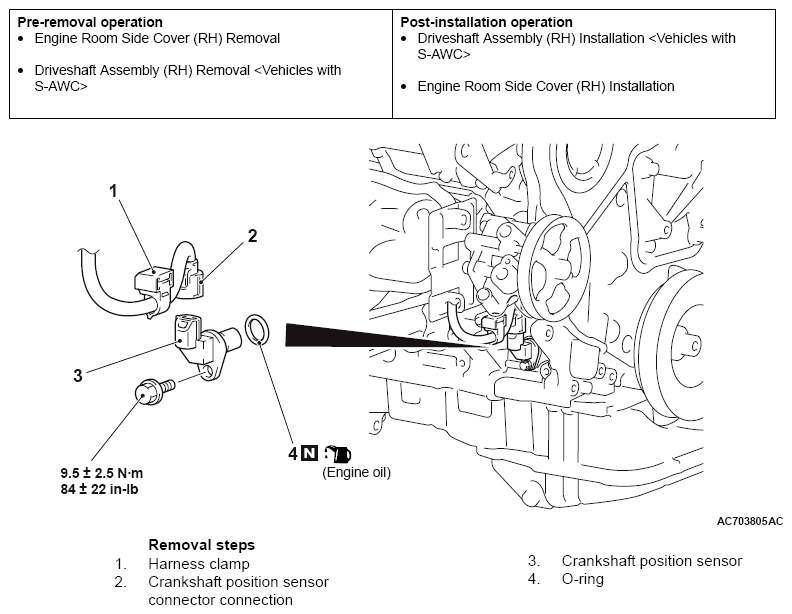

Fig 1: Removing/Installing Crankshaft Position Sensor With Torque Specifications (3.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
