Home >> Mitsubishi >> 2014 >> Outlander ES >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Supply System >> Fuel Tank >> Removal And Installation - AWD >> Notes

Removal And Installation - AWD: Notes

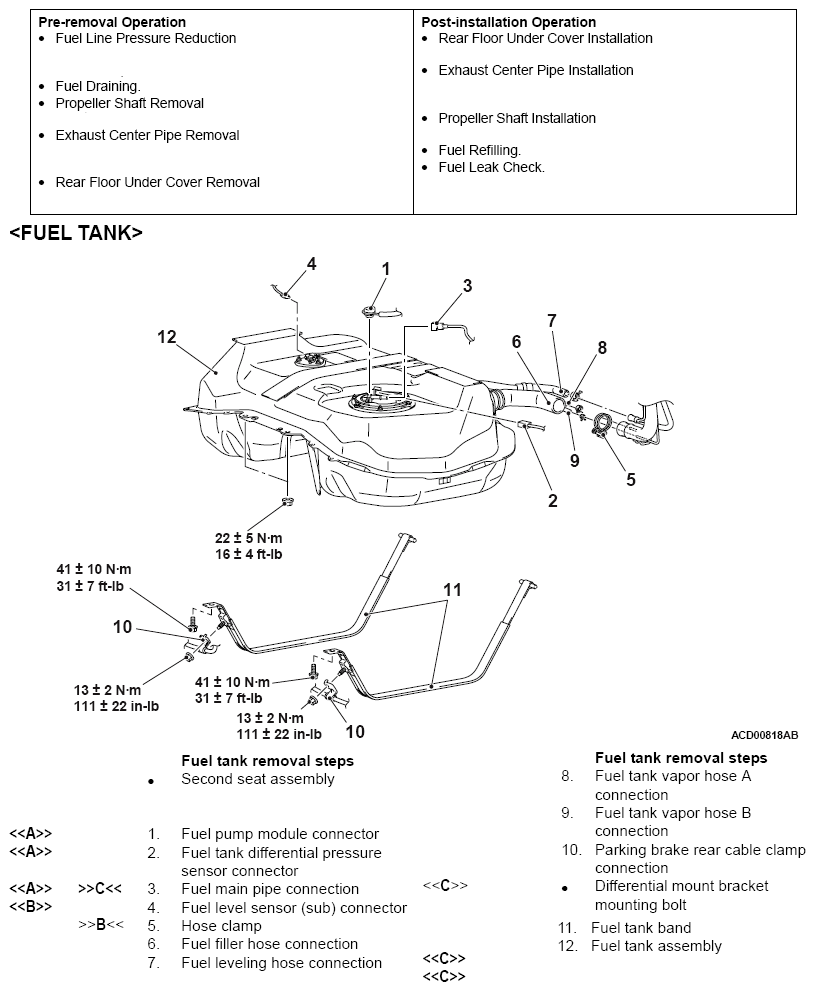

Fig 1: Removing/Installing Fuel Tank With Torque Specification - AWD (1 Of 2)
G09664570Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Removing/Installing Fuel Tank With Torque Specification - AWD (2 Of 2)
G09664571Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
