Starter Relay Check

Battery voltage Terminal number to be connected to tester Continuity test results
Not applied 3 - 4 Open circuit
Connect terminal 2 to battery (+) terminal.
Connect terminal 1 to battery (-) terminal.		 3 - 4 Continuity (less than 2 ohms)

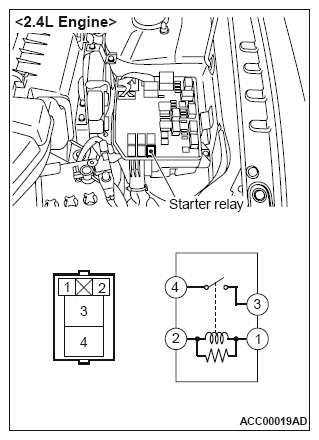

Fig 1: Checking Starter Relay Continuity - 2.4L Engine
G09664747Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

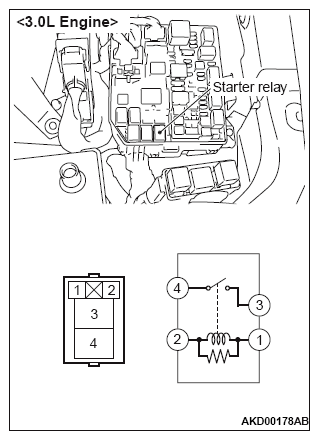

Fig 2: Checking Starter Relay Continuity - 3.0L Engine
G09664748Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
