System Diagram

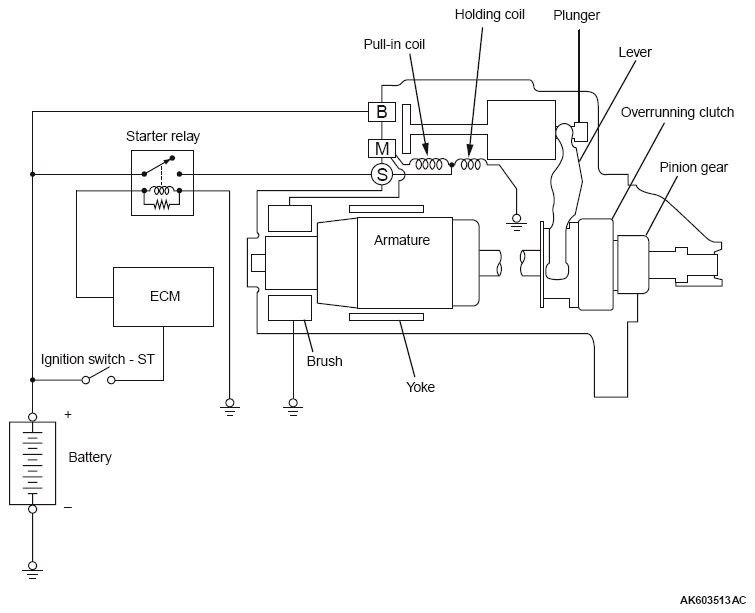

Fig 1: Engine Starting System Diagram

G09664746

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
